Timing Drive Components: Installation

Install the LH and RH camshafts.
- Lubricate the camshaft and camshaft journals with clean engine oil prior to installation.

NOTE: LH shown, RH similar.

Install the LH and RH camshaft bearing caps in their original locations.
- Lubricate the camshaft bearing caps with clean engine oil.
- Position the front camshaft bearing cap.
- Position the remaining camshaft bearing caps.
- Install the bolts loosely.
- Tighten to 10 N.m (89 lb-in) in the sequence shown in Fig 1.

  Fig 1: Identifying Camshaft Bearing Cap Bolt Loosening/Tightening Sequence
  Courtesy of FORD MOTOR CO.

CAUTION: Damage to the VCT phaser sprocket assembly will occur if mishandled or used as a lifting or leveraging device.

NOTE: LH shown, RH similar.

Fig 2: Identifying Camshaft Phaser And Sprocket Assembly Bolt

Courtesy of FORD MOTOR CO.

Install the VCT phaser sprockets and new VCT phaser sprocket bolts finger tight.

CAUTION:

Damage to the camshaft phaser sprocket assembly will occur if mishandled or used as a lifting or leveraging device.
Only use hand tools to remove the camshaft phaser sprocket assembly or damage may occur to the camshaft or camshaft phaser sprocket.

NOTE: LH shown, RH similar.

Using the special tool, tighten the LH and RH camshaft phaser sprocket bolts in 2 stages.
- Stage 1: Tighten to 40 N.m (30 lb-ft).
- Stage 2: Tighten an additional 90 degrees.

  Fig 3: Identifying Special Sprocket Phaser Tool
  Courtesy of FORD MOTOR CO.
Using the special tool, position the crankshaft keyway at the 11 o'clock position.

Fig 4: Positioning Crankshaft With Special Tool (303-448)
Courtesy of FORD MOTOR CO.

CAUTION:

Timing chain procedures must be followed exactly or damage to valves and pistons will result.
Prior to installation, inspect the tensioner-sealing bead for seal integrity. If cracks, tears, separation from the tensioner body or permanent compression of the seal bead is observed, install a new tensioner or engine damage may occur.

Fig 5: Compressing Tensioner Plunger

Courtesy of FORD MOTOR CO.

Compress the tensioner plunger, using a vise.
Install a retaining clip on the tensioner to hold the plunger in during installation.

Fig 6: Identifying Retaining Clip on Tensioner
Courtesy of FORD MOTOR CO.
Remove the tensioner from the vise.
If the copper links are not visible, mark 2 links on one end and 1 link on the other end, and use as timing marks.

Fig 7: Locating Timing Chain Marks
Courtesy of FORD MOTOR CO.
Install the crankshaft sprocket, making sure the flange faces forward.

Fig 8: Identifying Crankshaft Sprocket
Courtesy of FORD MOTOR CO.
Install the 4 bolts and the LH and RH timing chain guides.
- Tighten to 10 N.m (89 lb-in).

  Fig 9: Identifying Timing Chain Guides
  Courtesy of FORD MOTOR CO.
Position the lower end of the LH (inner) timing chain on the crankshaft sprocket, aligning the timing mark on the outer flange of the crankshaft sprocket with the single copper (marked) link on the chain.

Fig 10: Aligning Crankshaft Sprocket Timing Mark And LH Timing Chain Link
Courtesy of FORD MOTOR CO.

NOTE: Make sure the upper half of the timing chain is below the tensioner arm dowel.

Fig 11: Identifying Copper Links Of Timing Chain On VCT Phaser Sprocket

Courtesy of FORD MOTOR CO.

Position the timing chain on the VCT phaser sprocket with the timing mark positioned between the 2 copper (marked) chain links.

NOTE: The LH timing chain tensioner arm has a bump near the dowel hole for identification.

Position the LH timing chain tensioner arm on the dowel pin and install the LH timing chain tensioner and bolts.
- Tighten to 25 N.m (18 lb-ft).

  Fig 12: Identifying LH Timing Chain Tensioner & Tensioner Arm
  Courtesy of FORD MOTOR CO.
Remove the retaining clip from the LH timing chain tensioner.

Fig 13: View Of Retaining Clip AndTiming Chain Tensioner
Courtesy of FORD MOTOR CO.
Position the lower end of the RH (outer) timing chain on the crankshaft sprocket, aligning the timing mark on the sprocket with the single copper (marked) chain link.

Fig 14: Aligning Crankshaft Sprocket Timing Mark And RH Timing Chain Link
Courtesy of FORD MOTOR CO.

NOTE:

The lower half of the timing chain must be positioned above the tensioner arm dowel.

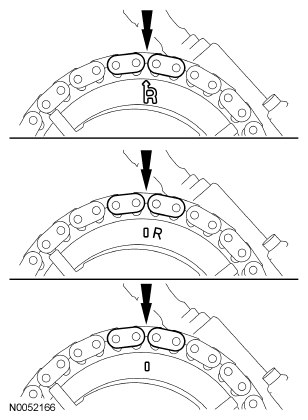

The camshaft phaser and sprocket will be stamped with one of the illustrated timing marks for the RH camshaft.

Fig 15: Identifying Timing Mark Between Copper (Marked) Chain Links

Courtesy of FORD MOTOR CO.

Position the RH timing chain on the VCT phaser sprocket with the timing mark positioned between the 2 copper (marked) chain links.
Position the RH timing chain tensioner arm on the dowel pin and install the RH timing chain tensioner and bolts.
- Tighten to 25 N.m (18 lb-ft).

  Fig 16: Identifying RH Timing Chain Tensioner, Tensioner Arm And Bolts
  Courtesy of FORD MOTOR CO.
Remove the retaining clip from the RH timing chain tensioner.

Fig 17: View Of Retaining Clip AndTiming Chain Tensioner
Courtesy of FORD MOTOR CO.

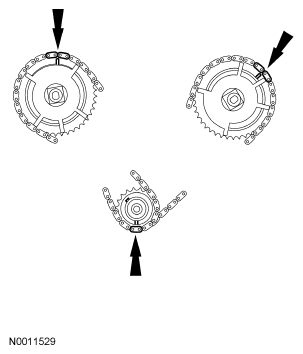

As a post-check, verify correct alignment of all timing marks.

Fig 18: Locating Alignment Of Timing Marks
Courtesy of FORD MOTOR CO.
Install the crankshaft sensor ring on the crankshaft.

Fig 19: View Of Crankshaft Sensor Ring At Crankshaft
Courtesy of FORD MOTOR CO.

CAUTION: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into the original locations. Failure to follow these instructions may result in engine damage.

CAUTION: Do not allow the valve keepers to fall off the valve or the valve may drop into the cylinder. If a valve drops into the cylinder, the cylinder head must be removed. For additional information, refer to Cylinder Head .

NOTE: It may be necessary to push the valve down while compressing the spring.

Using the special tool, install all of the camshaft roller followers.
- Lubricate the camshaft roller followers with clean engine oil prior to installation.

  Fig 20: Compressing Spring Using Special Tool
  Courtesy of FORD MOTOR CO.
Install the engine front cover. For additional information, refer to ENGINE FRONT COVER .
