Throttle Body: Notes

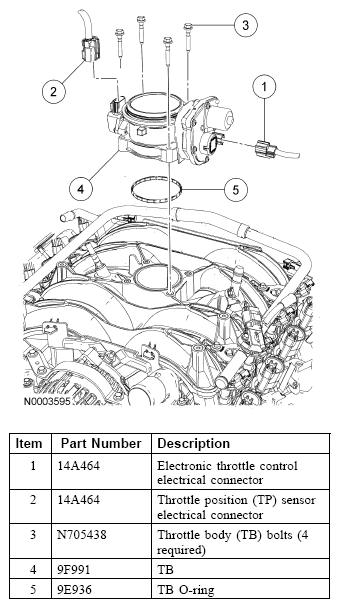

Fig 1: Identifying Throttle Body Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
