Safety Belt Retractor - Front: Notes

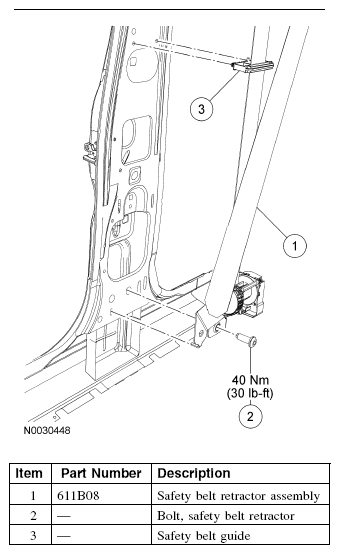

Fig 1: Safety Belt Retractor Replacement Components -- Front With Torque Specifications
G04631302Courtesy of FORD MOTOR CO.
