Pinpoint Tests: Notes

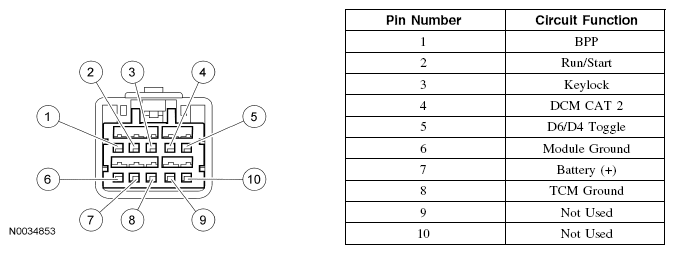

PIN-OUT TABLE
| Pin to Pin | Function | Resistance Reading | Shifter Lever Position | |
|---|---|---|---|---|
| 5 | 8 | D6/D4 Switch | Open (greater than 100K ohms) | D6 |
| 5 | 8 | D6/D4 Switch | Closed (less than 50 ohms) | P, R, N, D4, 3, 2, 1 |
| 3 | 6 | Park Detect Switch | Open (greater than 100 K ohms) | P with knob release button not pressed (released) |
| 3 | 6 | Park Detect Switch | Closed (less than 50 ohms) | R, N, D6, D4, 3, 2, 1 |
| 2 | 6 | IGN/RUN/Start to GND | Approx. 1.0K ohm | Any |
