Brake Shift Interlock Actuator - Column Shift: Notes

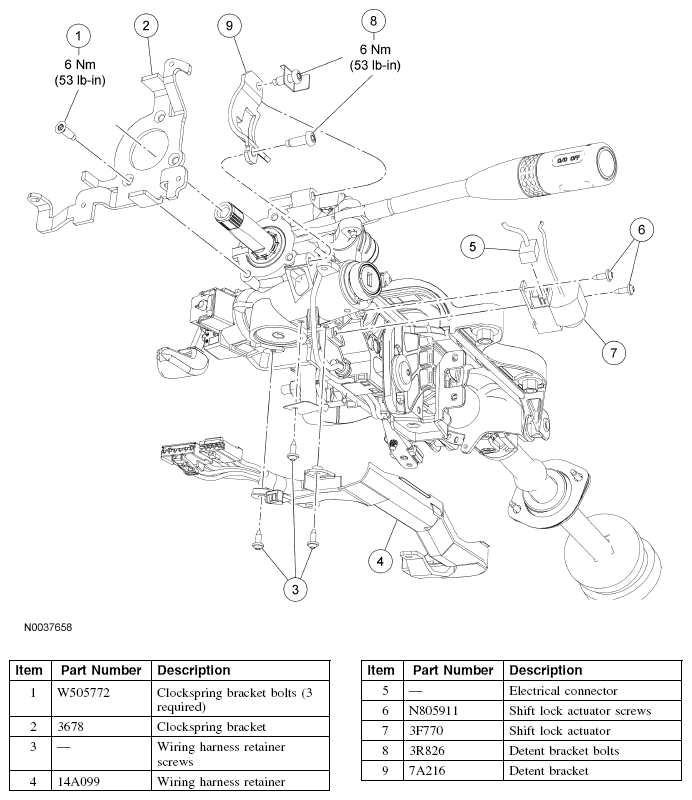

Fig 1: Brake Shift Interlock Actuator Replacement Components -- Column Shift With Torque Specifications
G04628871Courtesy of FORD MOTOR CO.
