Exhaust System

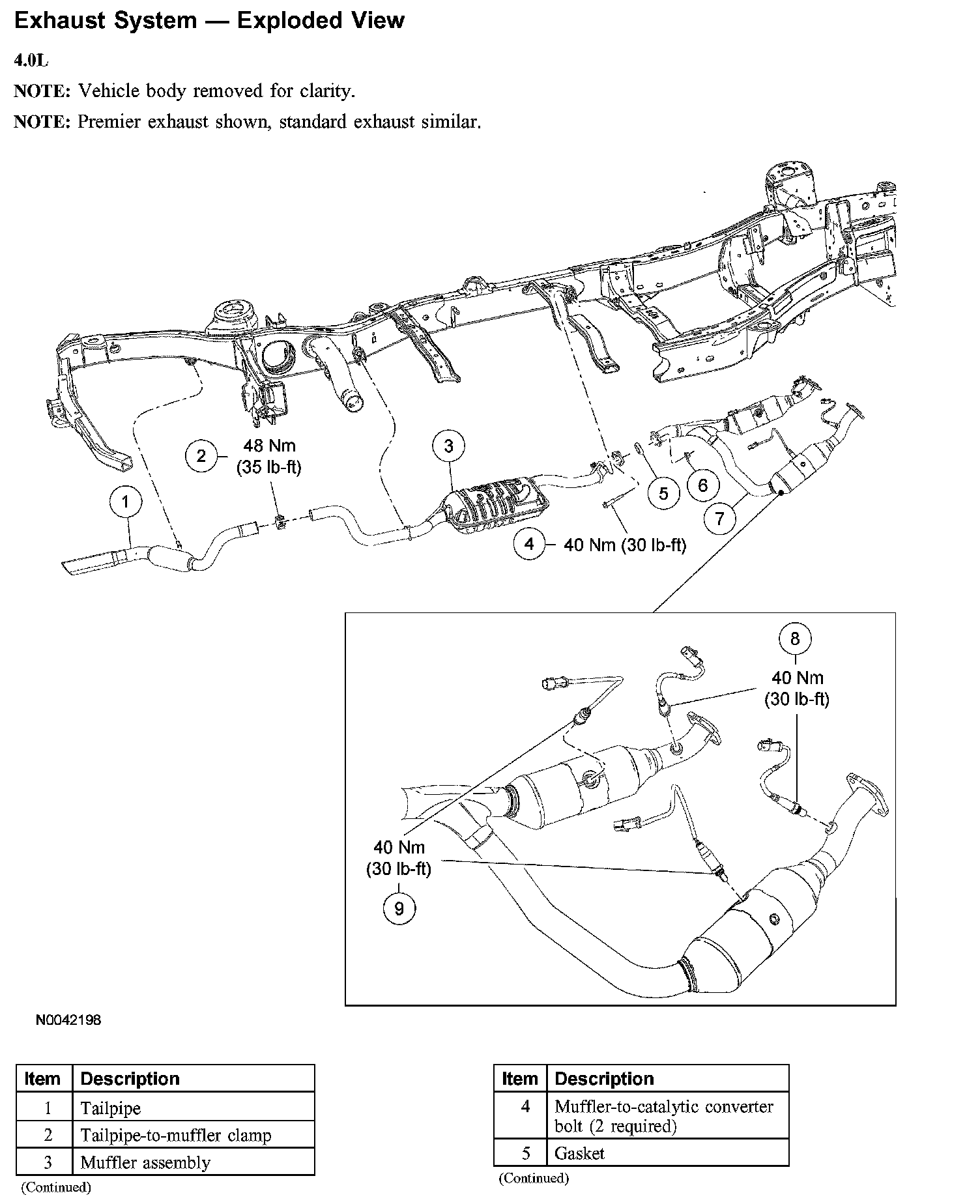

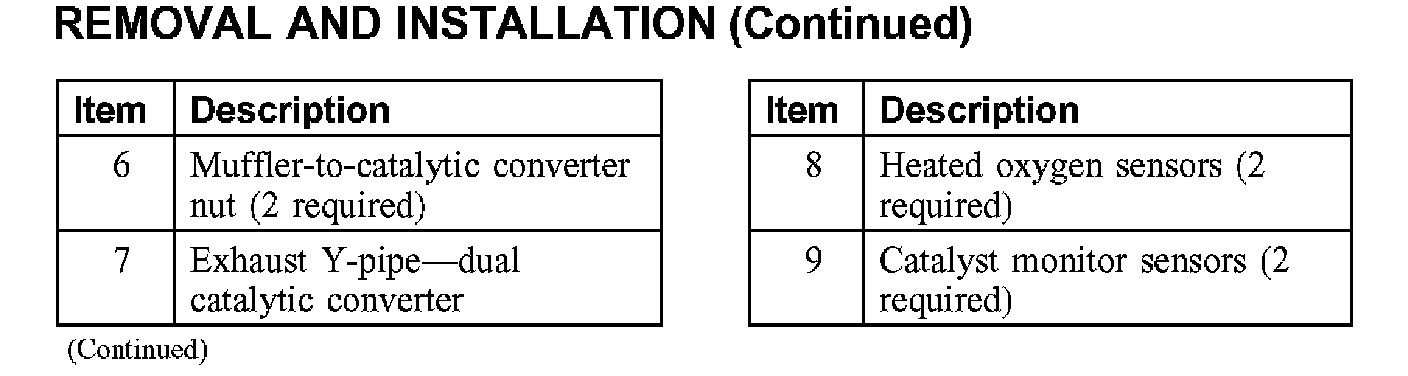

Exhaust System - Exploded View
4.0L

Exhaust System - Exploded View:




Exhaust System - Exploded View:





NOTE: Vehicle body removed for clarity.

NOTE: Premier exhaust shown, standard exhaust similar.
