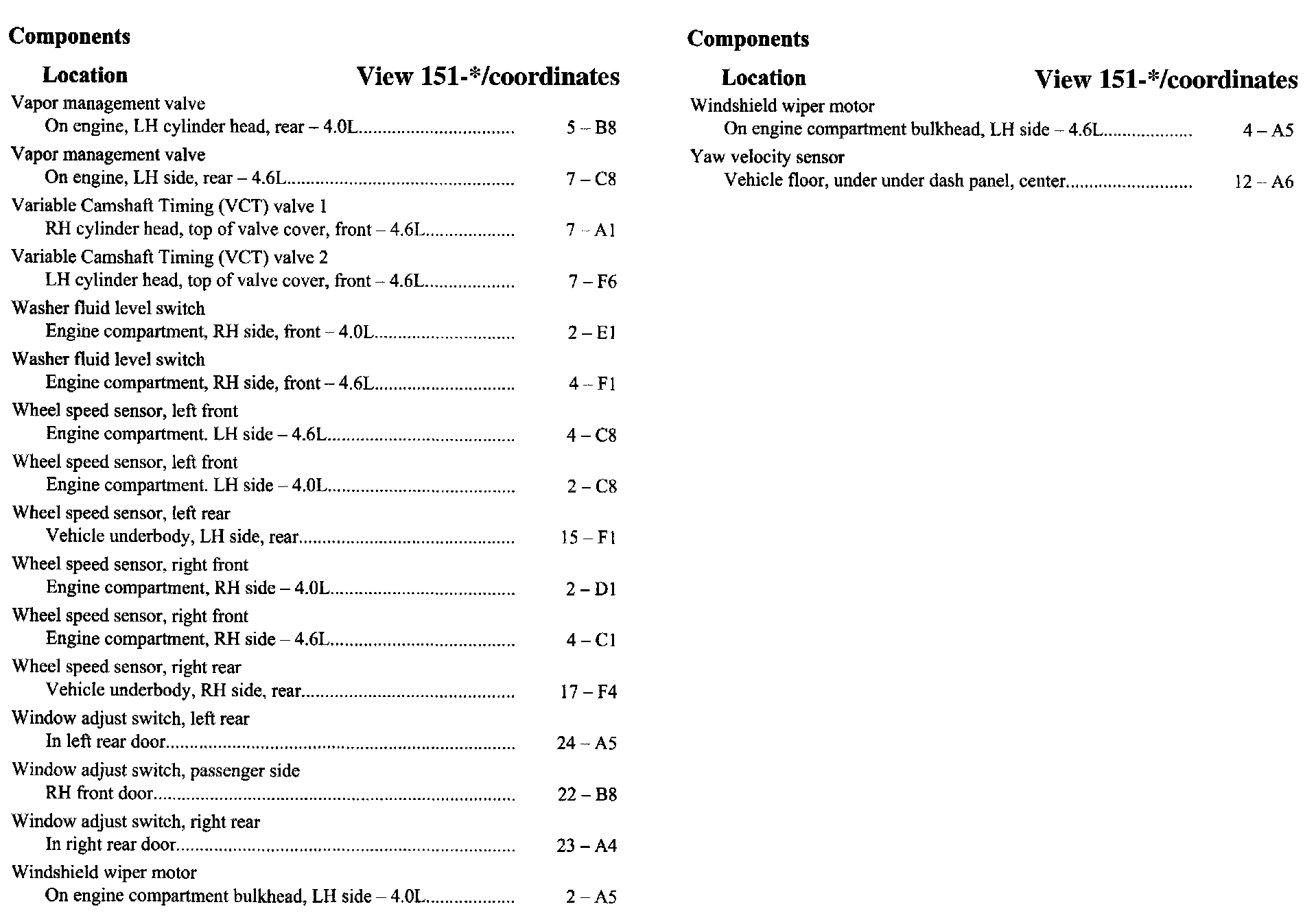

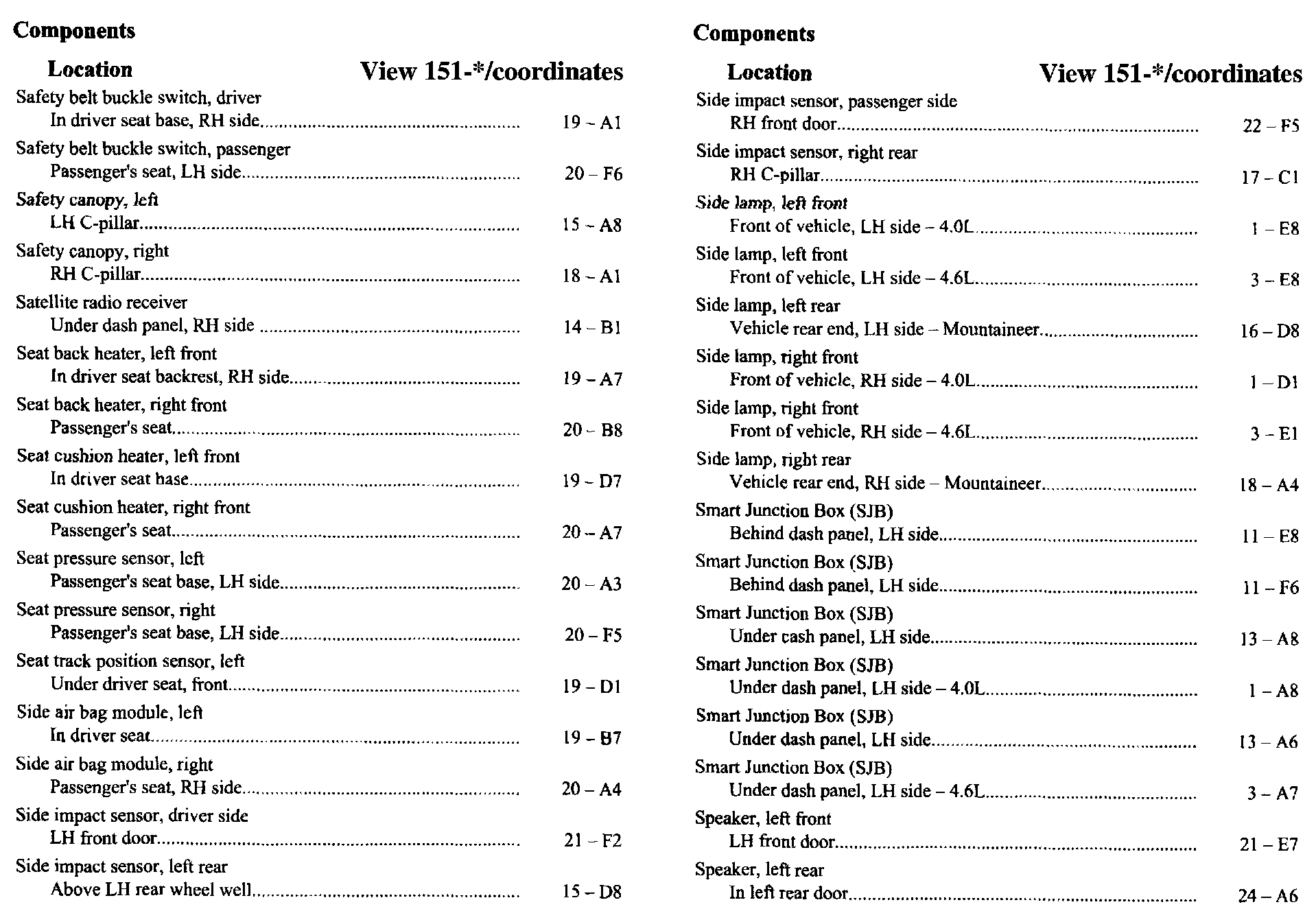

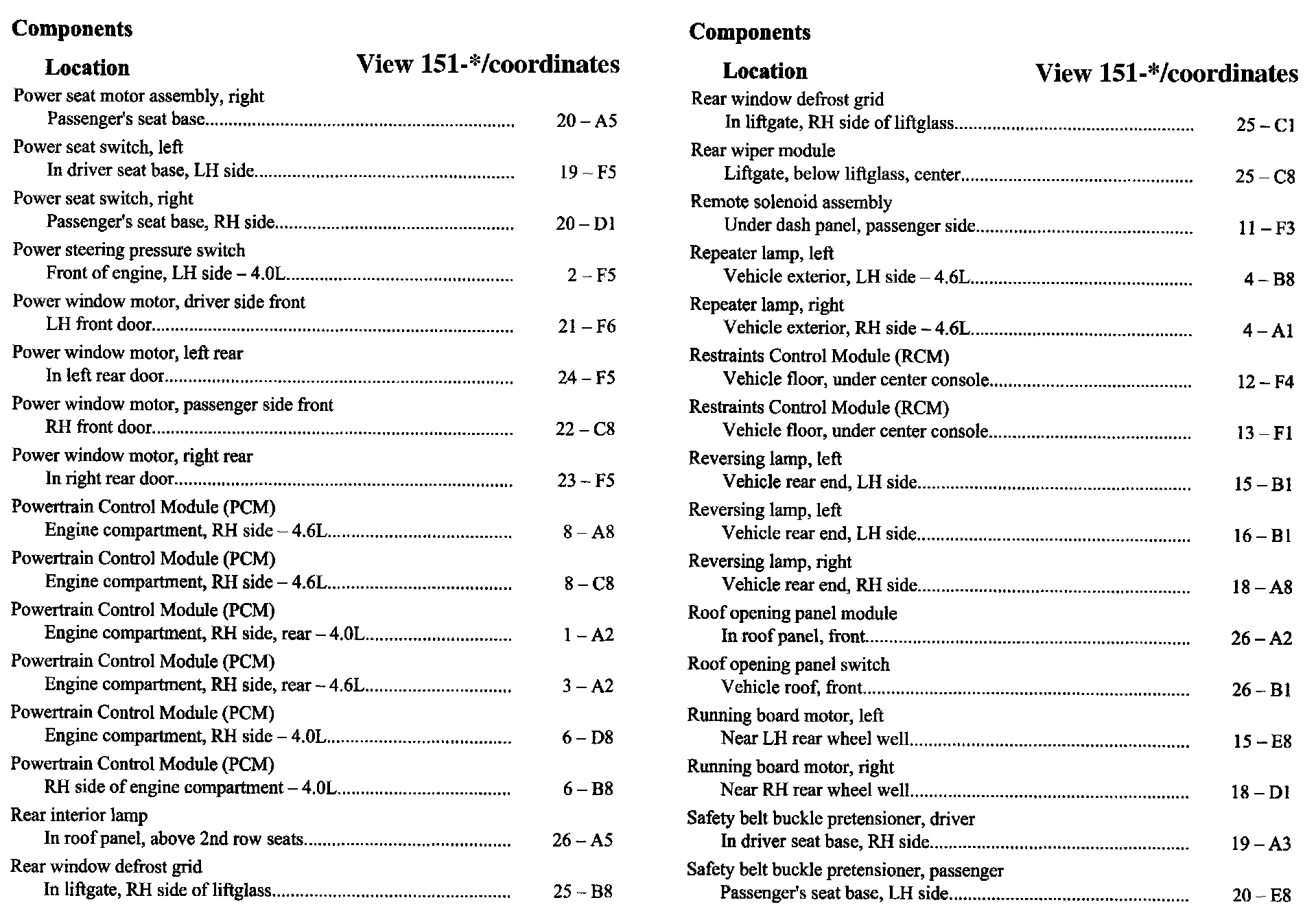

Component Location Index

PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

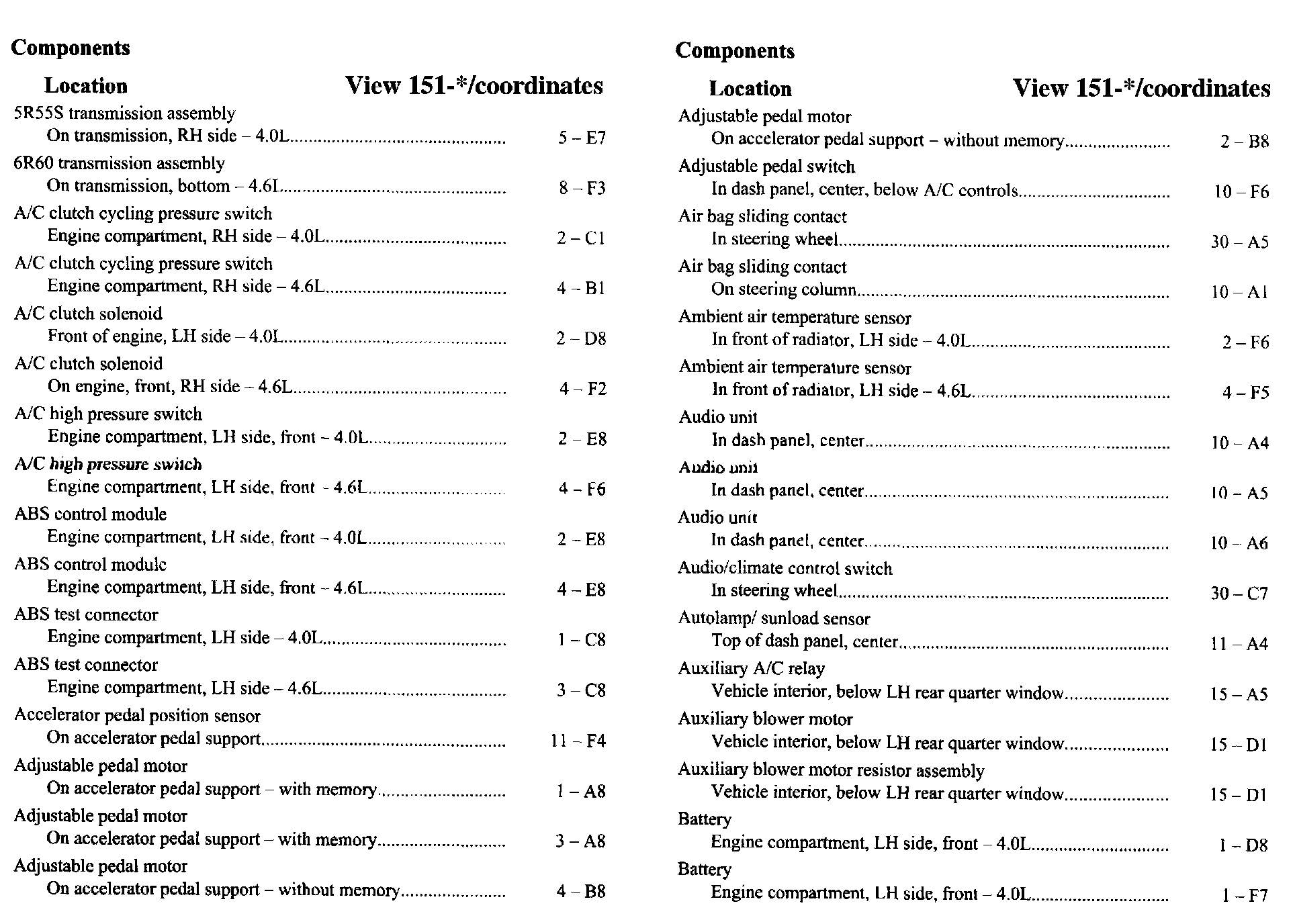

5R-Ba:

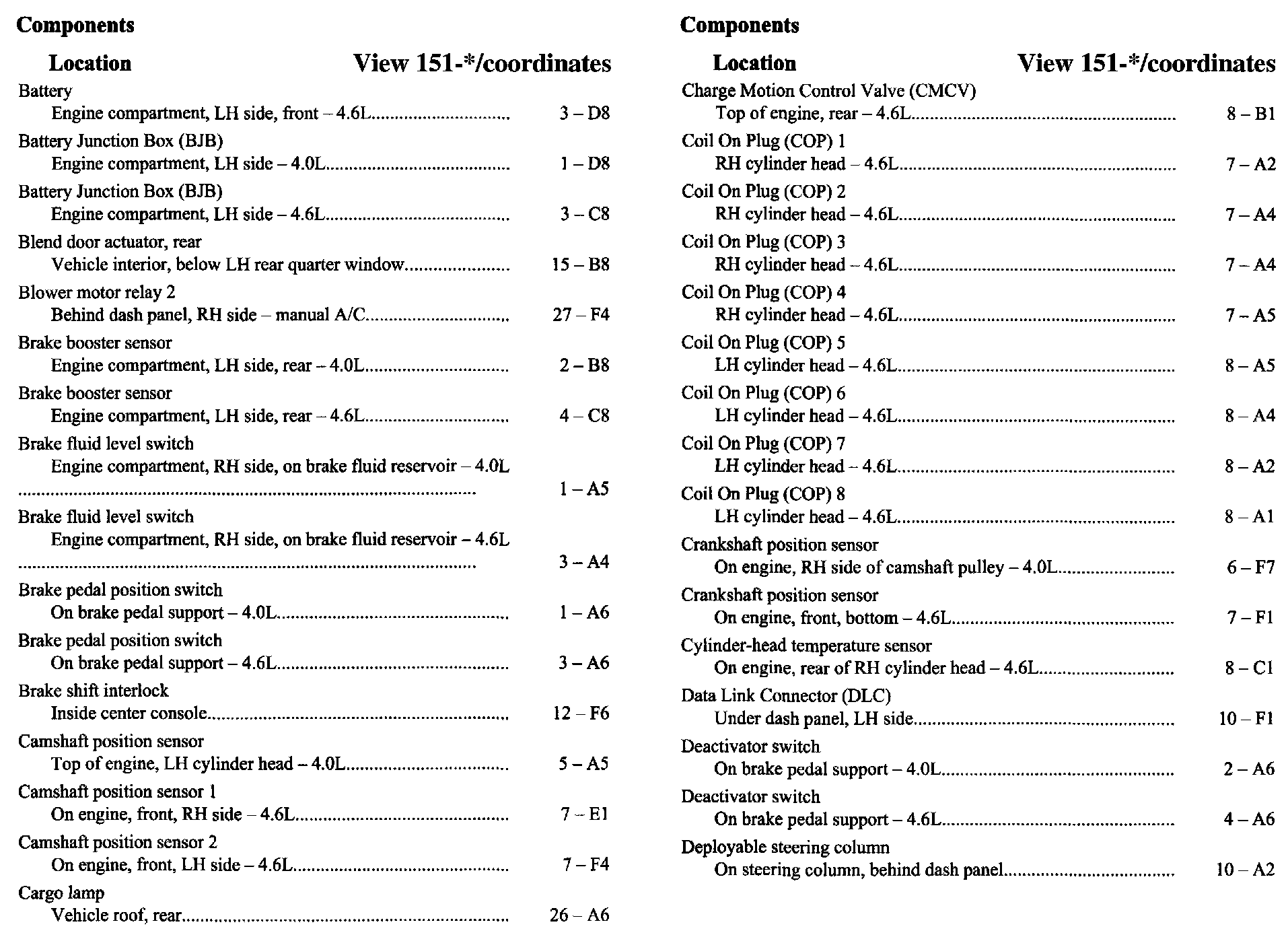

Ba-De:

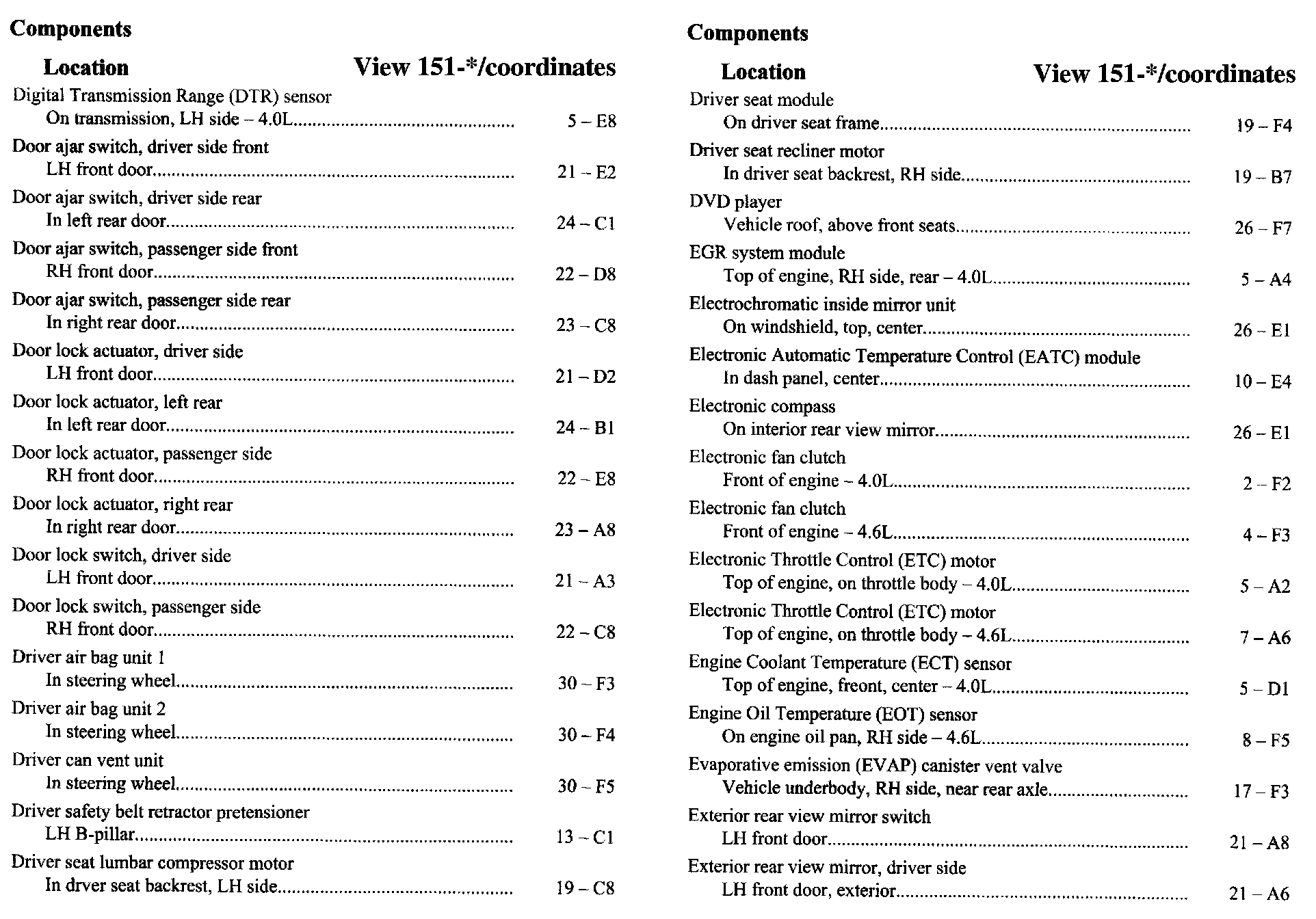

Di-Ex:

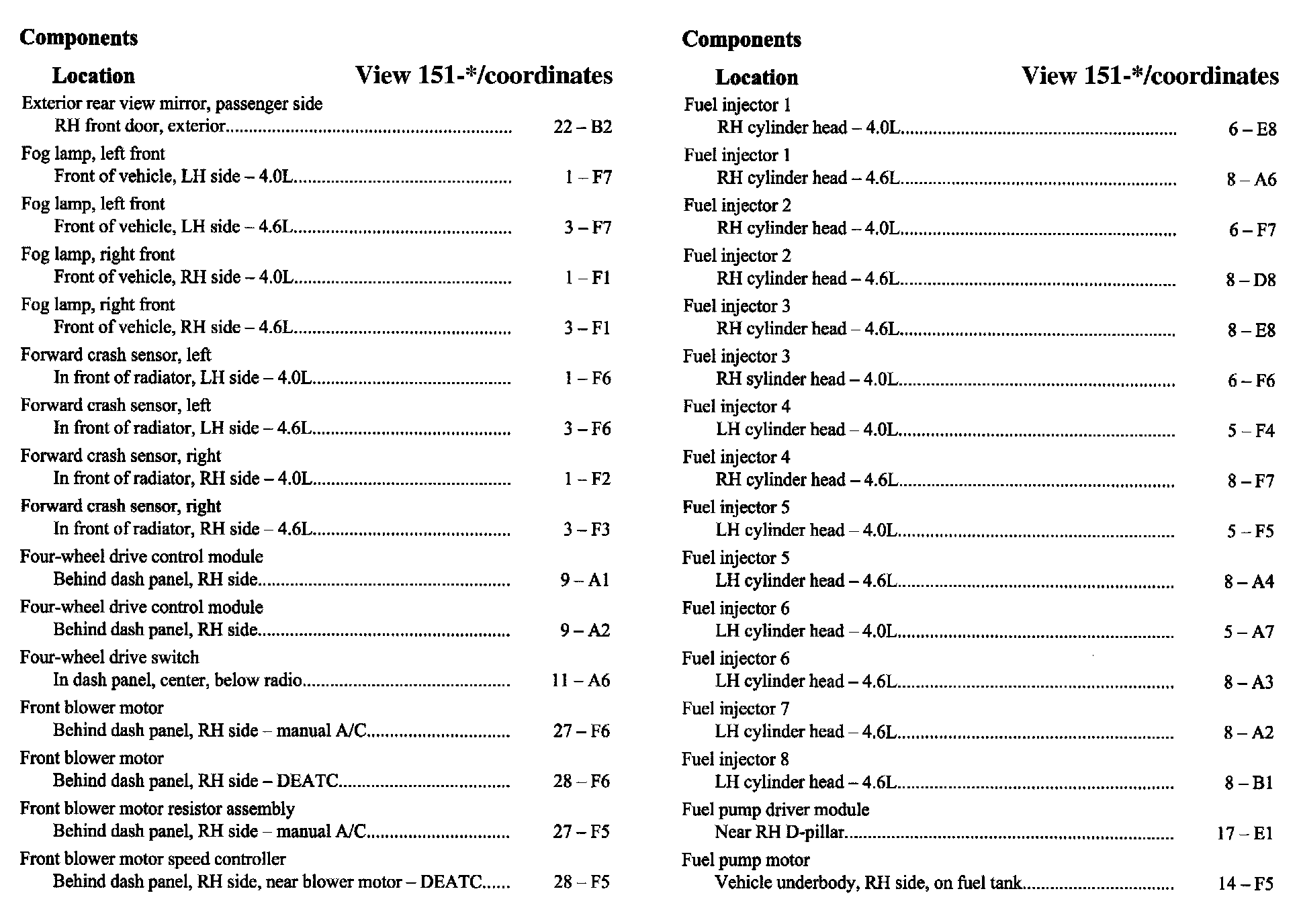

Ex-Fu:

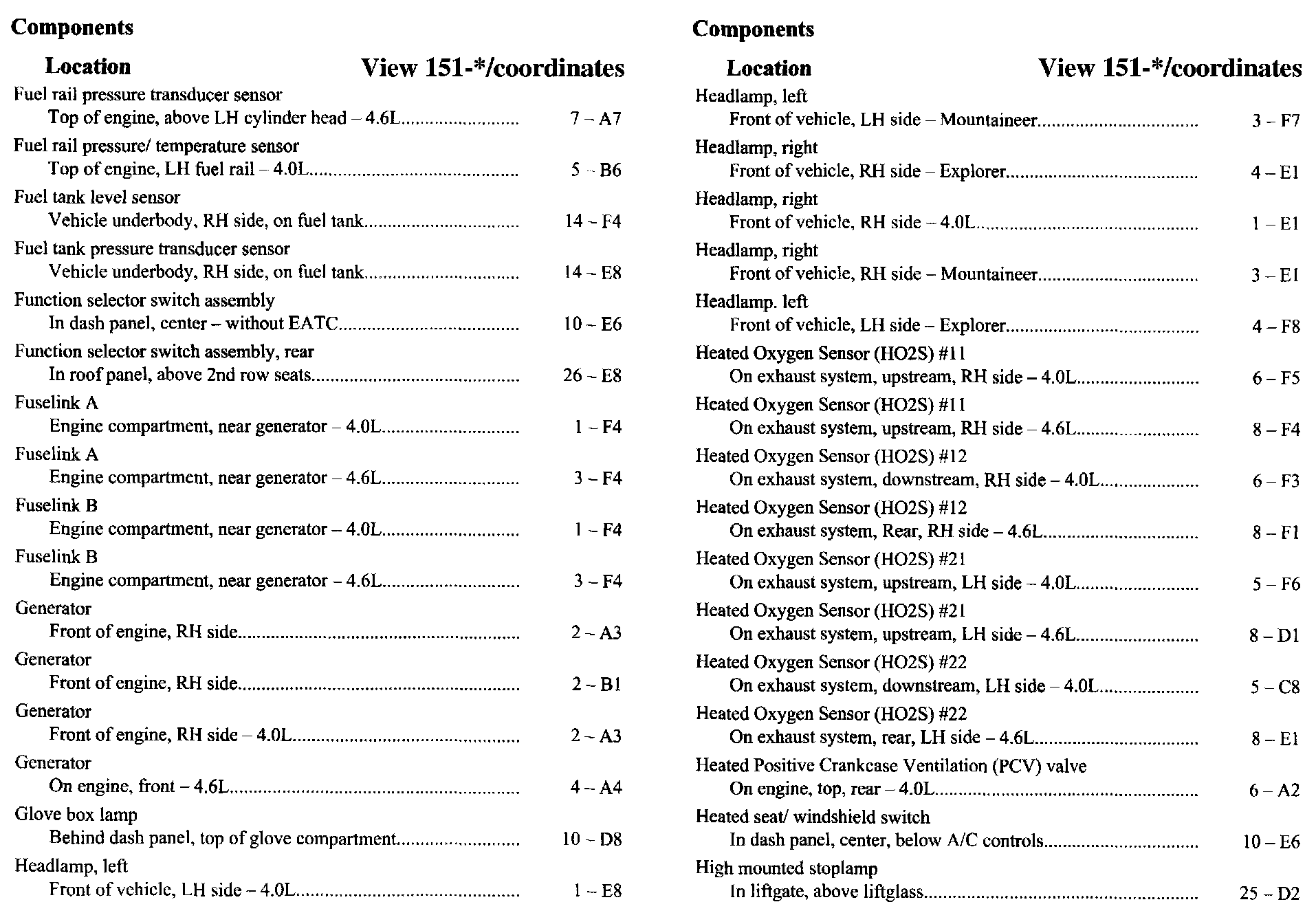

Fu-Hi:

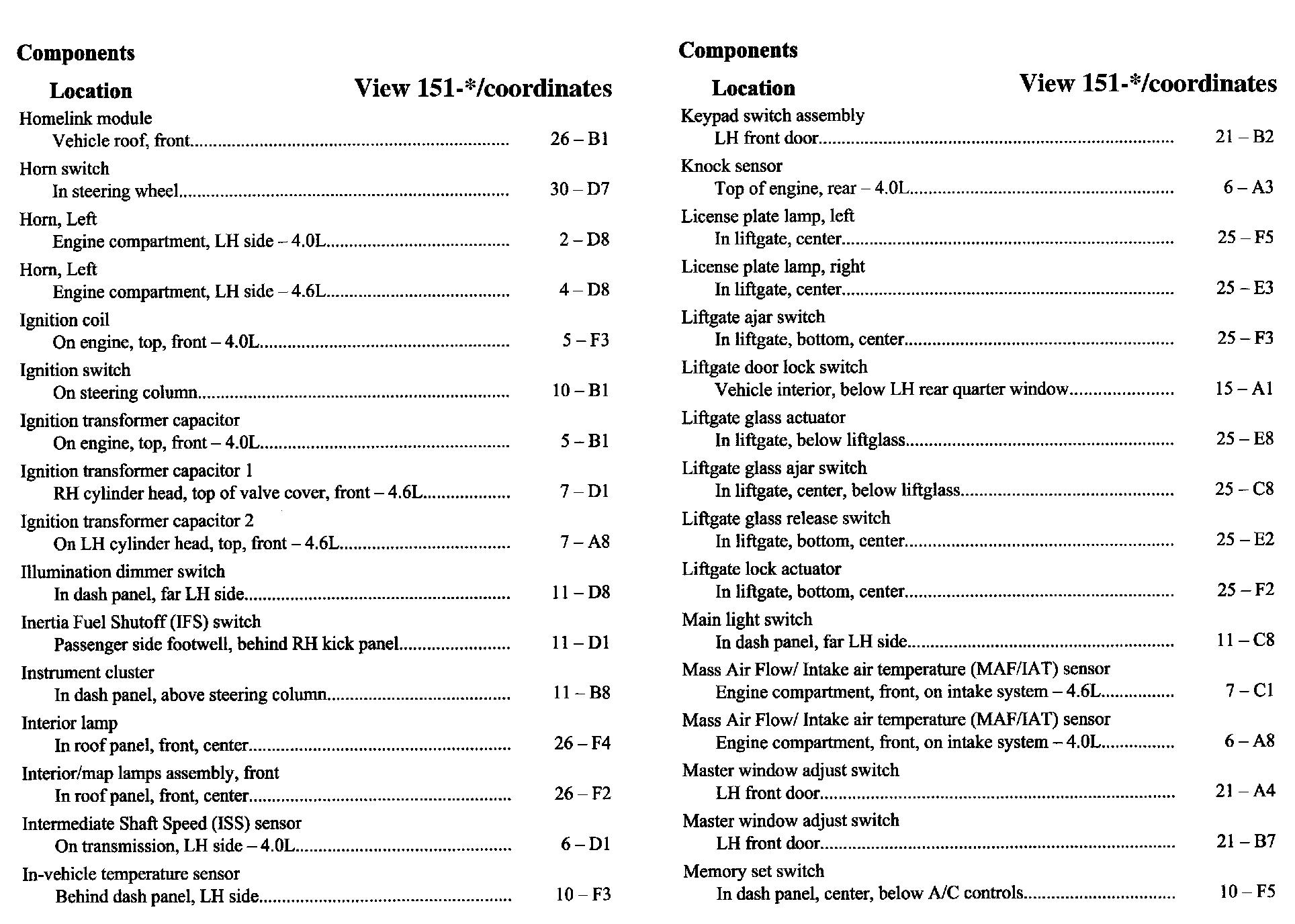

Ho-Me:

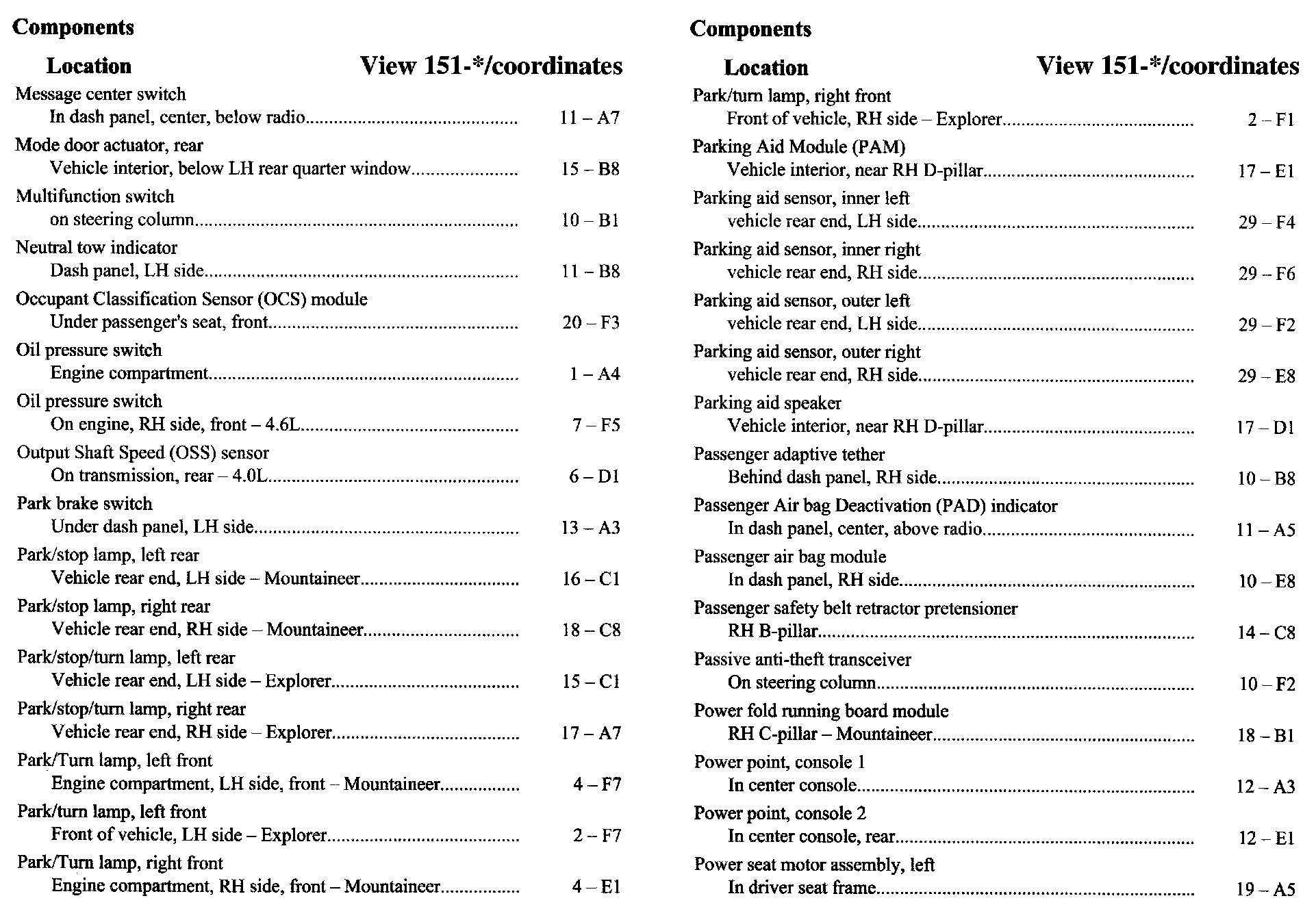

Me-Po:

Po-Sa:

Sa-Sp:

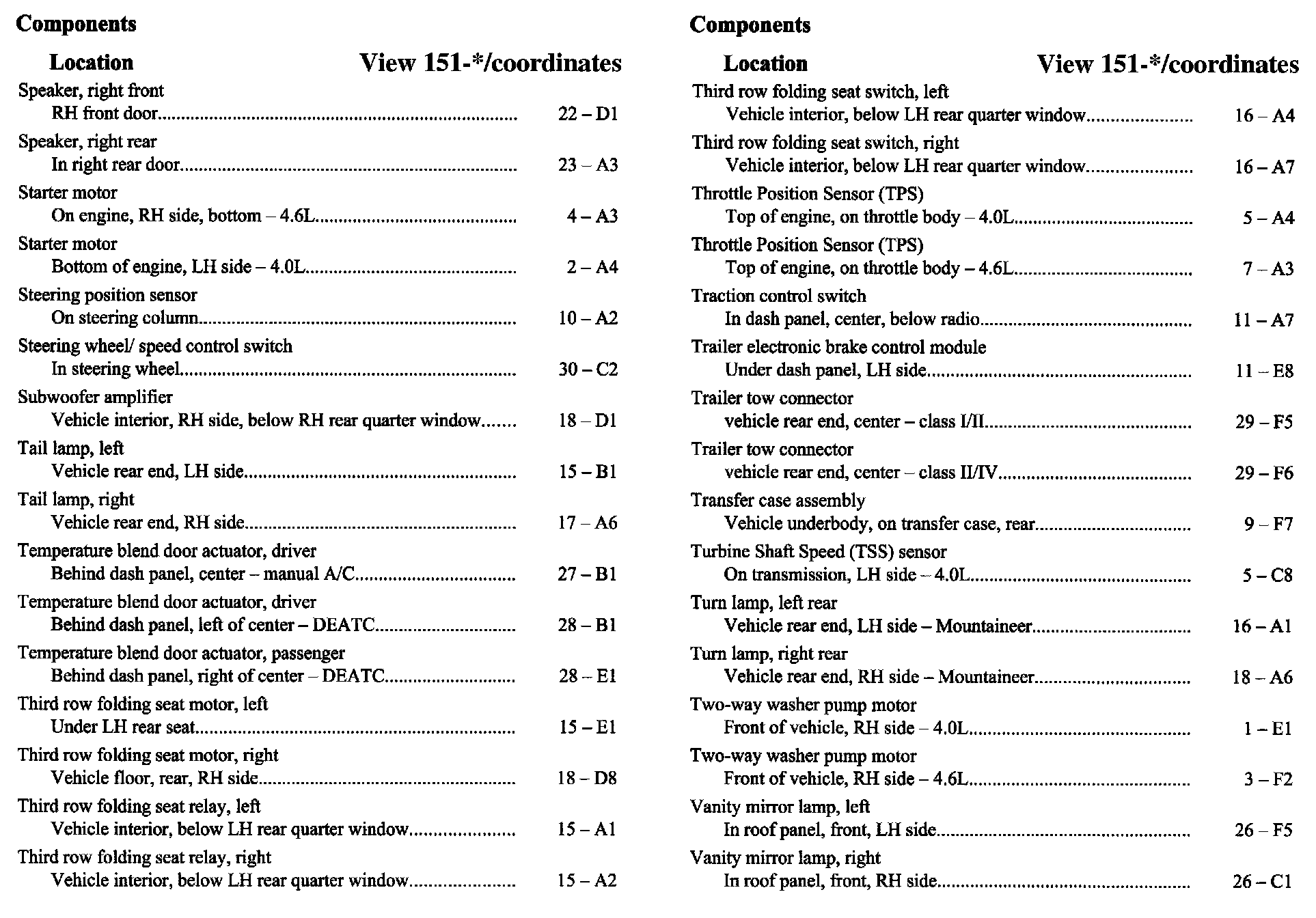

Sp-Va:

Va-Ya:
