Exhaust System

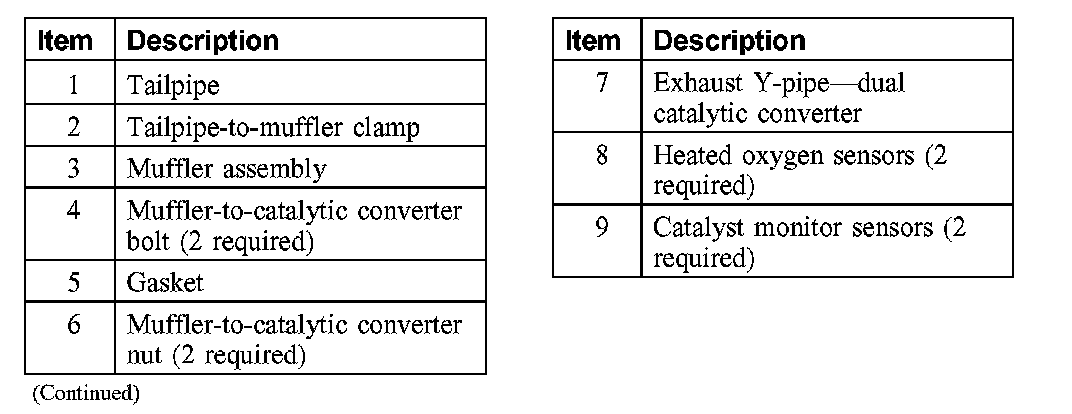

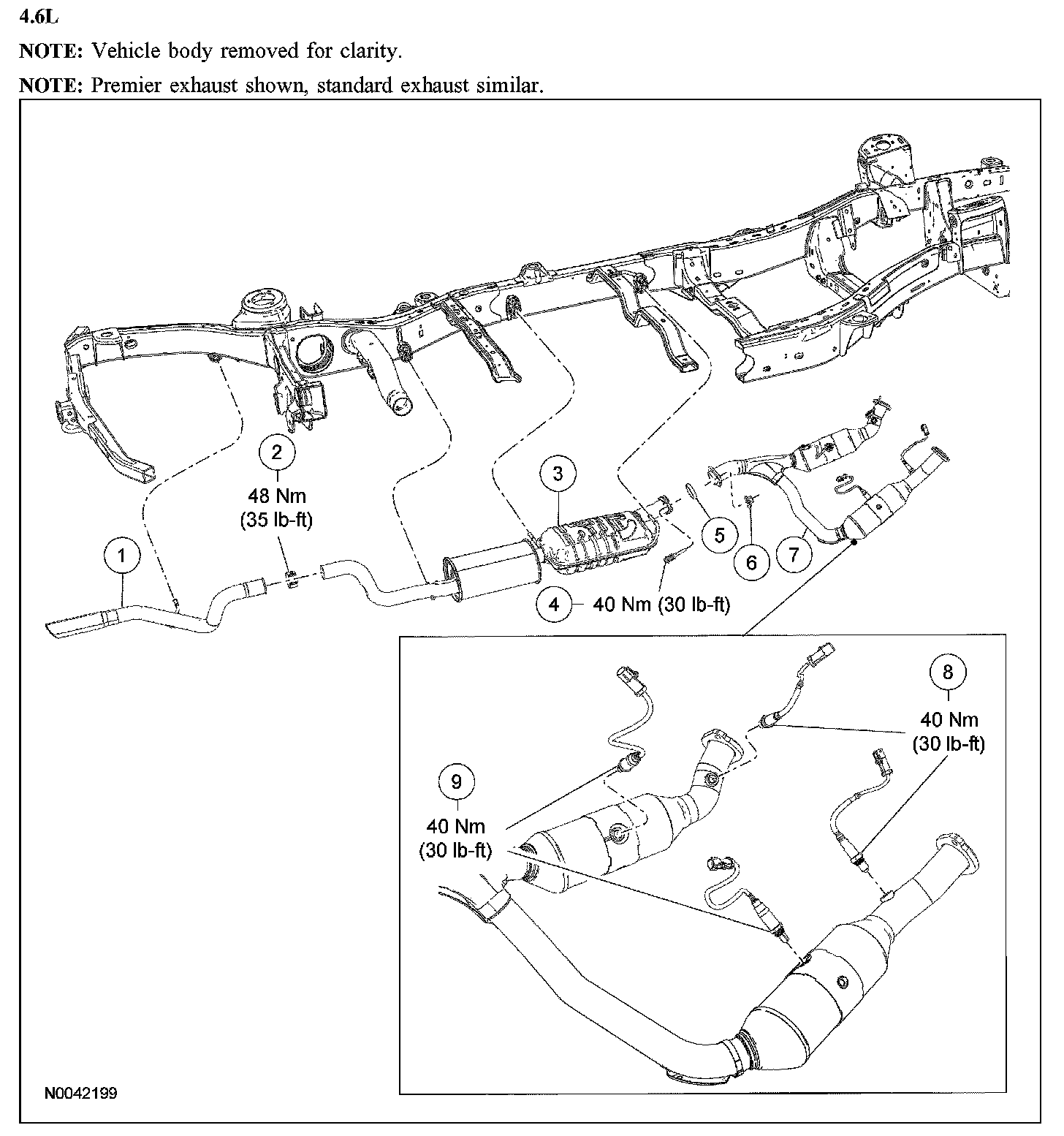

Exhaust System - Exploded View
4.6L

4.6L:








NOTE: Vehicle body removed for clarity.

NOTE: Premier exhaust shown, standard exhaust similar.
