System Specifications

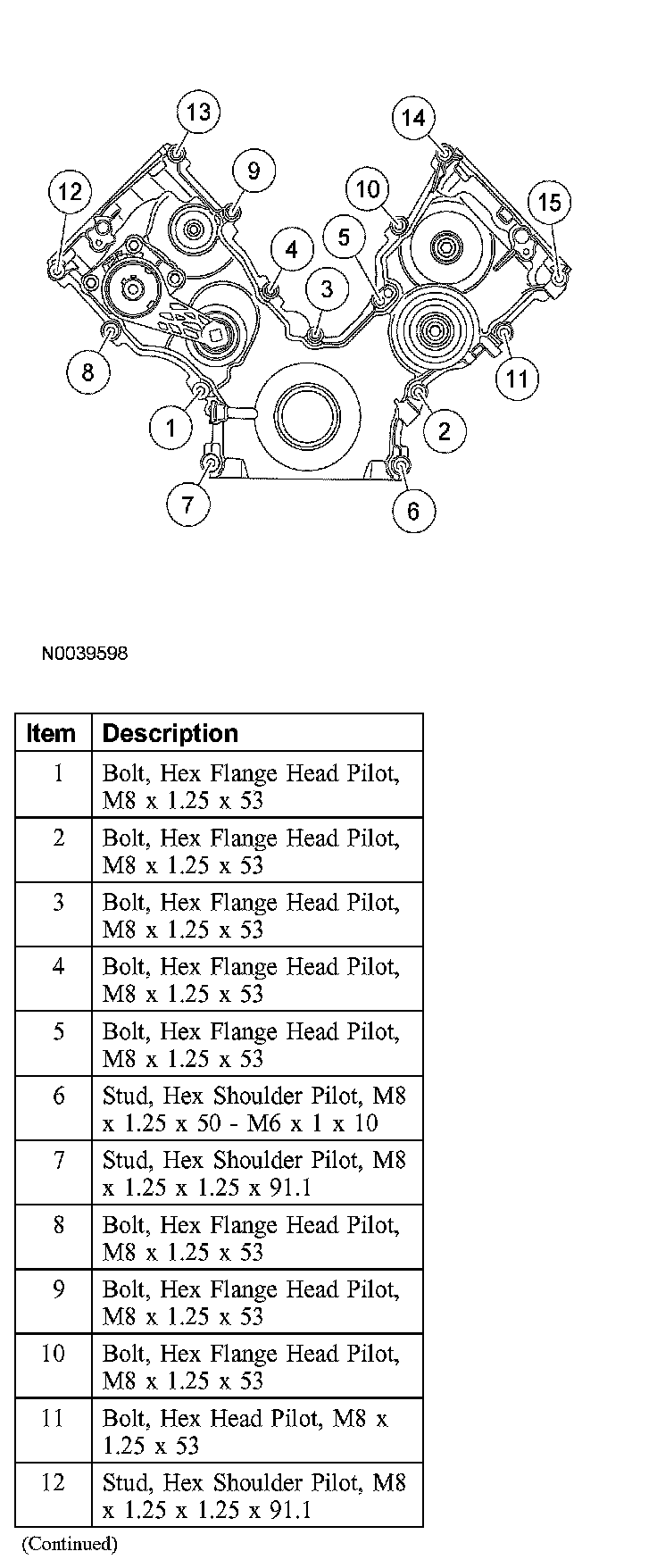

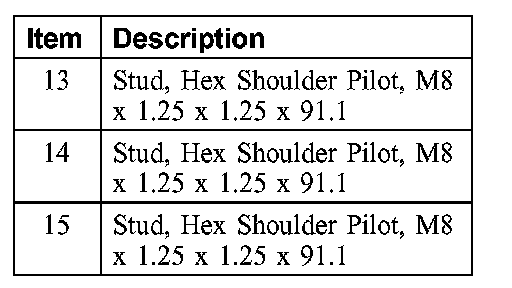

Engine front cover bolts 25 Nm (18 ft. lbs.)

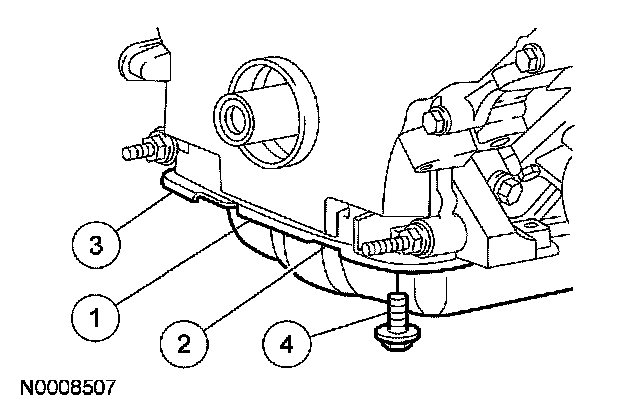

Oil pan-to-engine front cover bolts





Stage 1: 20 Nm (15 ft. lbs.)
Stage 2: additional 60 degrees

Crankshaft Pulley Bolt
Stage 1: 90 Nm (66 ft. lbs.)
Stage 2: Loosen 360 degrees.
Stage 3: 50 Nm (37 ft. lbs.)
Stage 4: additional 90 degrees
