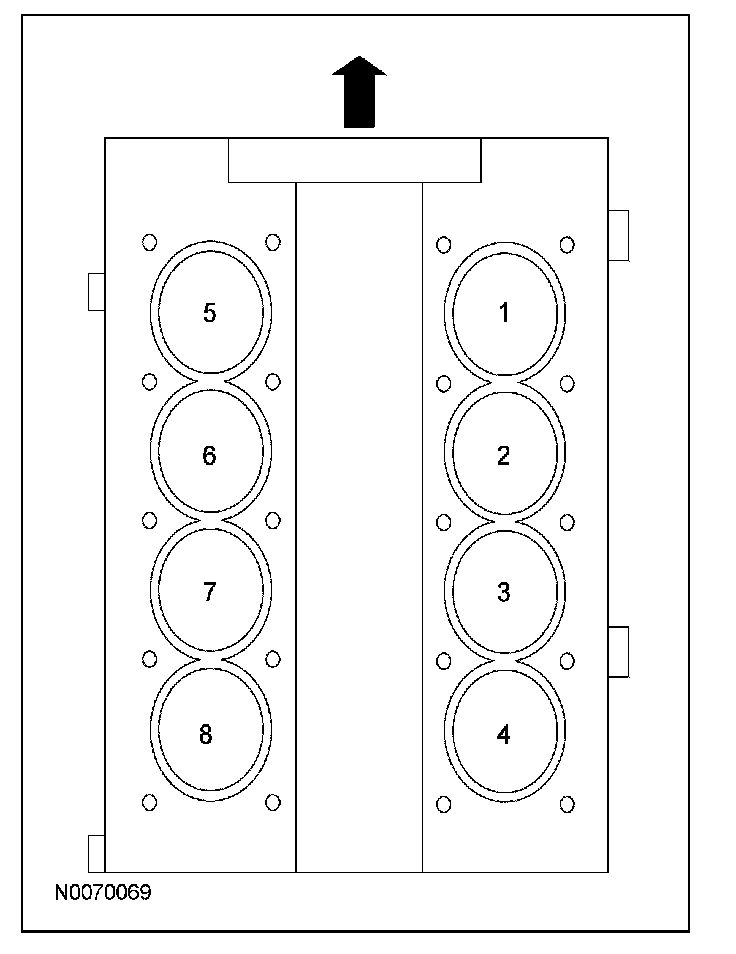

Firing Order

Firing order 1-3-7-2-6-5-4-8
Eight separate ignition coils:
- are mounted directly above each spark plug.
- are controlled by the powertrain control module (PCM) for correct firing sequence.
