Diagnostic Trouble Code Descriptions

DIAGNOSTIC TROUBLE CODE CHART

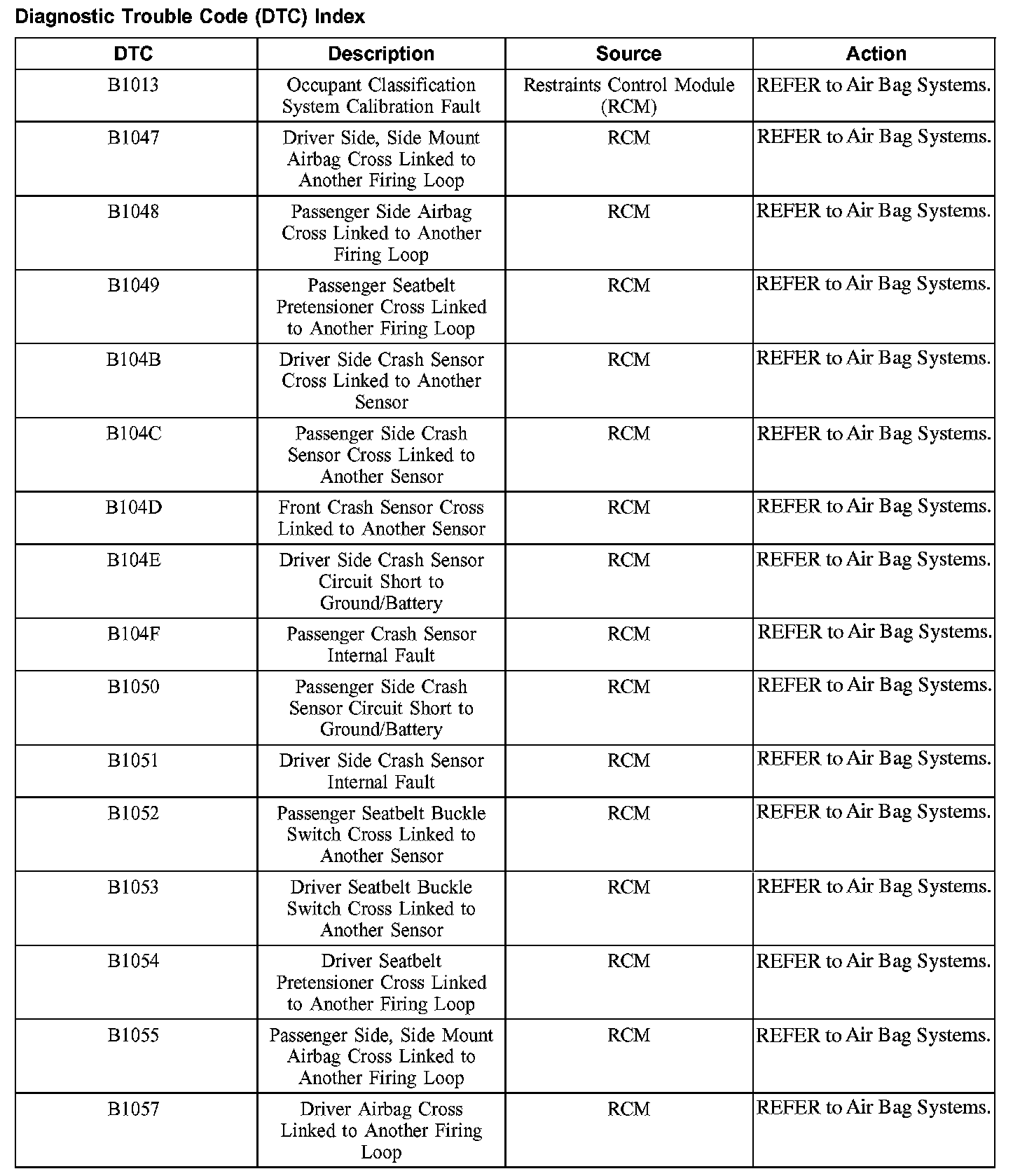

B1013-B1057:

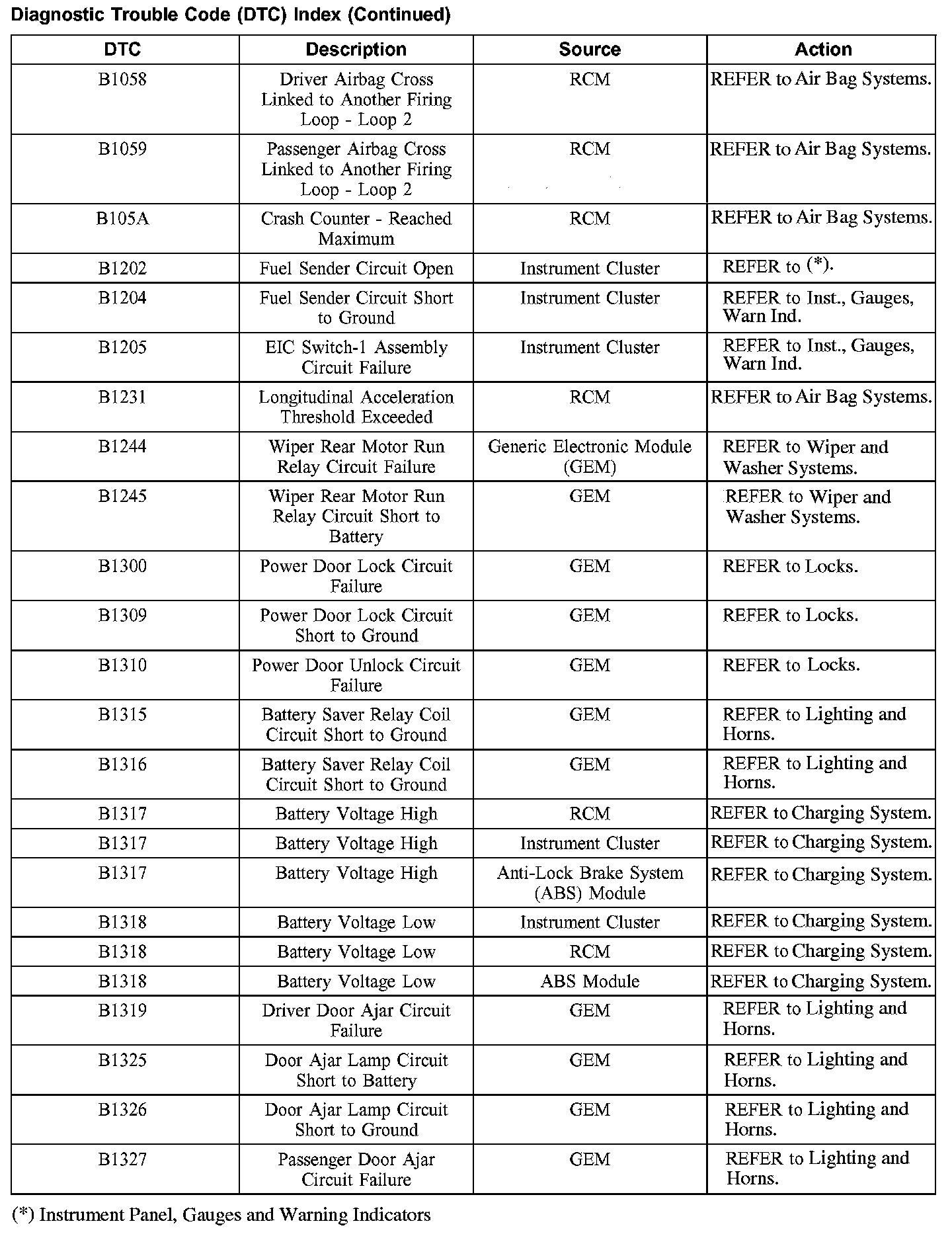

B1058-B1327:

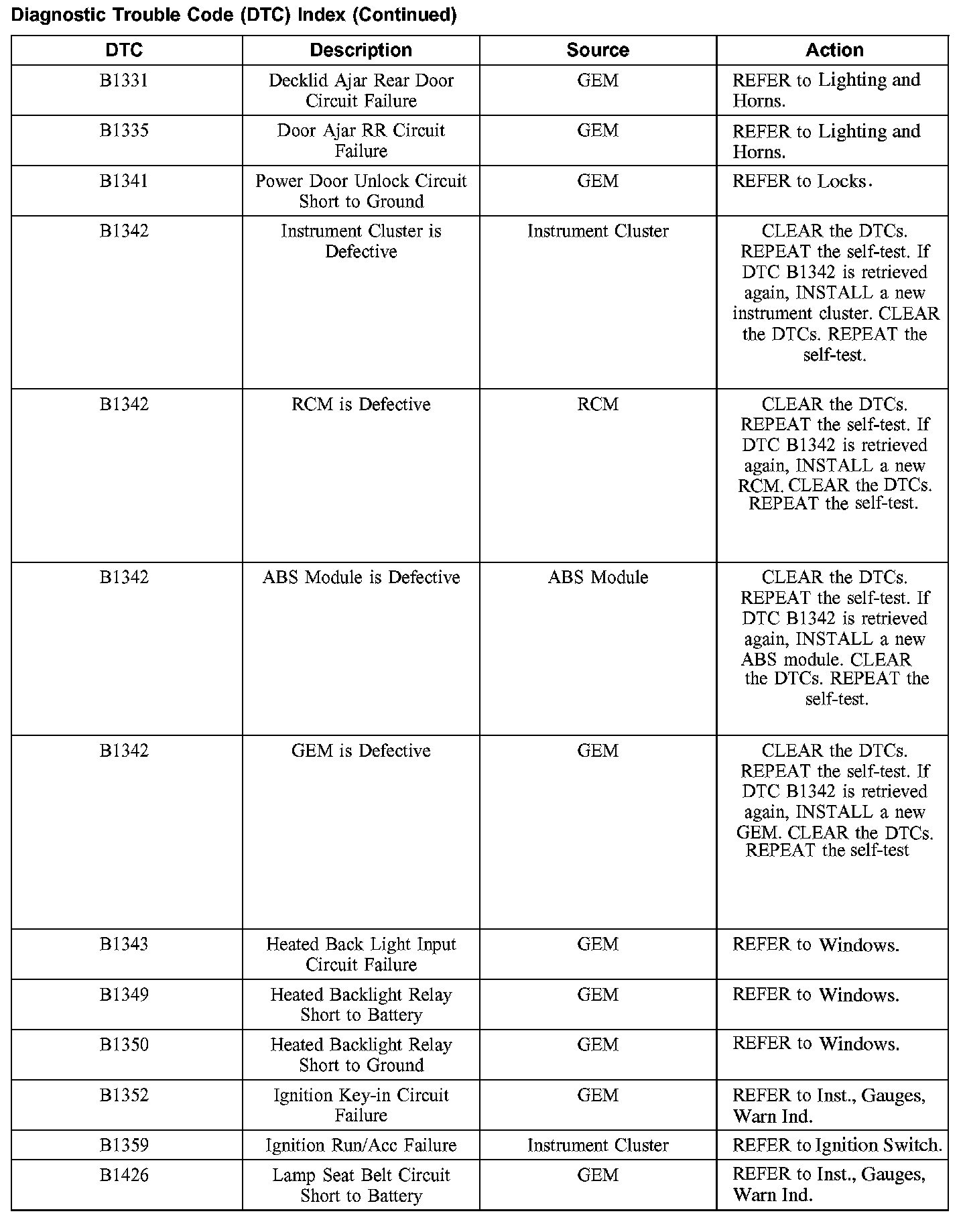

B1331-B1426:

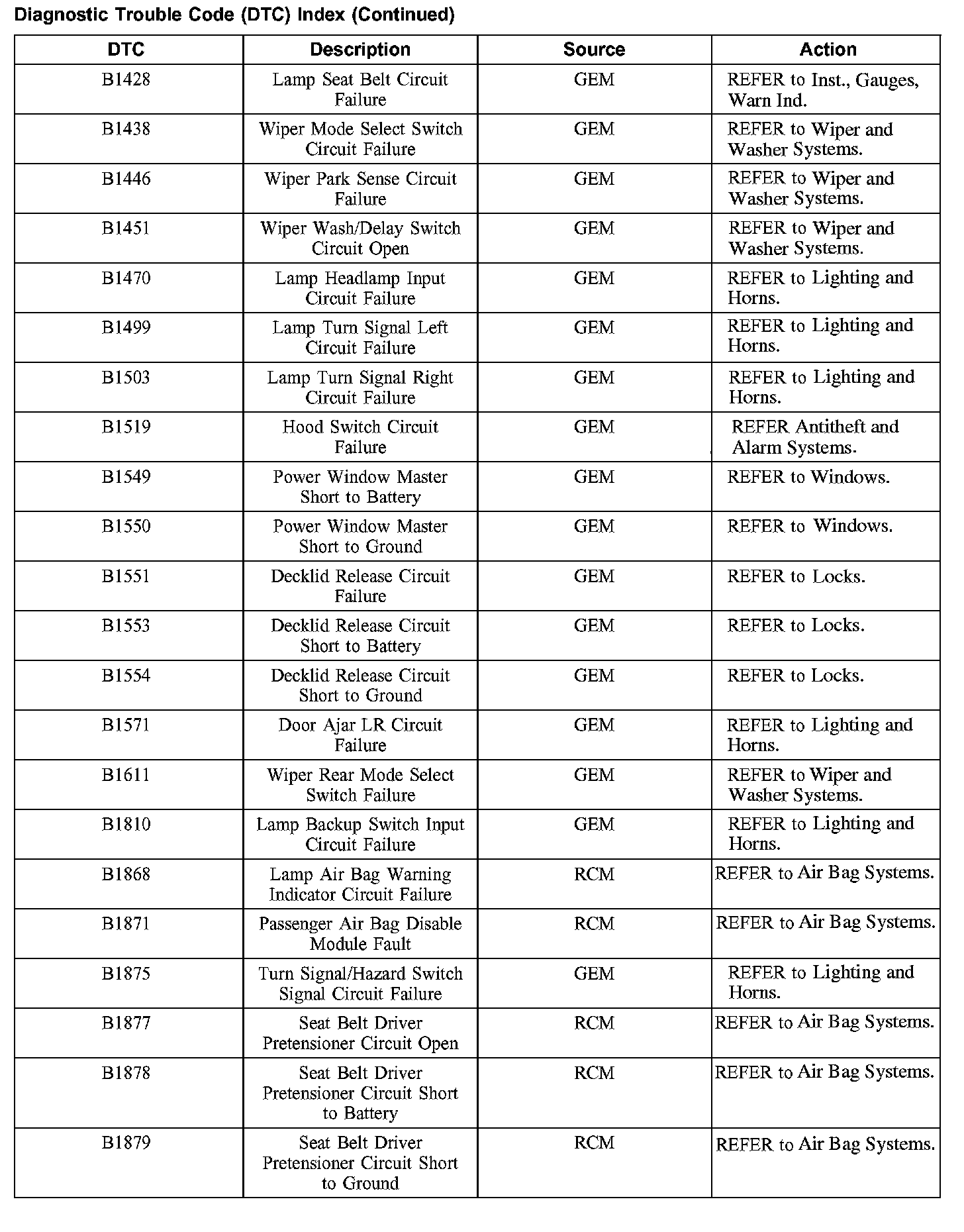

B1428-B1879:

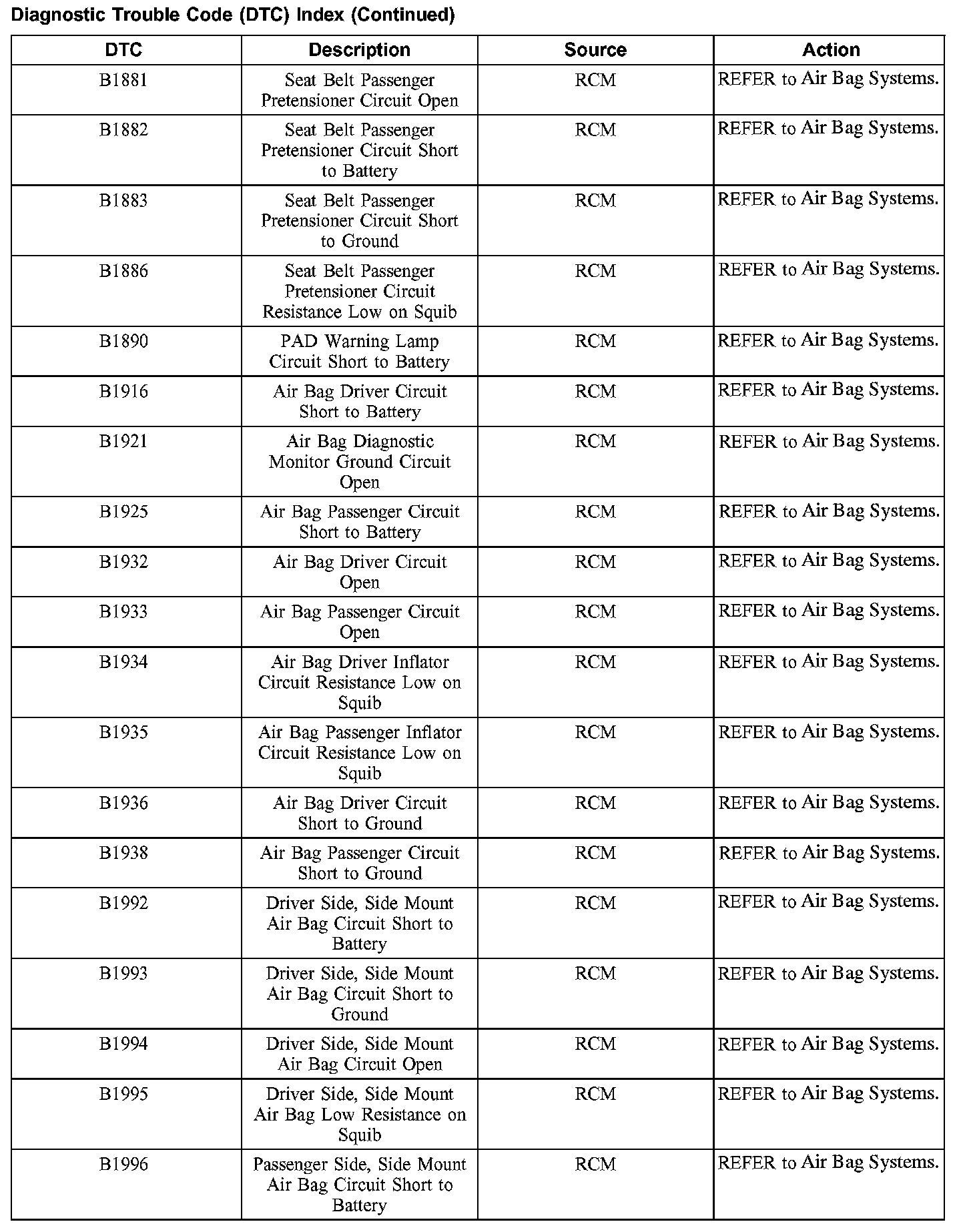

B1881-B1996:

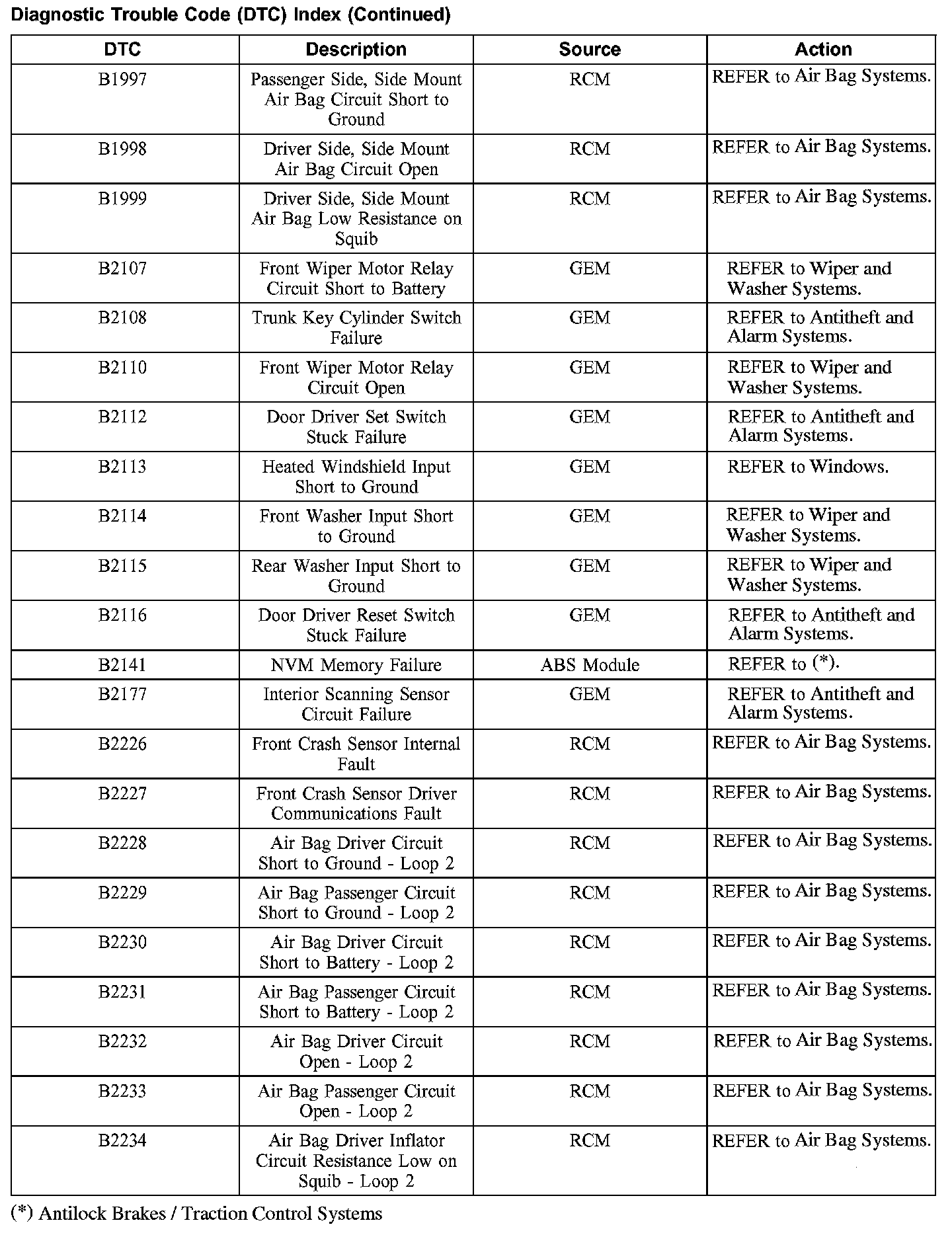

B1997-B2234:

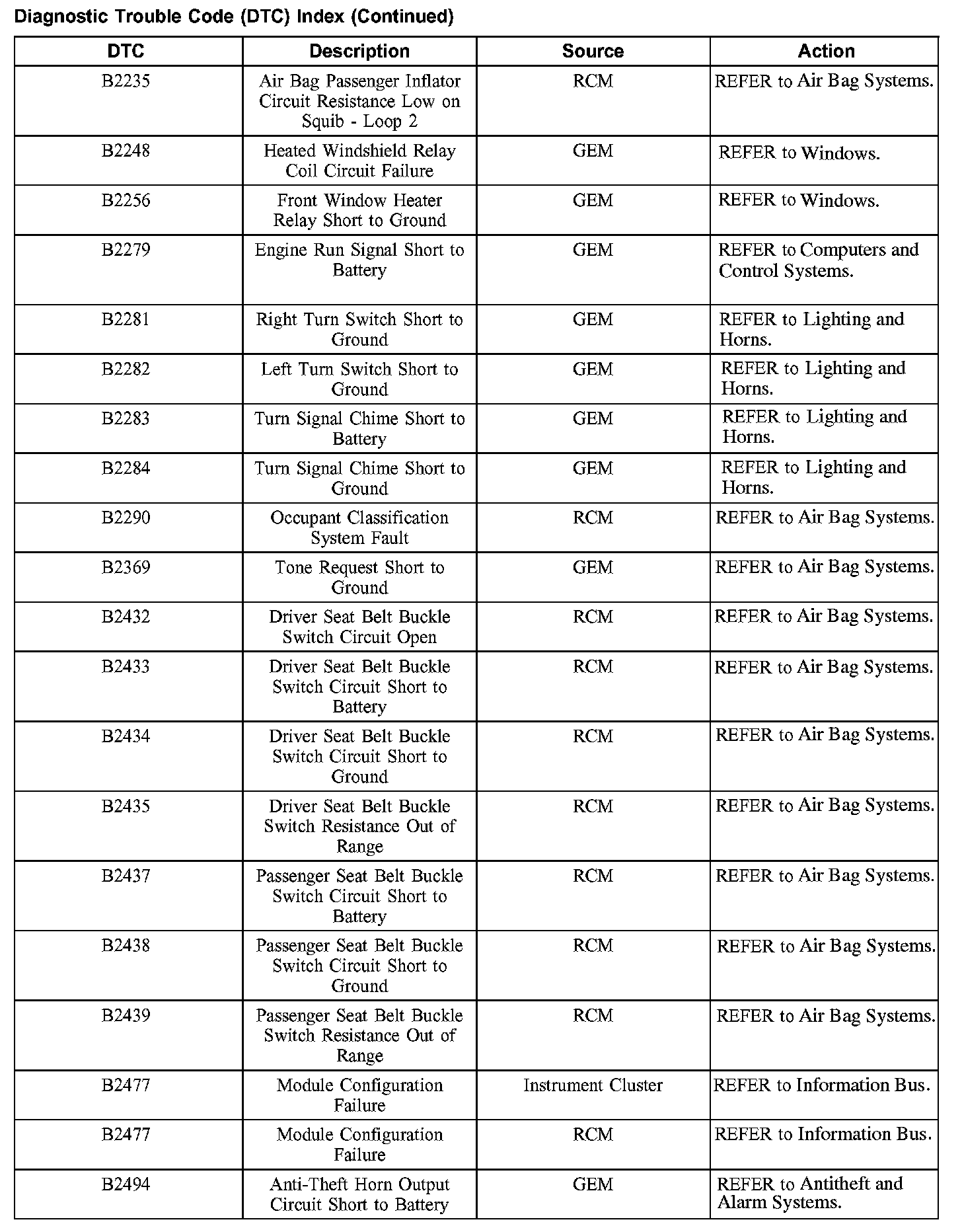

B2235-B2494:

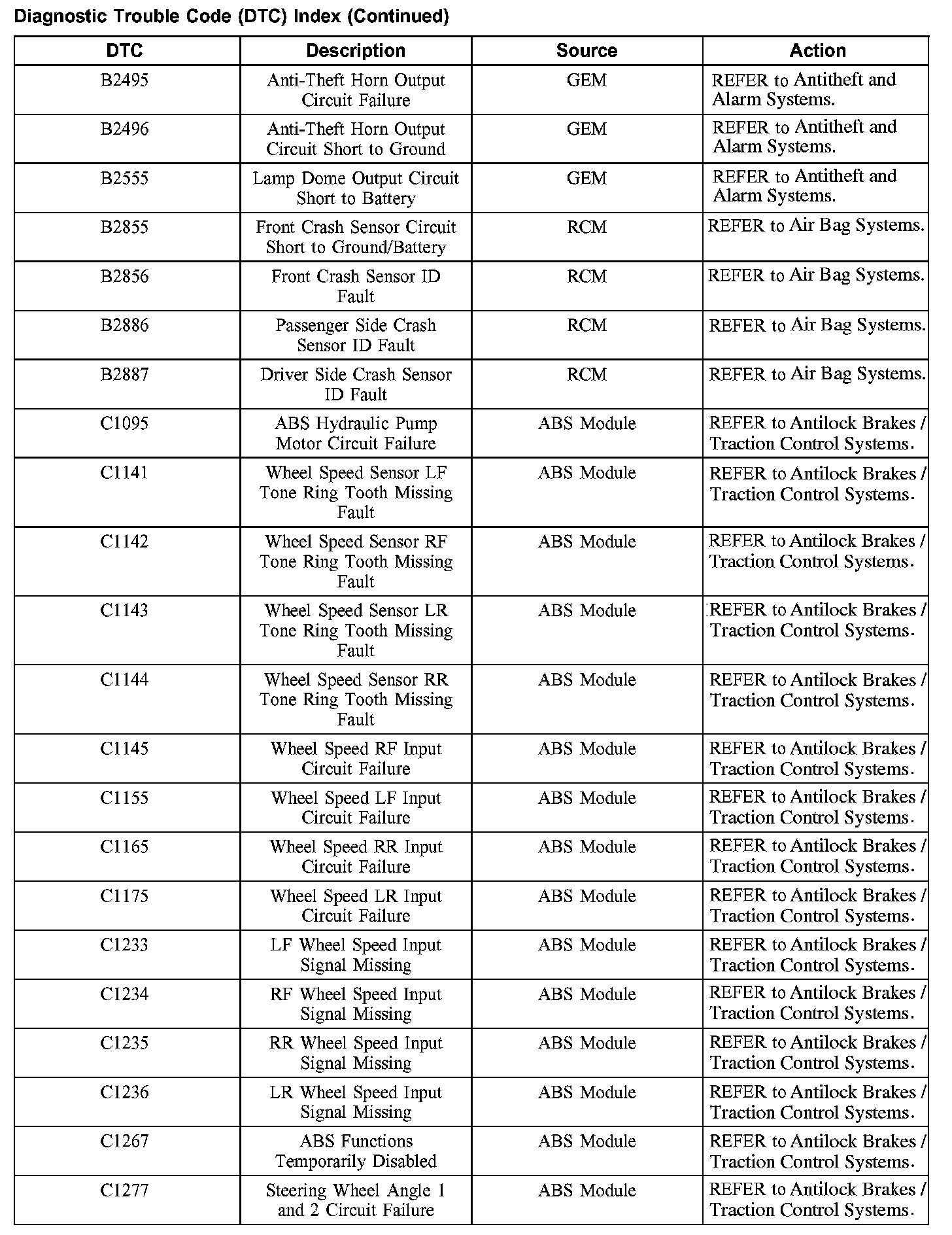

B2495-C1277:

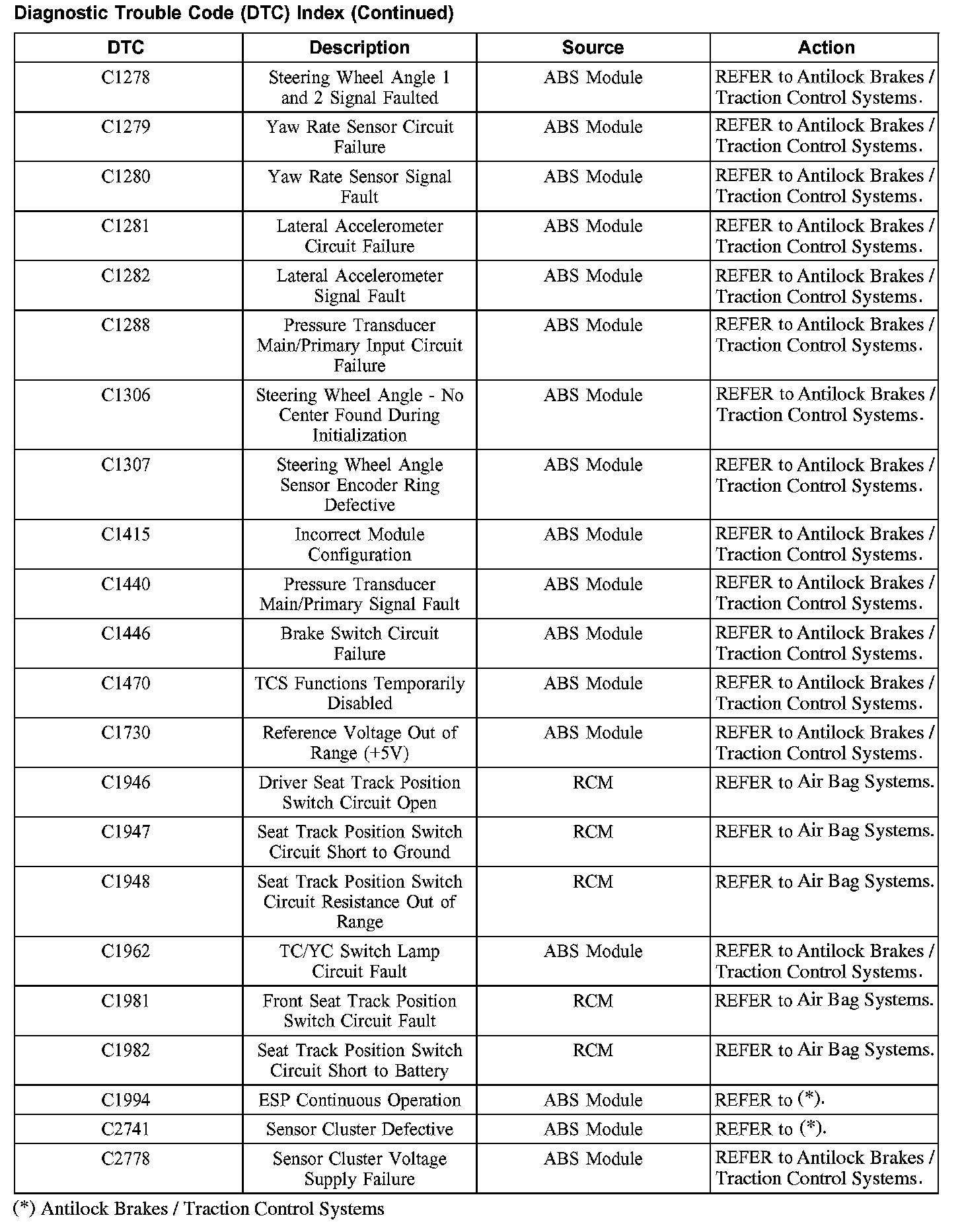

C1278-C2778:

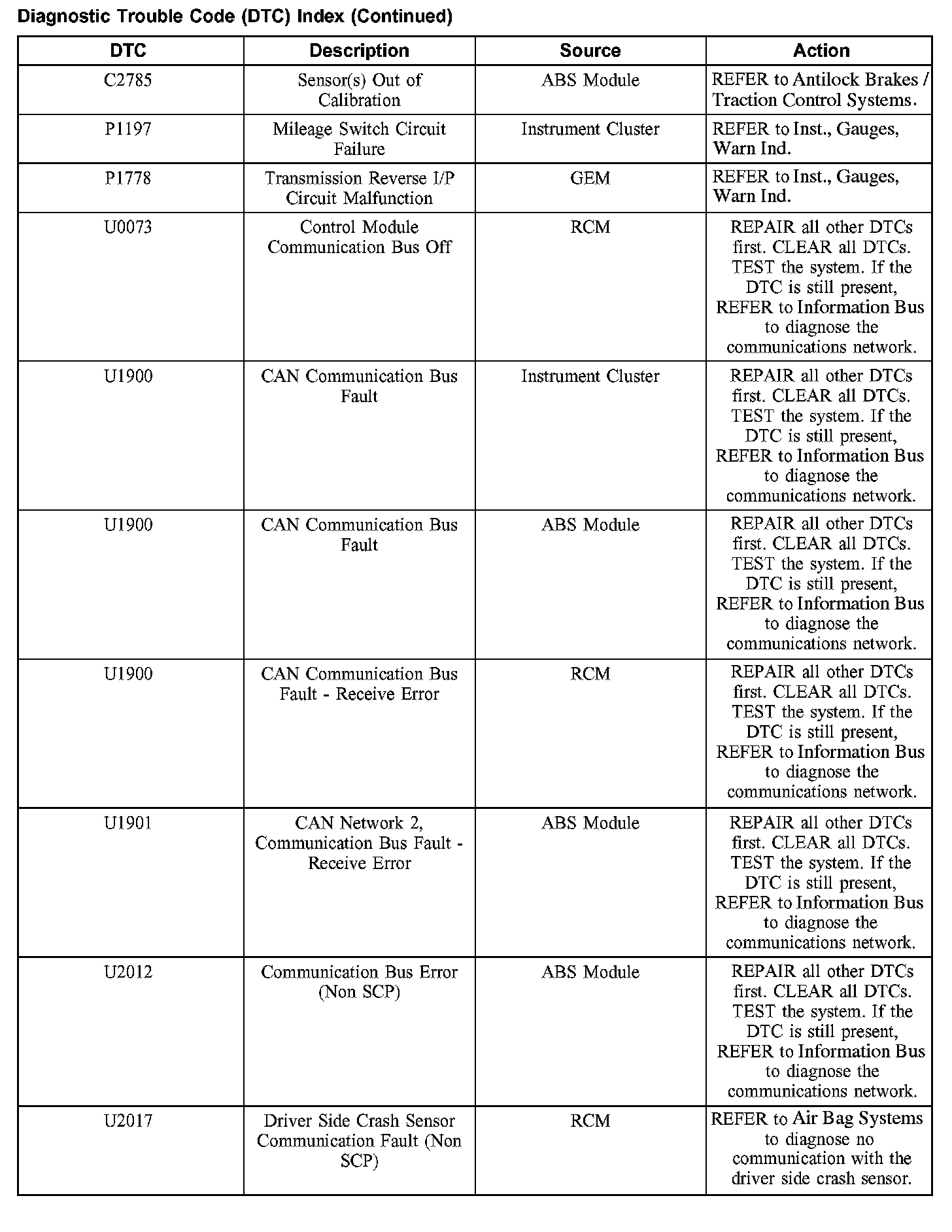

C2785-U2017:

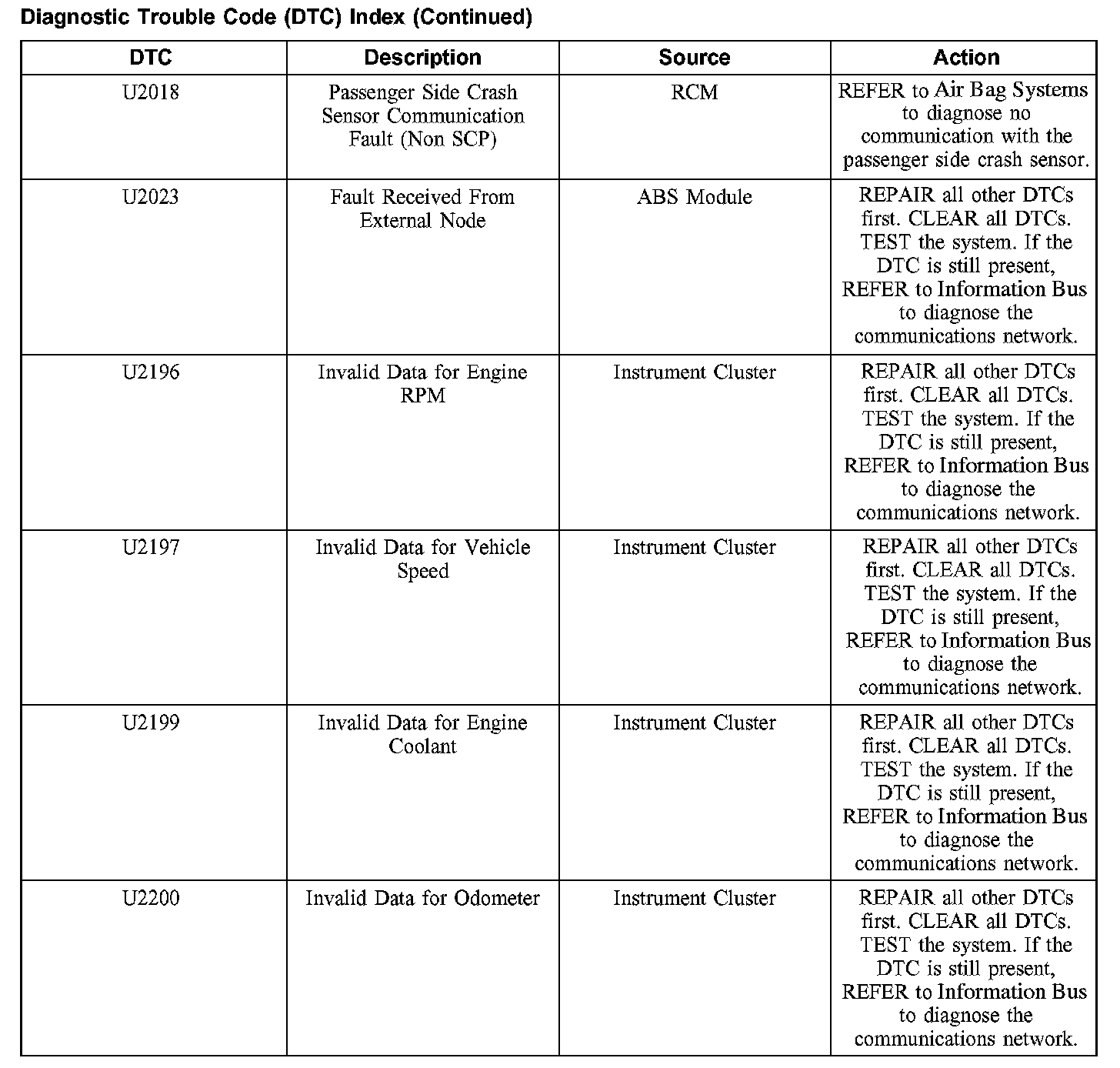

U2018-U2200:

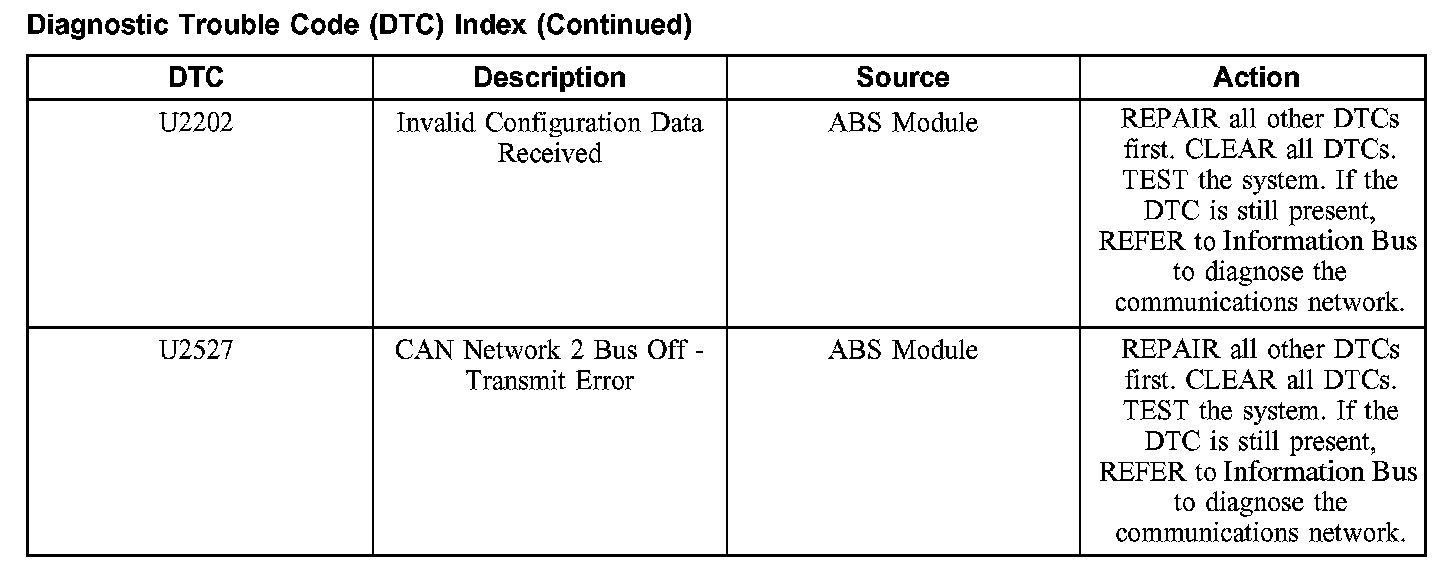

U2202-U2527:
