Cruise Control Switch: Service and Repair

SPEED CONTROL SWITCH

Removal and Installation
1. Remove the driver air bag module.

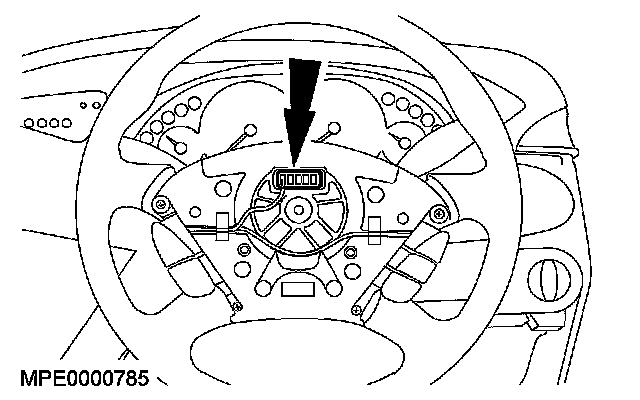

2. Disconnect the speed control switch electrical connector.

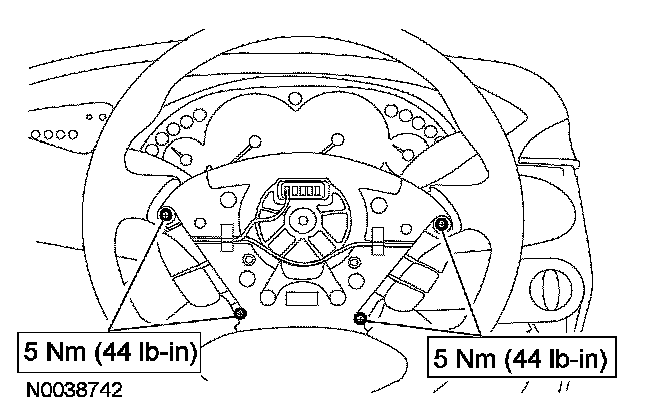

3. Remove the 4 screws and the speed control switches.
- To install, tighten to 5 Nm (44 lb-in).

4. To install, reverse the removal procedure.
