Test E: The Speed Control Switch Is Inoperative

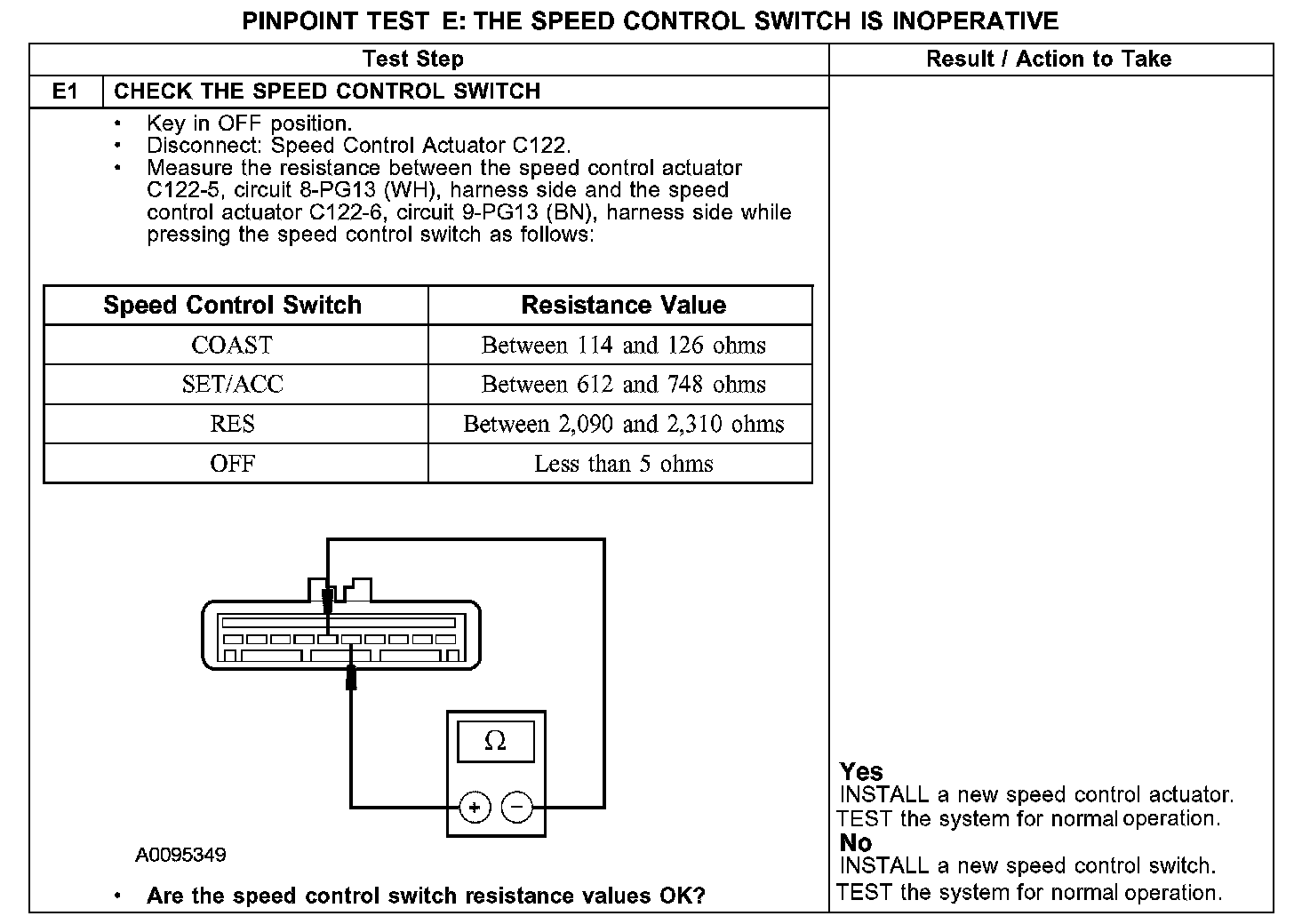

PINPOINT TEST E: THE SPEED CONTROL SWITCH IS INOPERATIVE

E1:

Normal Operation
The speed control actuator sends and receives signals to the speed control switch through circuits 8-PG13 (WH) and 9-PG13 (BN). The speed control switch receive voltage through circuit 15-PG13 (GN/YE).

Possible Causes
- Speed control switch
- Speed control actuator
