Engine Lubrication

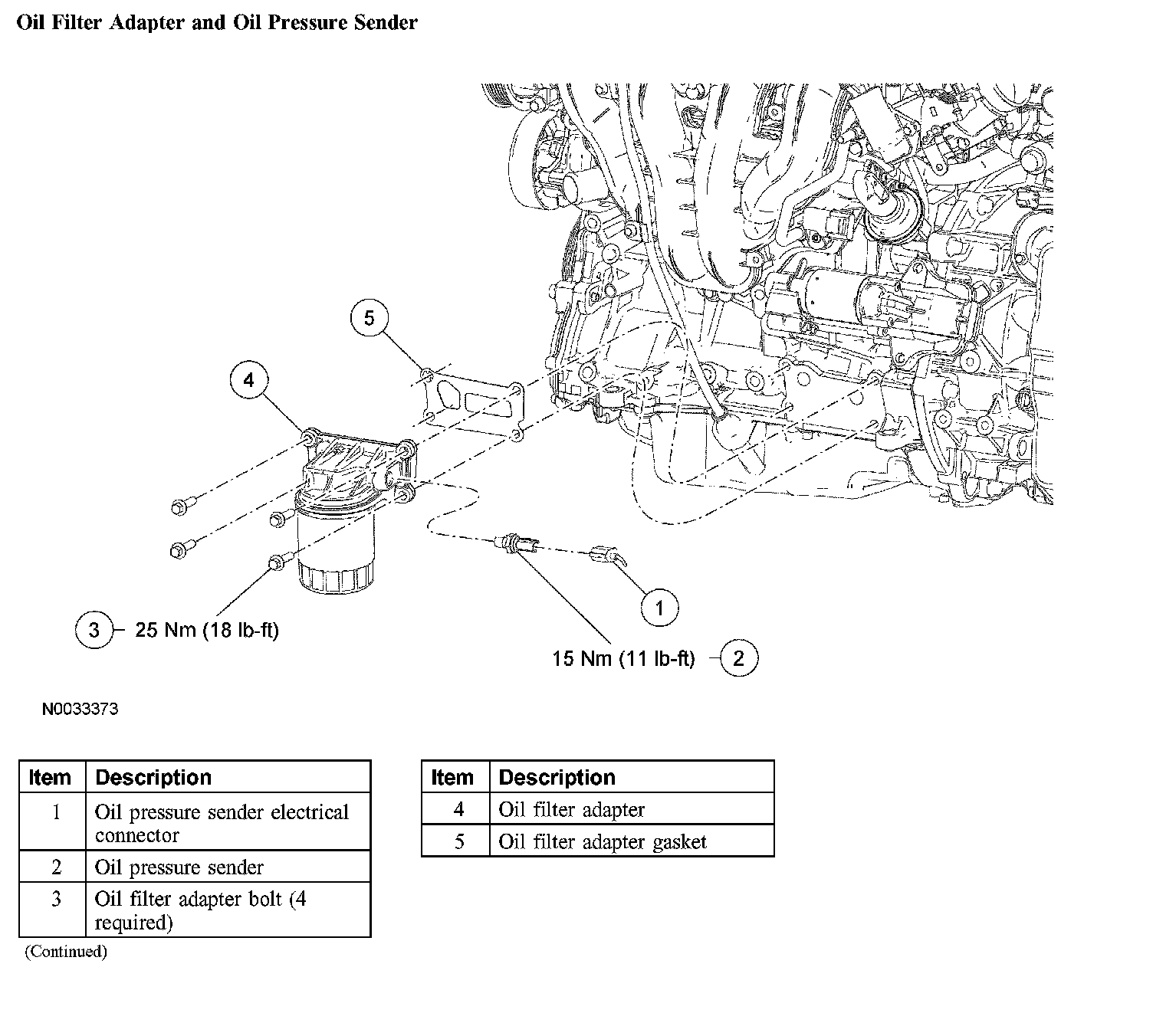

Oil Filter Adapter and Oil Pressure Sender:

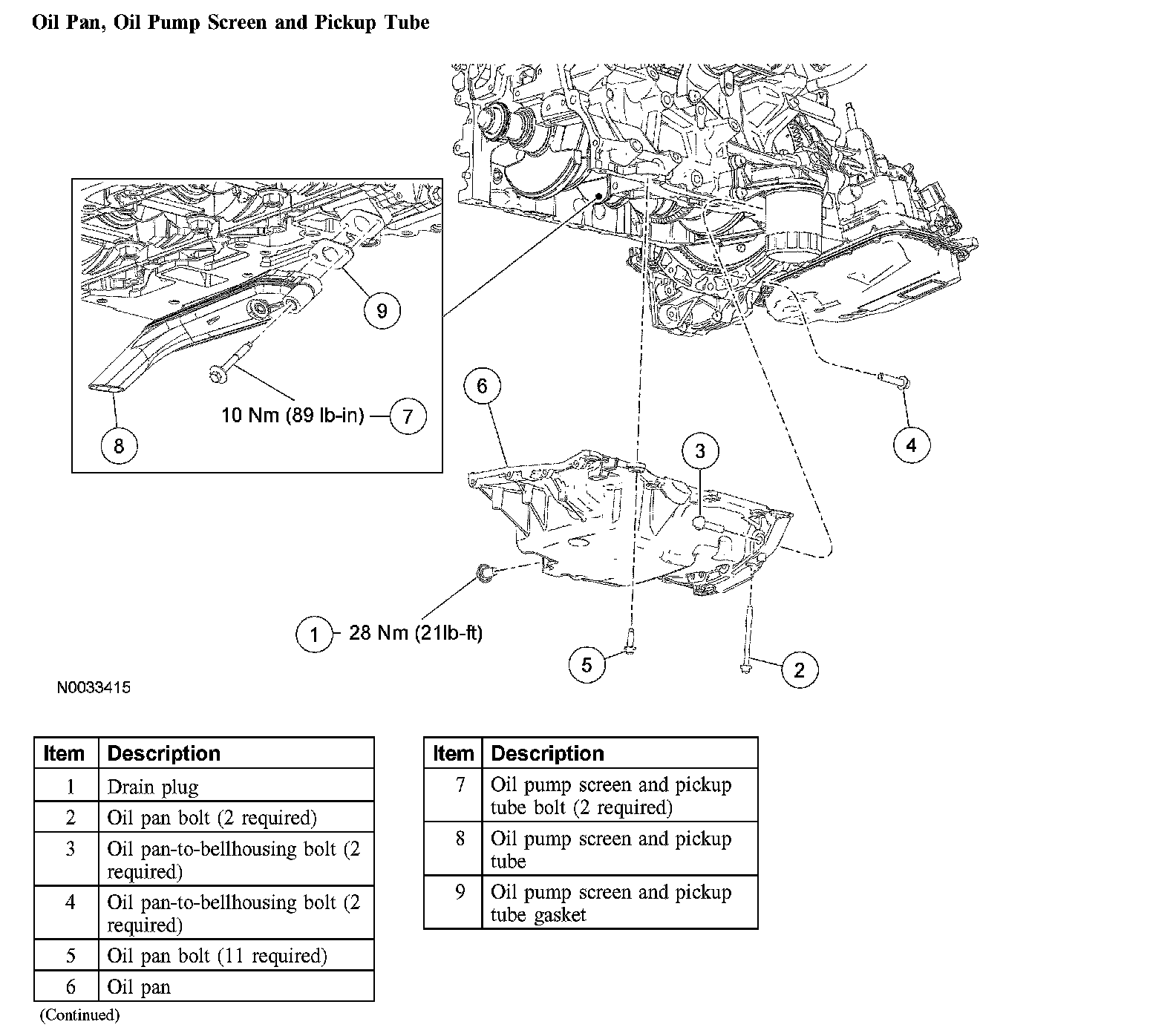

Oil Pan, Oil Pump Screen and Pickup Tube:





Engine Lubrication Components Exploded View
