System Diagram

Lower End Components - Exploded View

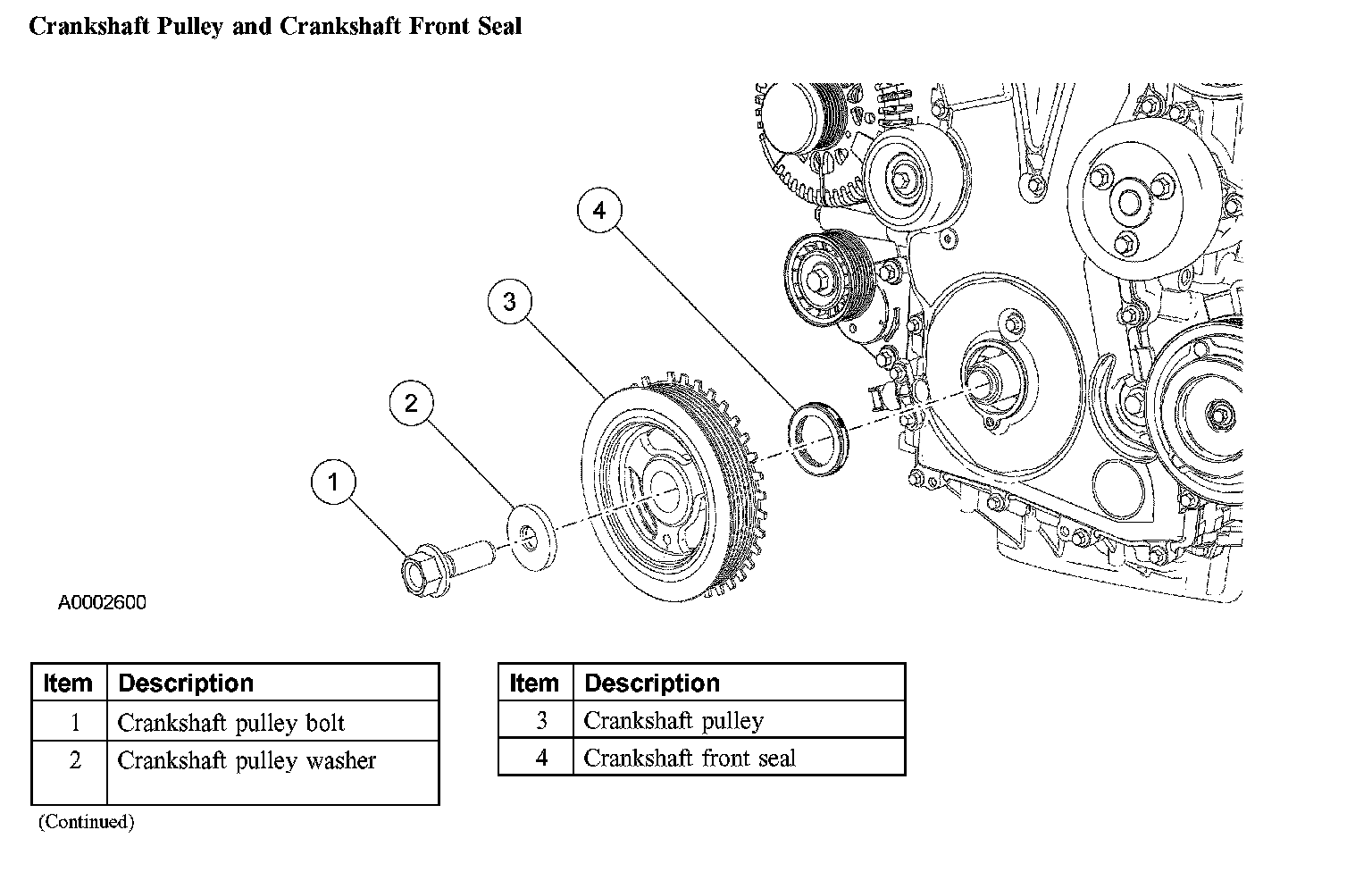

Crankshaft Pulley and Crankshaft Front Seal:





Crankshaft Pulley and Crankshaft Front Seal

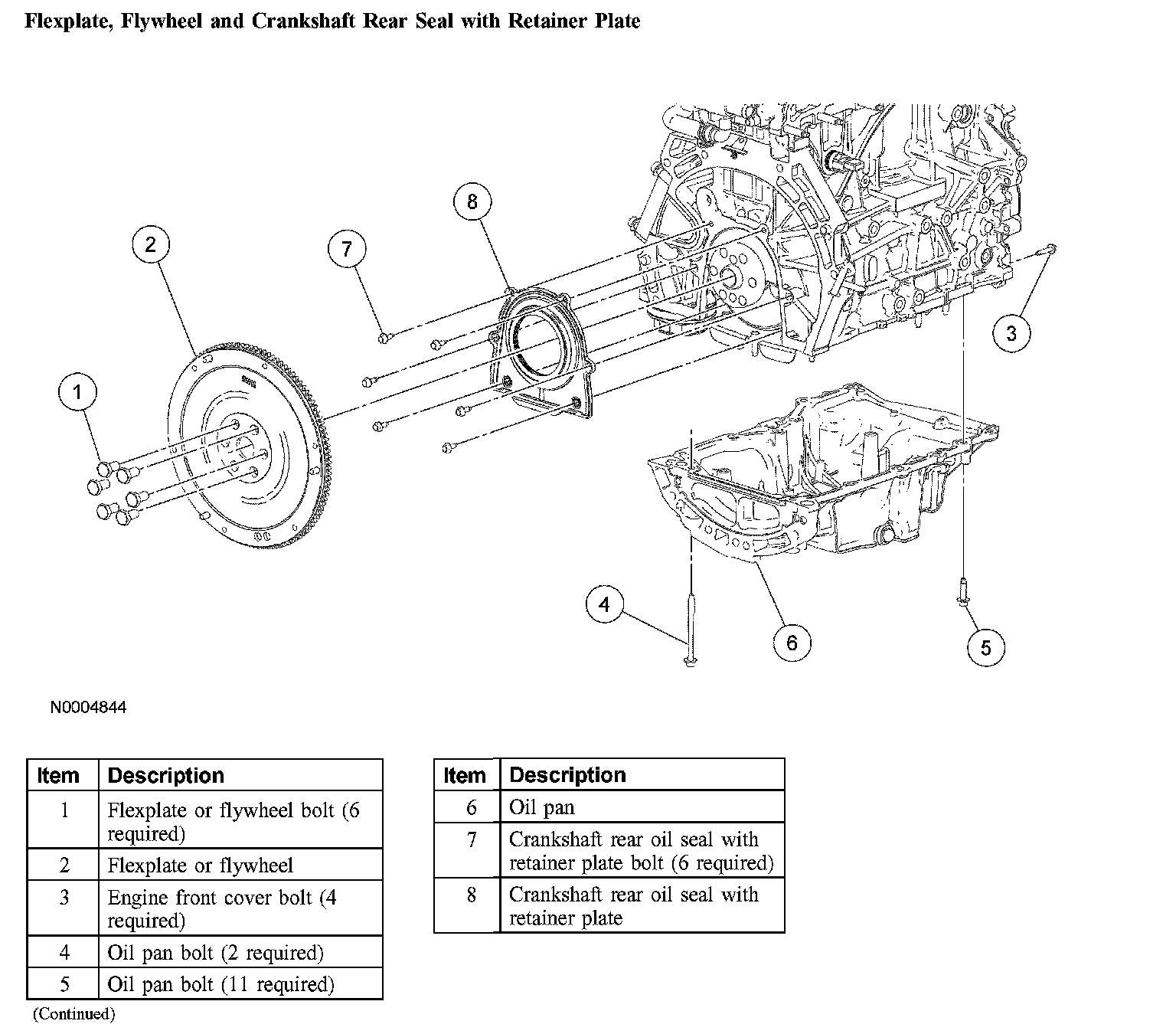

Flexplate, Flywheel and Crankshaft Rear Seal with Retainer Plate:





Flexplate, Flywheel and Crankshaft Rear Seal with Retainer Plate
