Connector Location Index

PLEASE NOTE: If a link on the Connector Location Index to a View is not provided, that means that the Connector and/or View in question does NOT apply to the vehicle model selected.

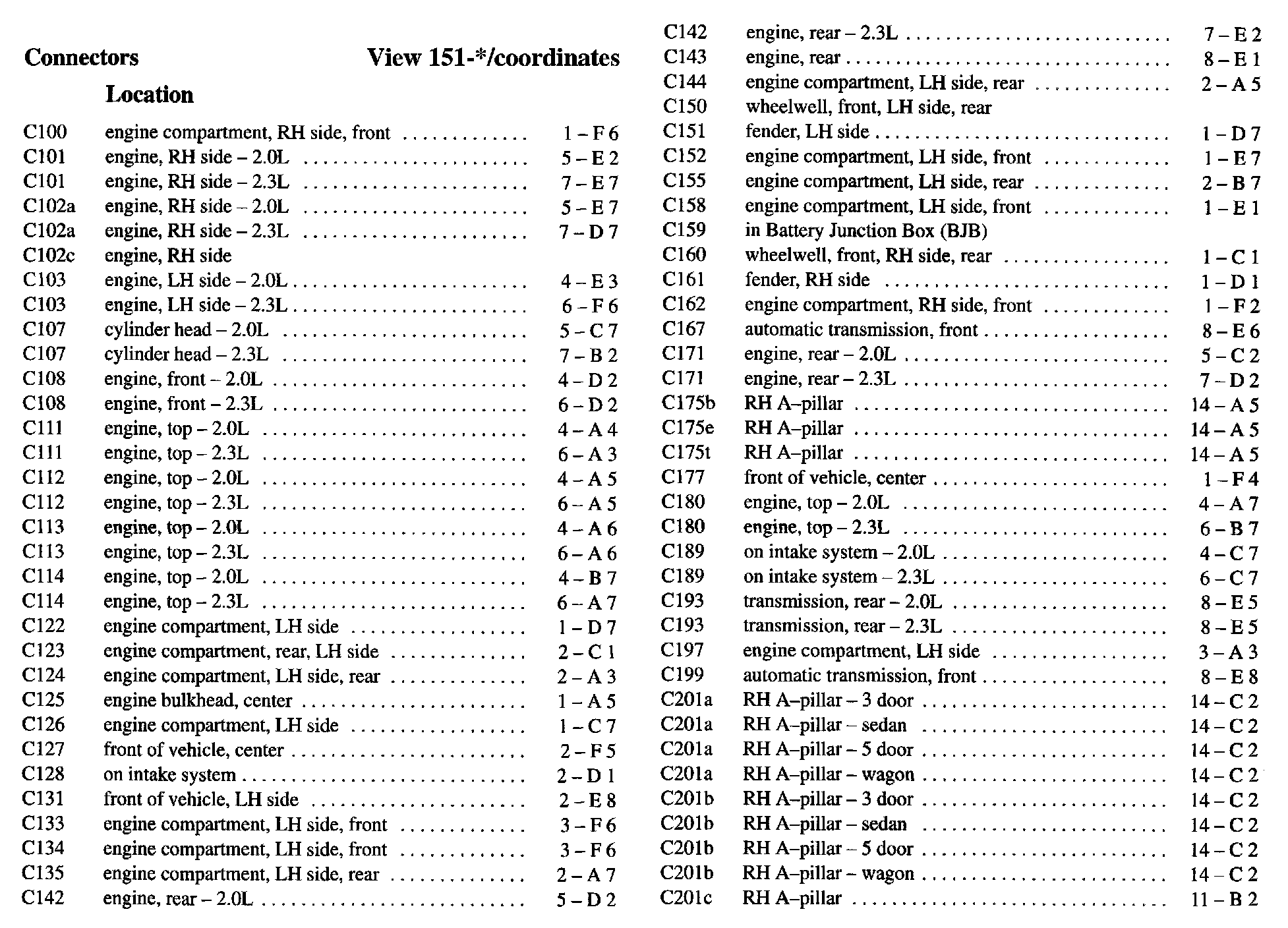

C100-C201c:

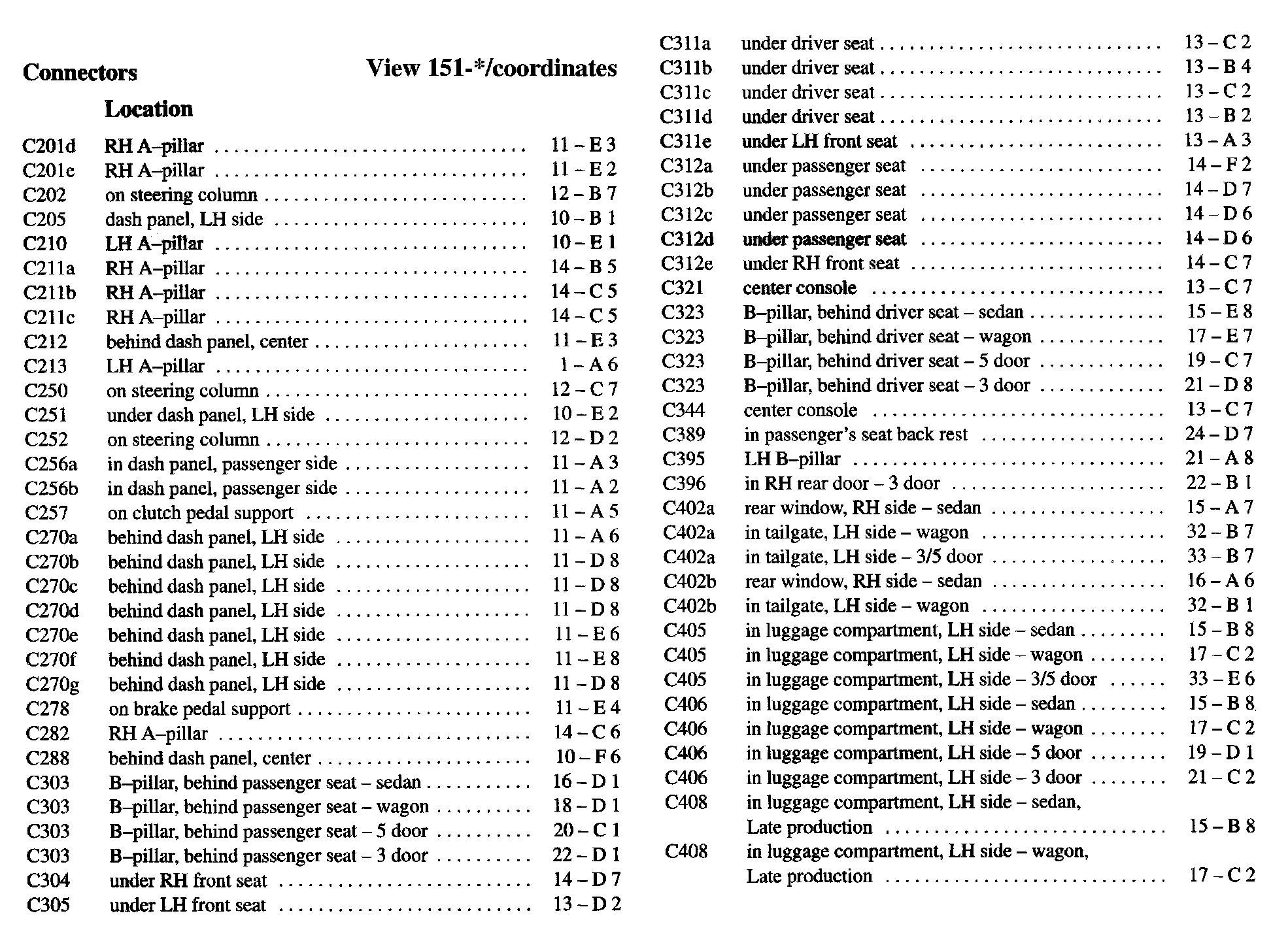

C201d-C408:

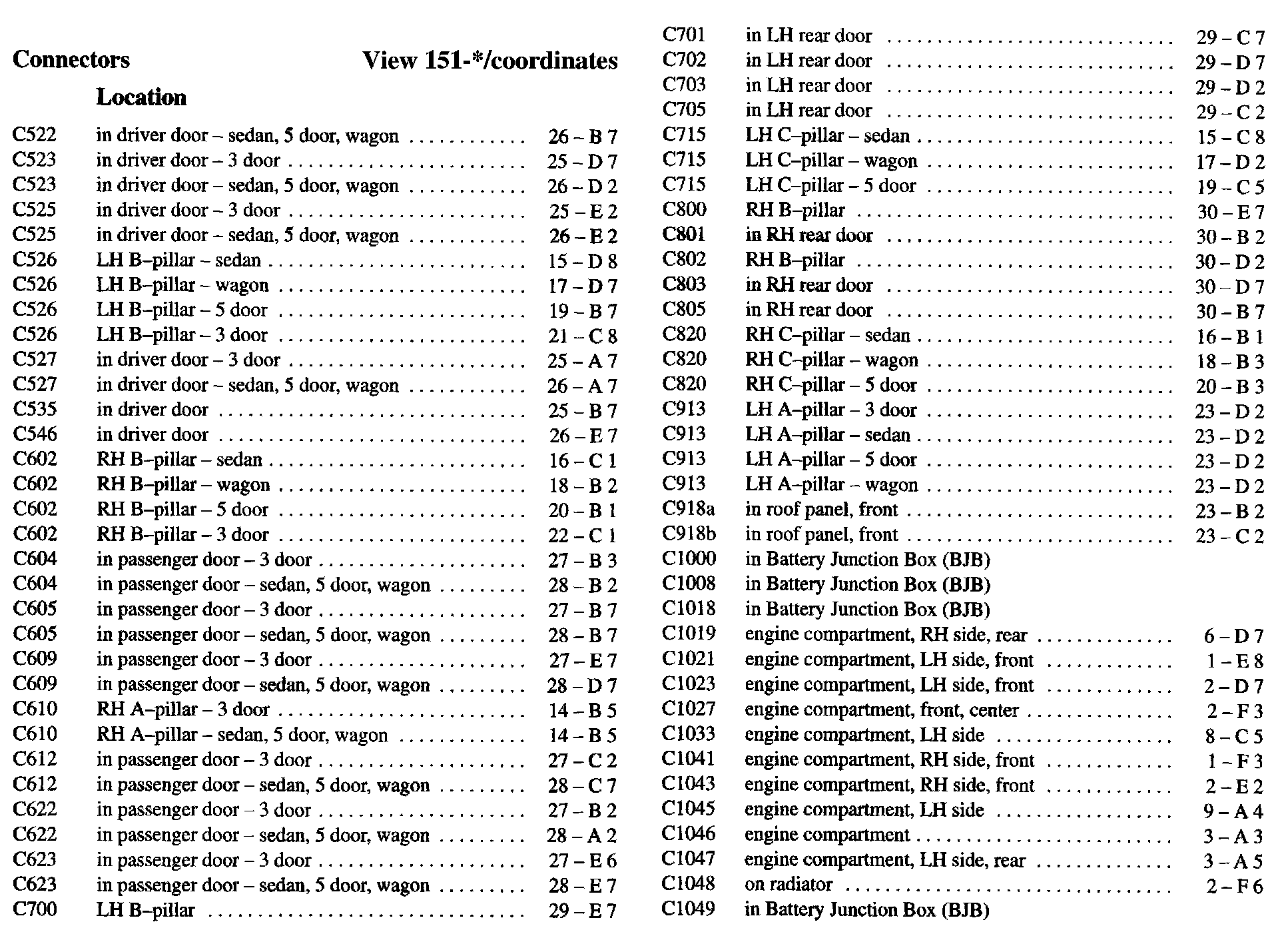

C408-C522:






C522-C1049:

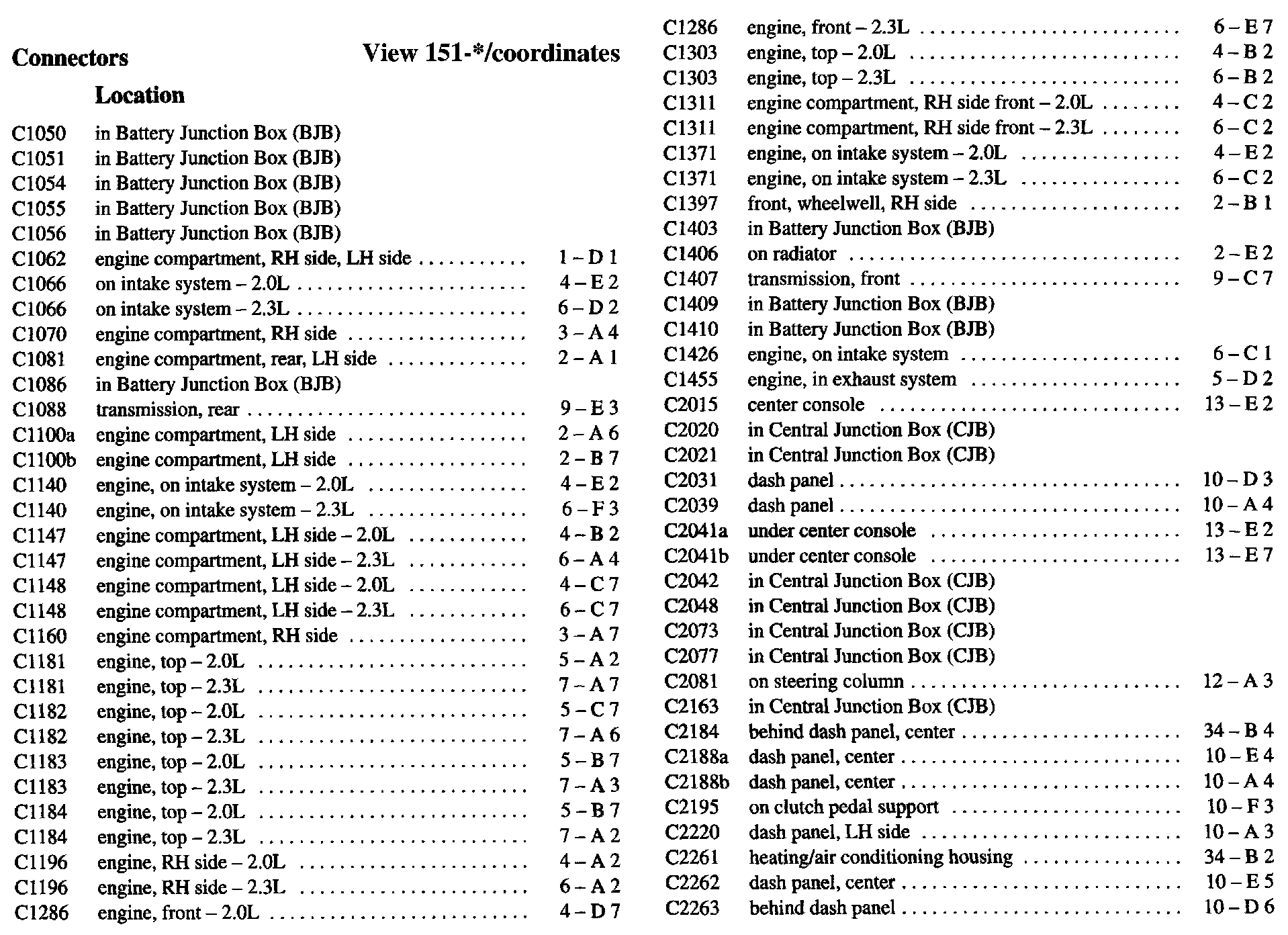

C1050-C2263:

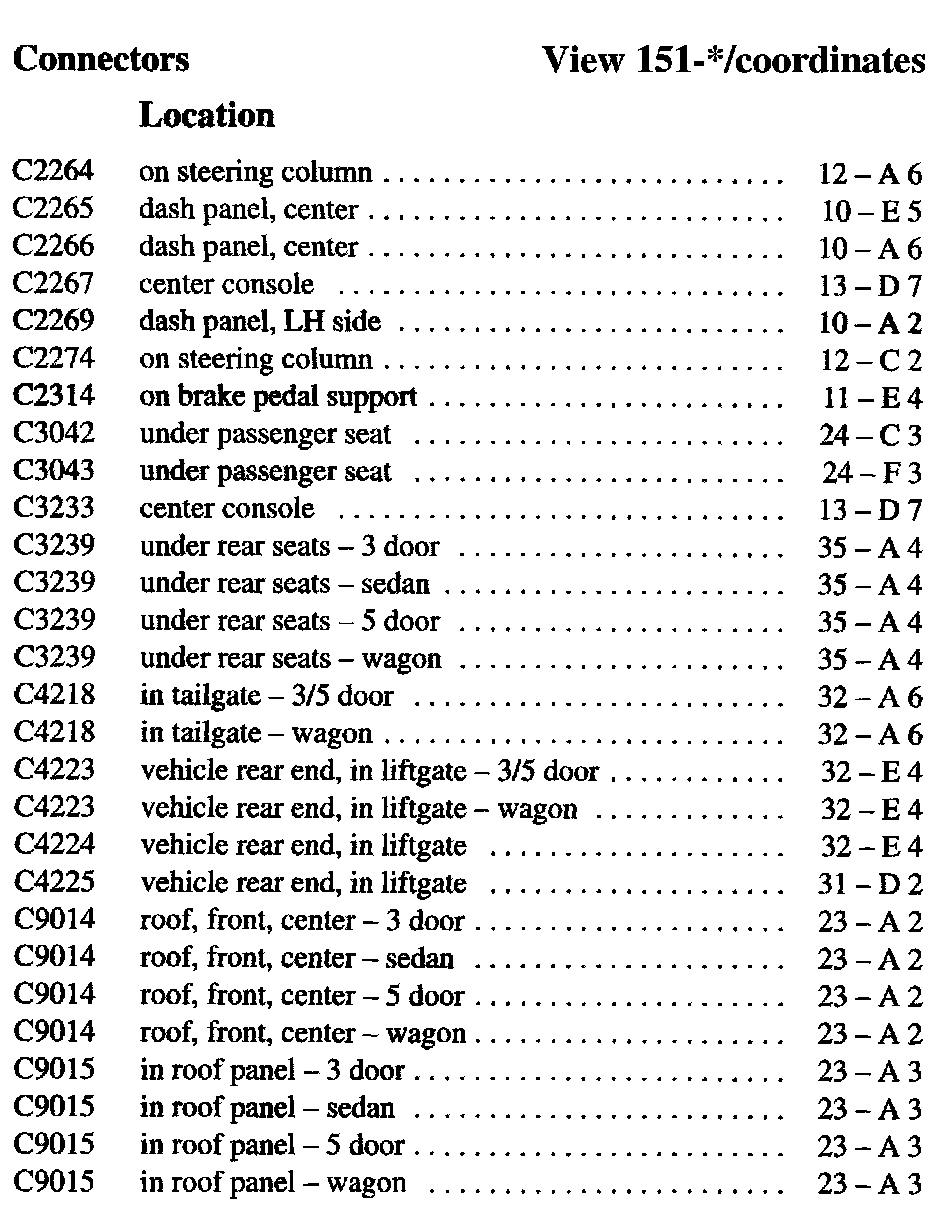

C2264-C9015:
