Tests FD: Brake Pedal Inputs

PINPOINT TEST FD: BRAKE PEDAL INPUTS

This pinpoint test is intended to diagnose the following:

^ brake pedal position (BPP) (13480)
^ brake pedal switch ( BPS) (9F924)
^ harness circuits: B+ BPP BPS
^ powertrain control module ( PCM) (12A650)

Refer to Wiring Diagrams for specific vehicle application and pin locations.

PCM Connector

Reference:

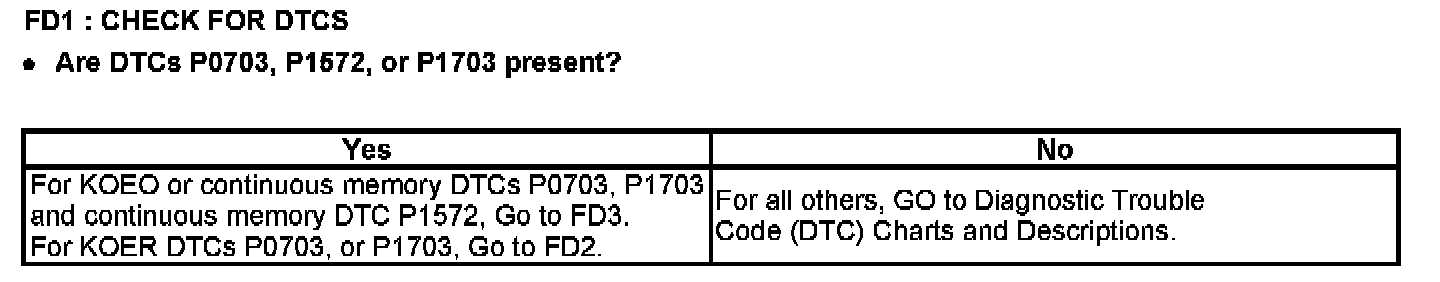

FD1:

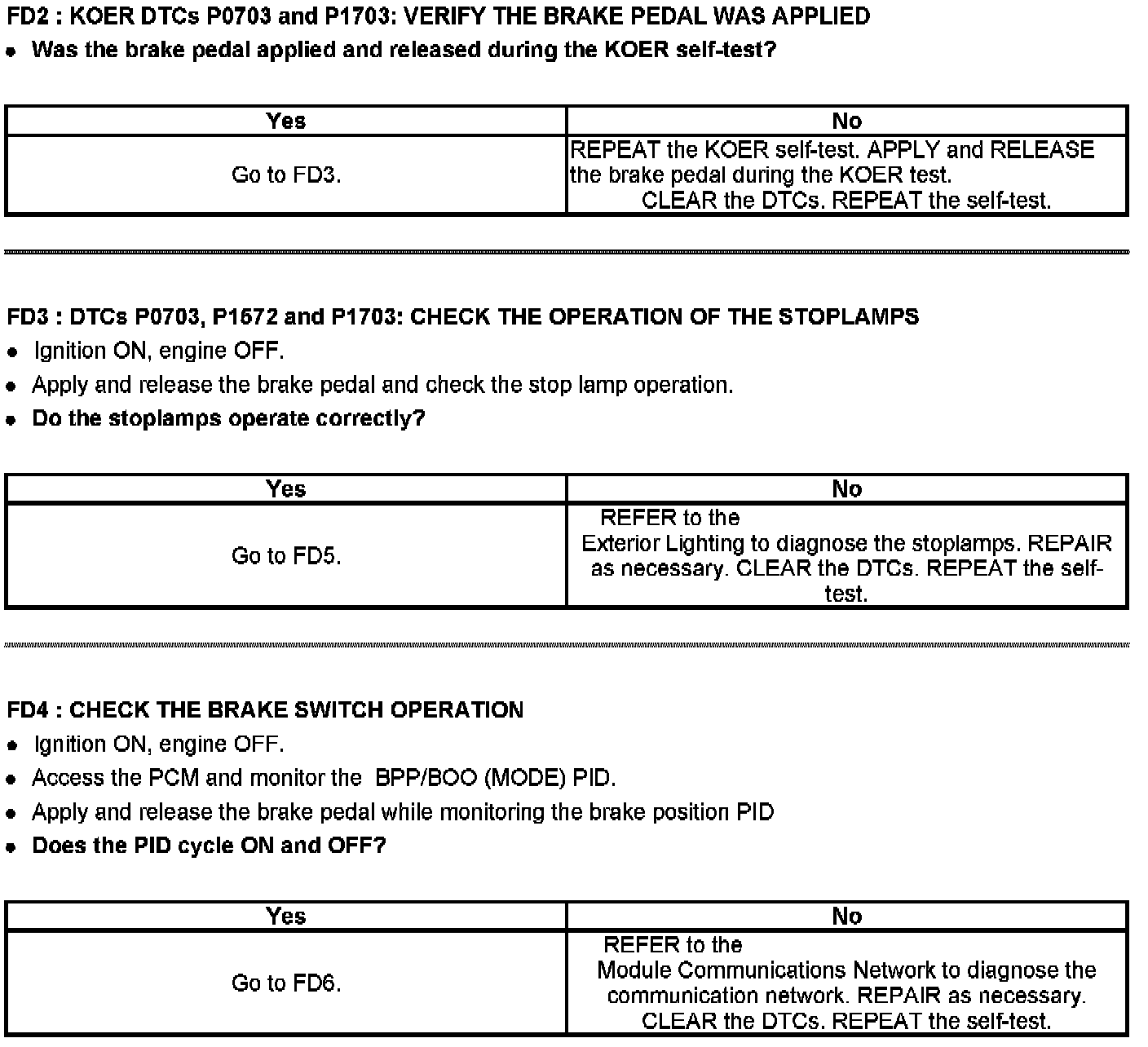

FD2 - FD4:

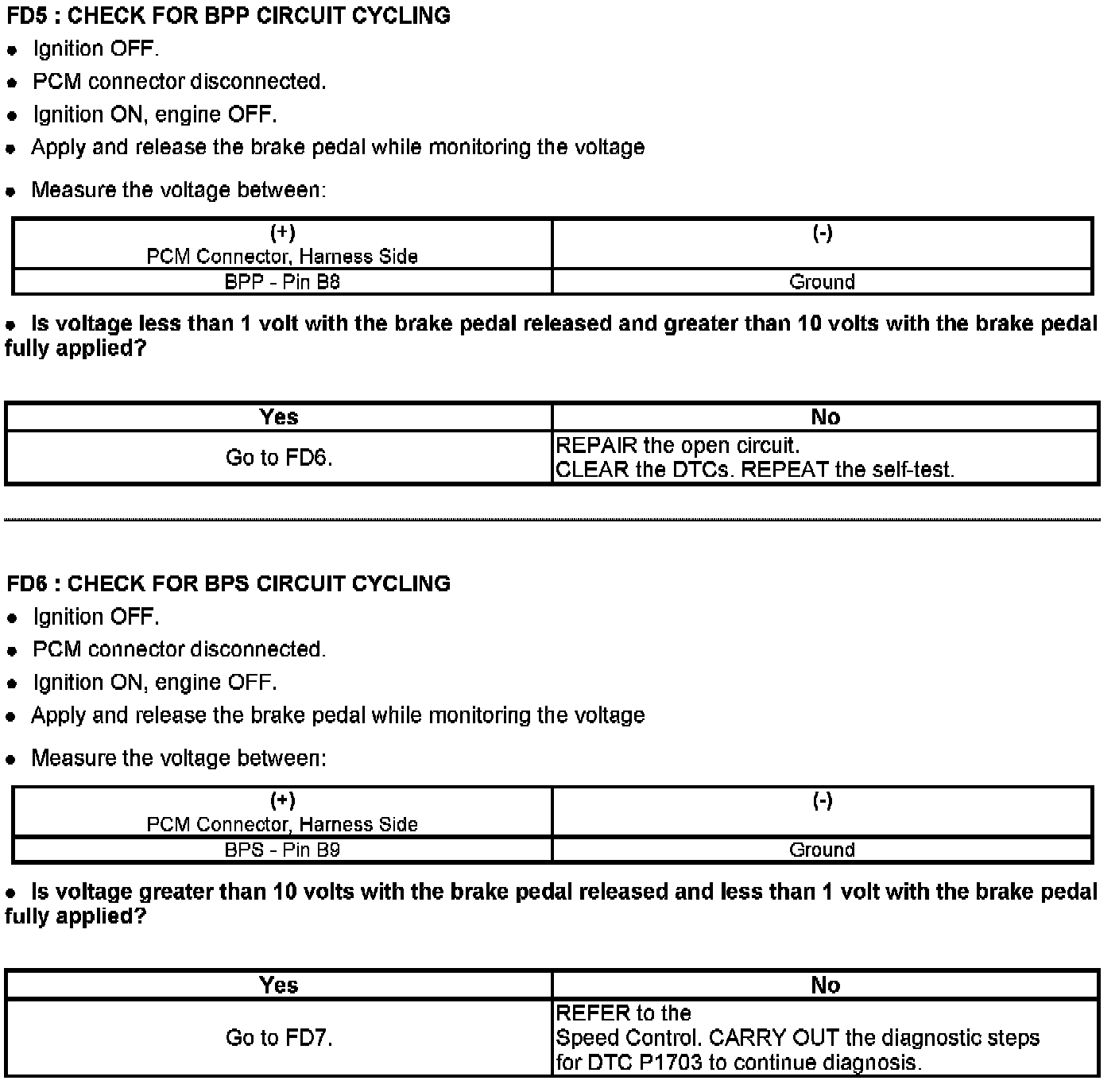

FD5 - FD6:

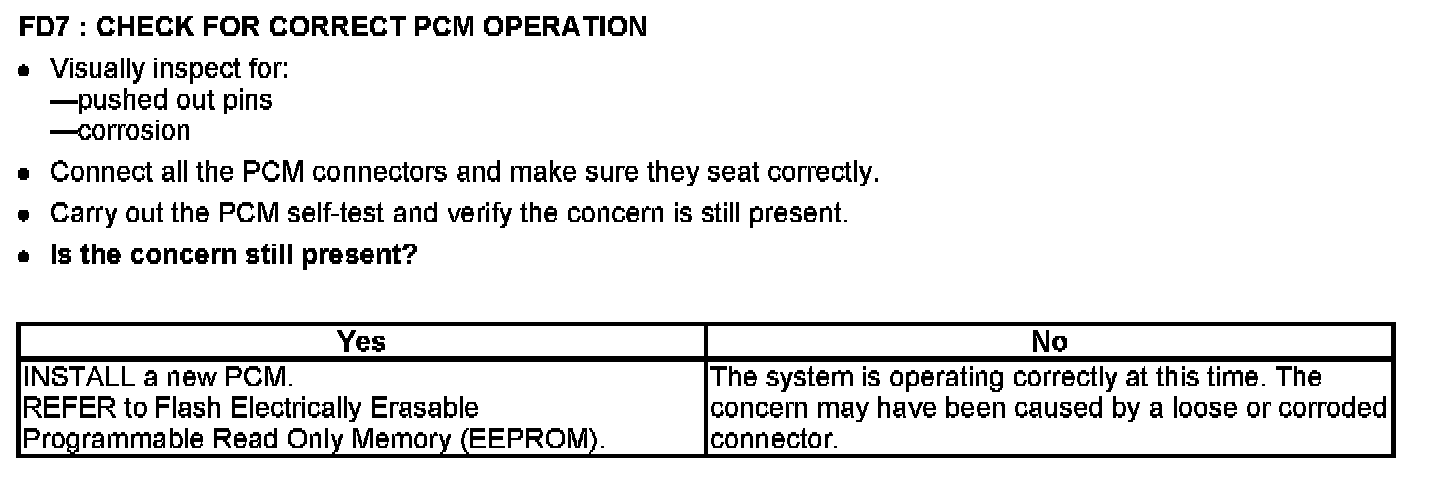

FD7:
