Removal and Installation

SPARK PLUG

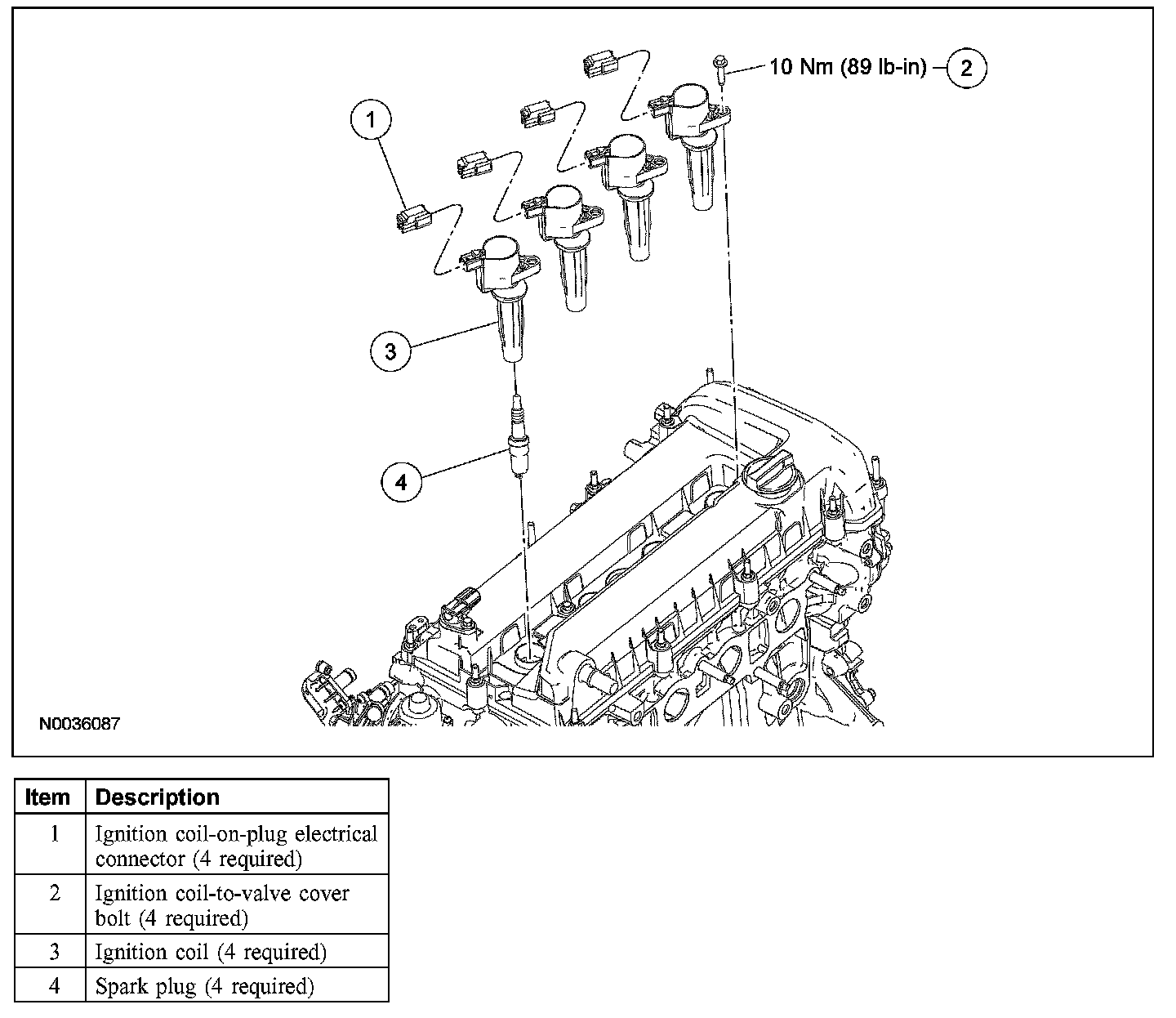

Exploded View

Removal and Installation
1. Remove the ignition coil.

2. NOTE: Remove foreign material from the spark plug well using compressed air.

Remove the spark plug.
- To install, tighten to 12 Nm (9 lb-ft).

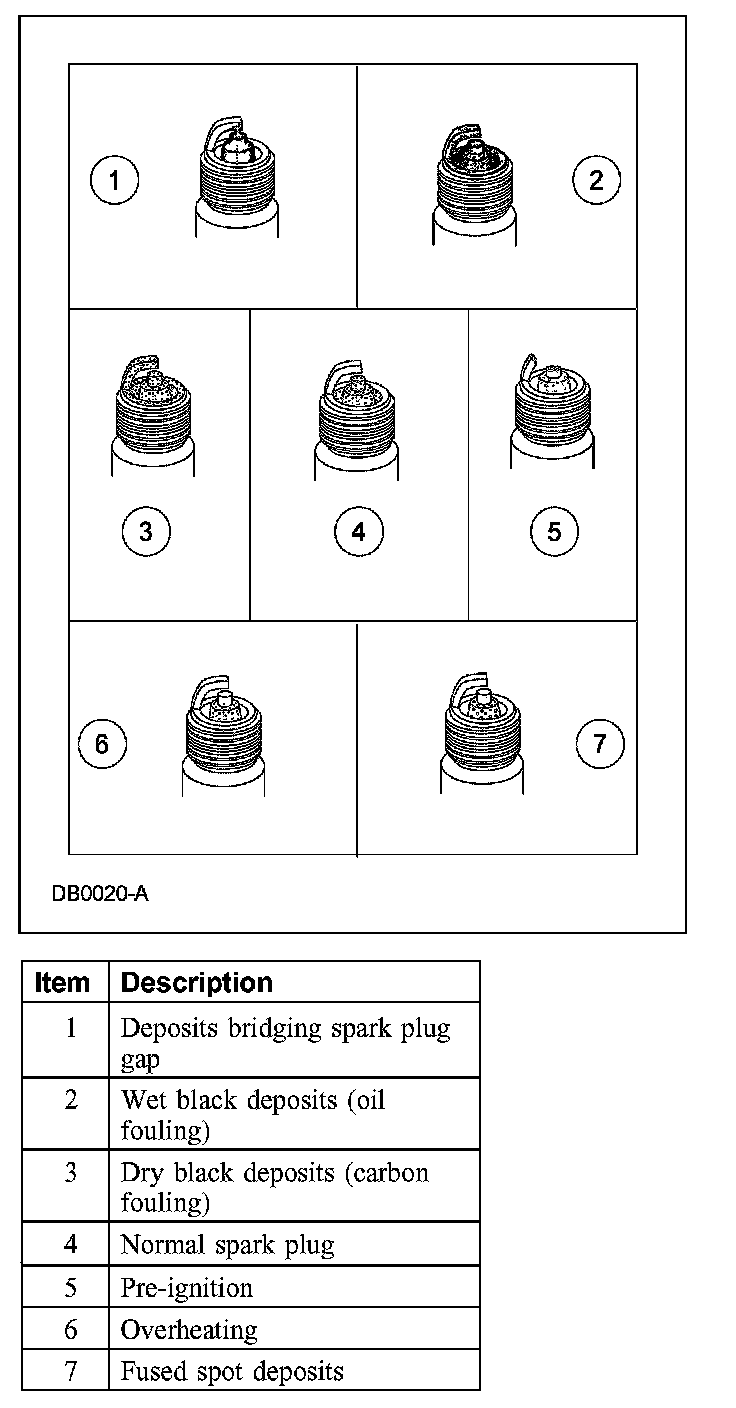

3. Inspect the spark plugs.

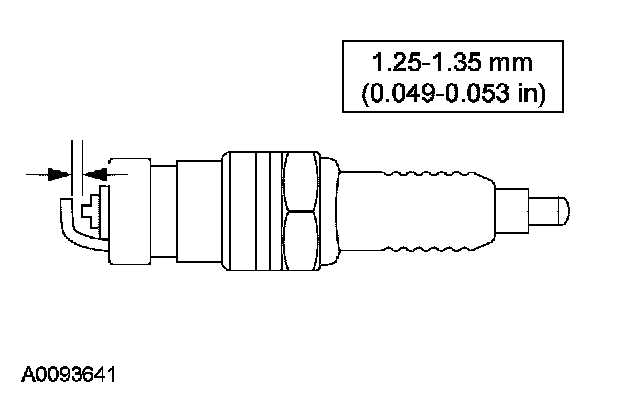

4. Check and adjust the spark plug gap as necessary.
5. To install, reverse the removal procedure.
