Disc Brake System

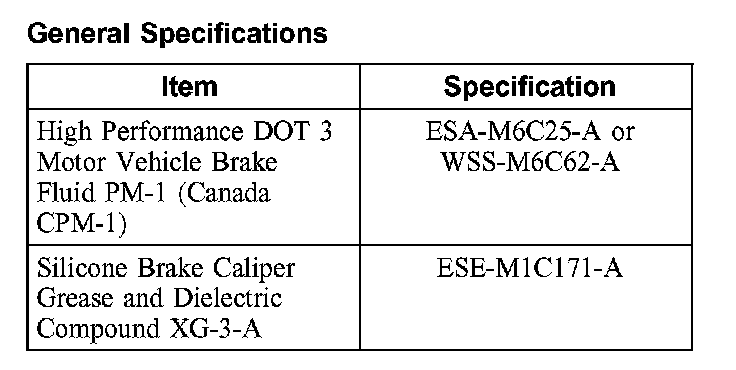

General Specifications:

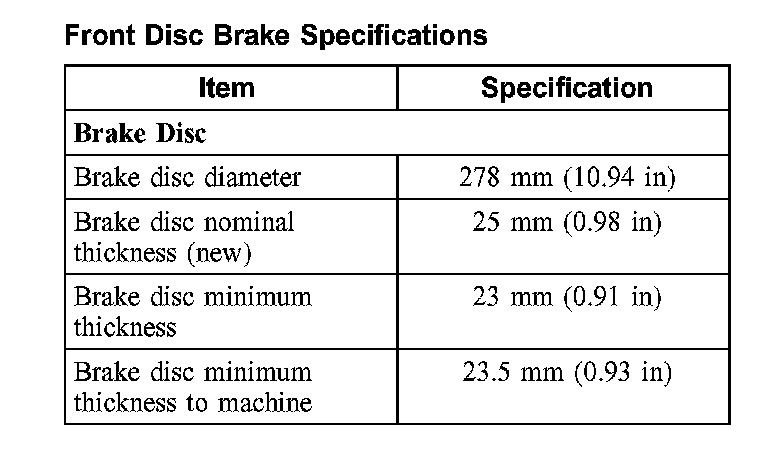

Front Disc Brake Specifications:

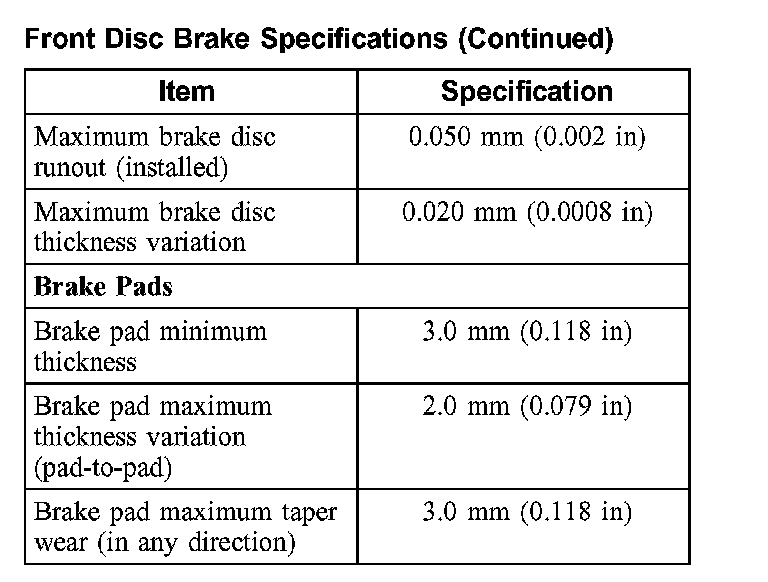

Front Disc Brake Specifications:
