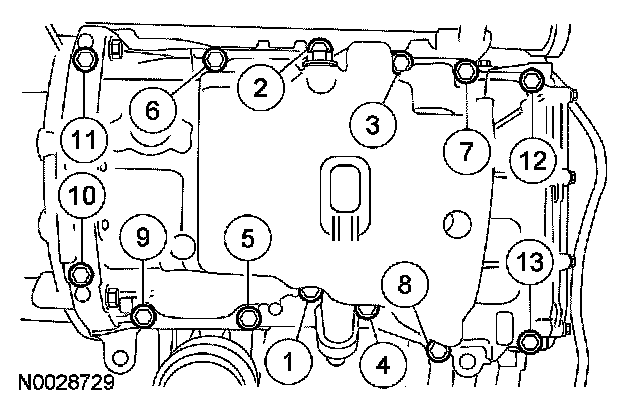

Oil Pan, Engine

Oil Pan-to-Bellhousing Bolts 48 Nm (35 ft. lbs.)





Other Oil Pan Bolts 25 Nm (18 ft. lbs.)
