Selector Lever Bezel: Installation

    NOTE: Selector lever assembly shown removed.
  1. Install the selector lever bezel.
    • Clip in the bezel.
    • Clip in the lamp.

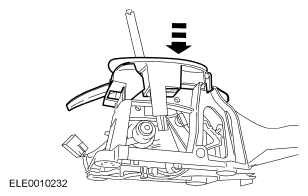

      Fig 1: Installing Selector Lever Bezel
      G04653253Courtesy of FORD MOTOR CO.
  2. Install the selector lever knob. For additional information, refer to SELECTOR LEVER KNOB .
