Valve Spring Free Length

  1. Measure the free length of each valve spring.
    • Refer to SPECIFICATIONS .
    • If out of specification, install new components as necessary. Refer to ENGINE - 2.0L AND 2.3L for the procedure.

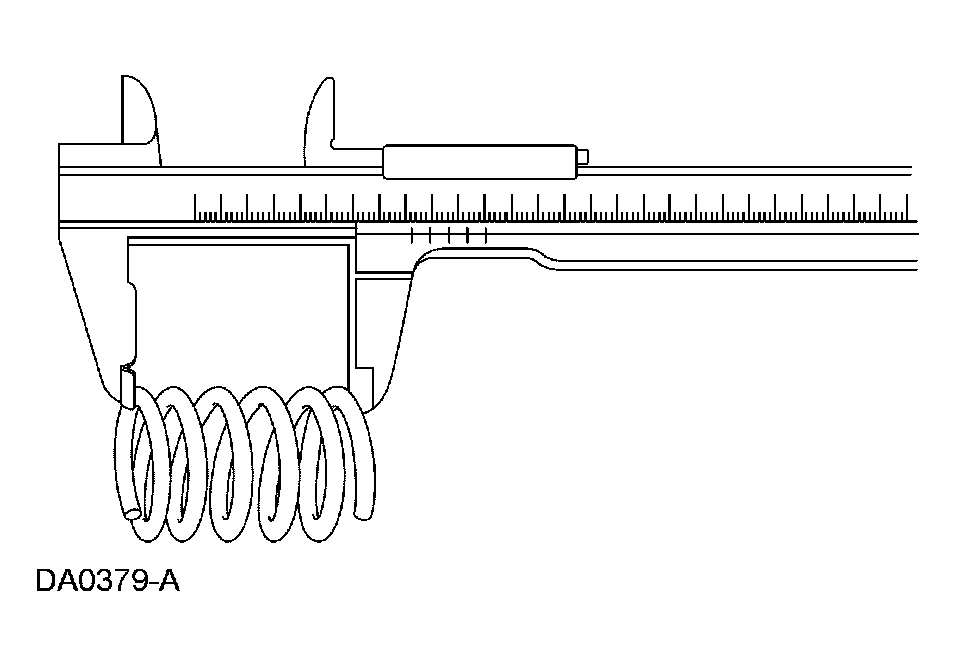

      Fig 1: Measuring Free Length Of Valve Spring
      G03913698Courtesy of FORD MOTOR CO.
