Valve Spring Strength

SPECIAL TOOL(S)

G04651844Courtesy of FORD MOTOR CO.
 Pressure Gauge, Valve/Clutch Spring
303-006 (TOOL-6513-DD) or equivalent
  1. Use a Valve/Clutch Spring Pressure Gauge to check the valve spring for correct strength at the specified valve spring length.
    • Refer to SPECIFICATIONS for the procedure.
    • If out of specification, install new components as necessary. Refer to ENGINE - 2.0L AND 2.3L for the procedure.

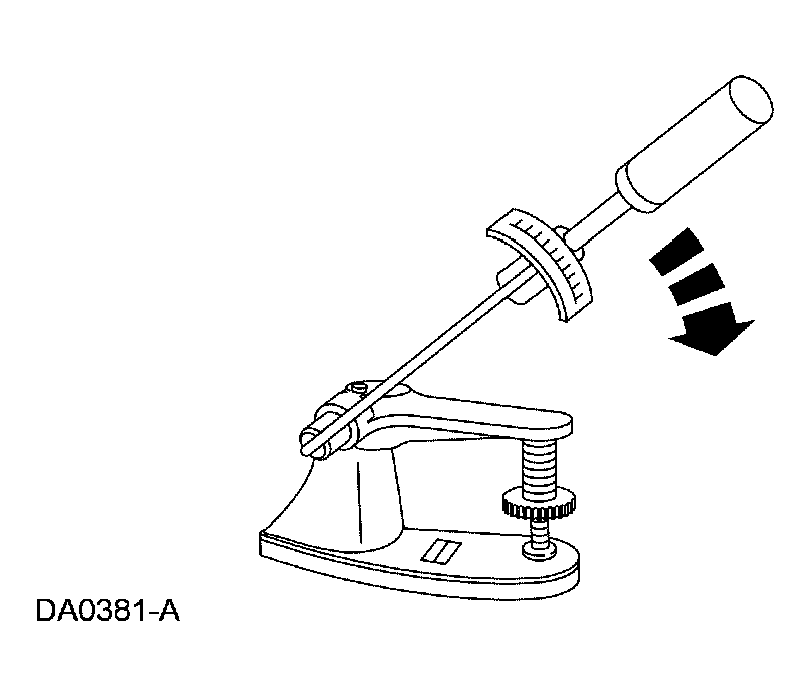

      Fig 1: Measuring Valve Spring Strength
      G03919823Courtesy of FORD MOTOR CO.
