Engine Mount: Notes

SPECIAL TOOL(S)

G04652088Courtesy of FORD MOTOR CO.
 3-Bar Engine Support Kit
303-F072

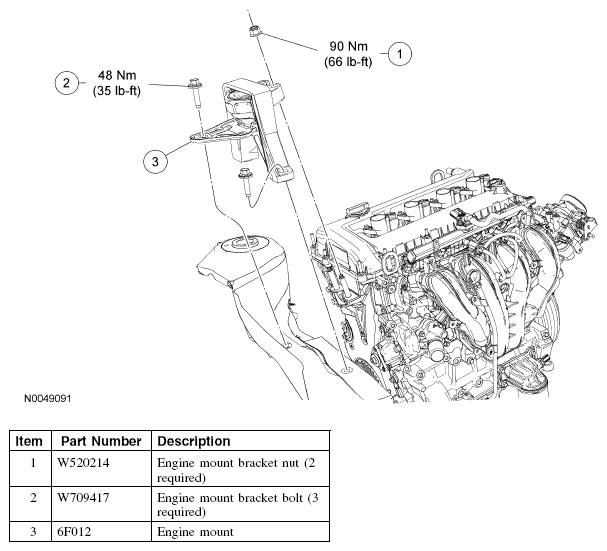

Fig 1: Engine Mount Replacement Components With Torque Specifications
G04652089Courtesy of FORD MOTOR CO.
