Valve Cover: Notes

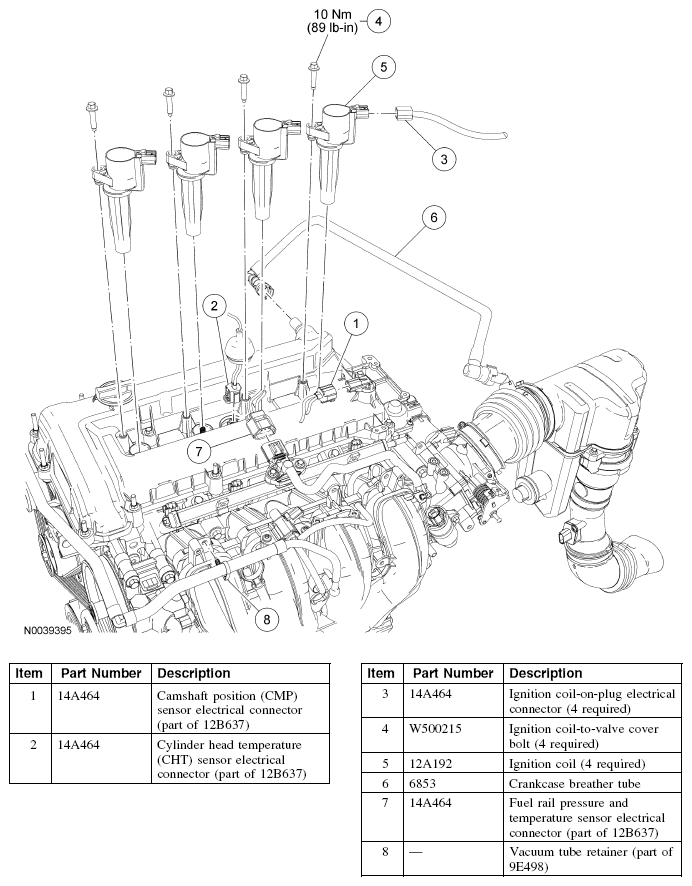

Fig 1: Valve Cover Replacement Components With Torque Specifications (Items 1--8)
G04651912Courtesy of FORD MOTOR CO.

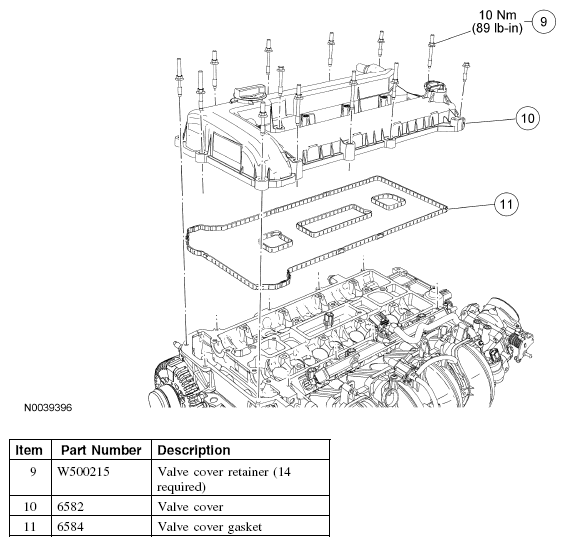

Fig 2: Valve Cover Replacement Components With Torque Specifications (Items 9--11)
G04651913Courtesy of FORD MOTOR CO.
