Transmission Selector Lever: Removal

  1. Remove the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  2. Remove the selector lever cable from the selector.
    1. Shift the selector lever to PARK.
    2. Unclip the selector lever cable.
    3. Unclip the selector lever cable outer sleeve.

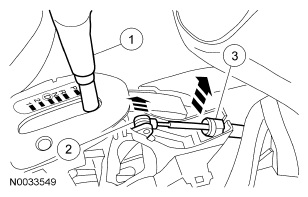

      Fig 1: Removing Selector Lever Cable From Selector Lever
      G04653245Courtesy of FORD MOTOR CO.
  3. Disconnect the selector lever assembly electrical connector.

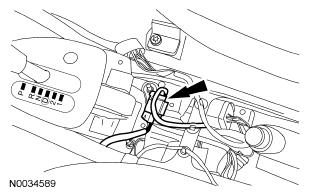

    Fig 2: Locating Selector Lever Assembly Electrical Connector
    G04653246Courtesy of FORD MOTOR CO.
  4. Remove the selector lever assembly.
    • Remove the 4 nuts.

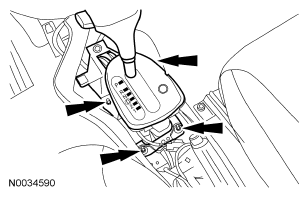

      Fig 3: Locating Nuts Under Selector Lever Assembly
      G04653247Courtesy of FORD MOTOR CO.
