Engine Front Cover: Notes

SPECIAL TOOL(S)

G04651968Courtesy of FORD MOTOR CO.
 Remover, Oil Seal
303-409 (T92C-6700-CH)
G04651969Courtesy of FORD MOTOR CO.
 Installer, Front Oil Seal
303-096 (T74P-6150-A)
G04651970Courtesy of FORD MOTOR CO.
 Steering Pump Pulley Remover
211-016
G04651971Courtesy of FORD MOTOR CO.
 Steering Pump Pulley Installer
211-185
G04651972Courtesy of FORD MOTOR CO.
 Installer Set, Teflon® Seal
211-D207
MATERIALS

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil
CXO-5W20-LSP12 (Canada); or equivalent		 WSS-M2C930-A
Silicone Gasket and Sealant
TA-30		 WSE-M4G323-A4

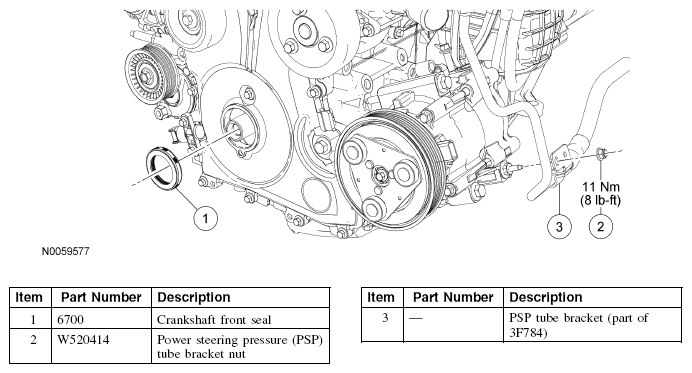

Fig 1: Engine Front Cover Replacement Components With Torque Specifications (Items 1--3)
G04651973Courtesy of FORD MOTOR CO.

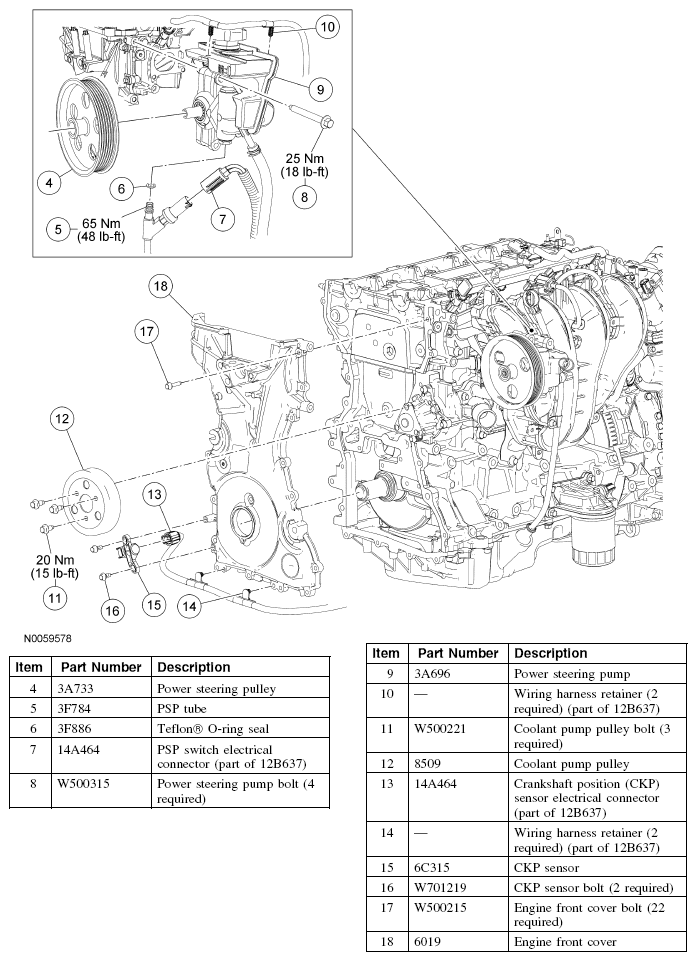

Fig 2: Engine Front Cover Replacement Components With Torque Specifications (Items 4--18)
G04651974Courtesy of FORD MOTOR CO.
