Reverse Clutch: Assembly

Soak the internal spline clutch plates in clean automatic transmission fluid.
Lubricate and install the reverse clutch piston assembly.

Fig 1: Locating Reverse Clutch Piston Assembly
Courtesy of FORD MOTOR CO.
Install the reverse clutch piston return spring.

Fig 2: Locating Reverse Clutch Piston Return Spring
Courtesy of FORD MOTOR CO.
Using the special tool, install the reverse clutch piston return spring retainer and retainer ring.

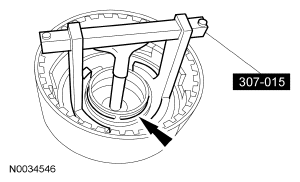

Fig 3: Identifying Special Tool (307-015)
Courtesy of FORD MOTOR CO.
Install the reverse clutch pressure, friction and steel plates.
1. Install the plates.
2. Install the retaining ring.
- Check the clearance. For additional information, refer to SPECIFICATIONS in this article.

  Fig 4: Identifying Retaining Ring And Plates
  Courtesy of FORD MOTOR CO.
