Hydraulic Control Unit (HCU): Notes

MATERIAL

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1)	ESA-M6C25-A or WSS-M6C62-A
High Temperature Nickel Anti-Seize Lubricant XL-2	ESE-M12A4-A

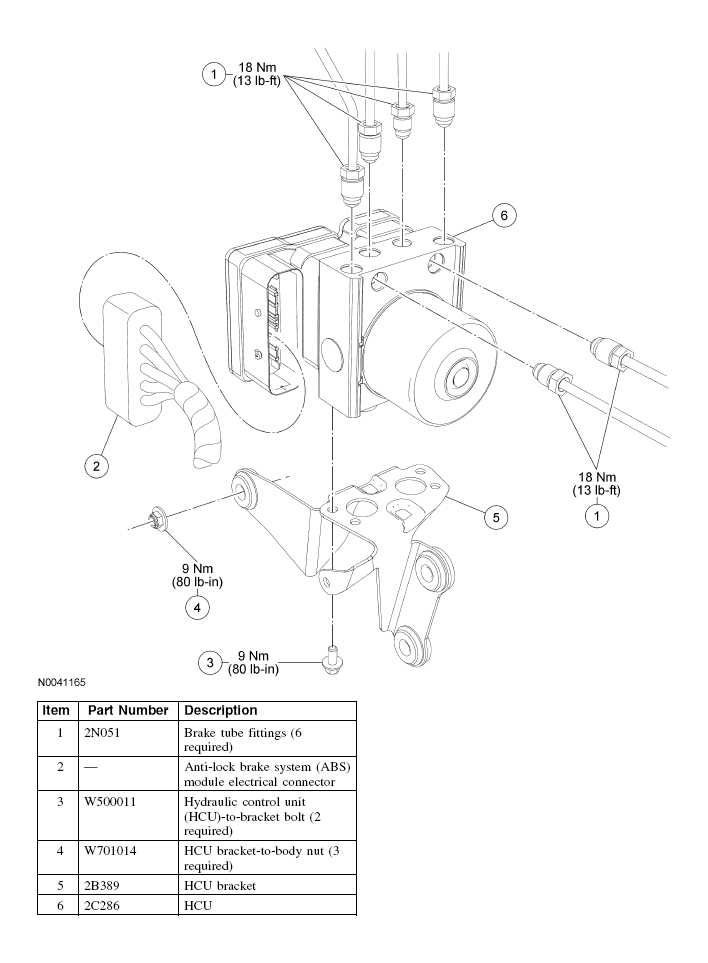

Fig 1: Hydraulic Control Unit (HCU) Components With Torque Specifications

Courtesy of FORD MOTOR CO.
