Starter Motor: Notes

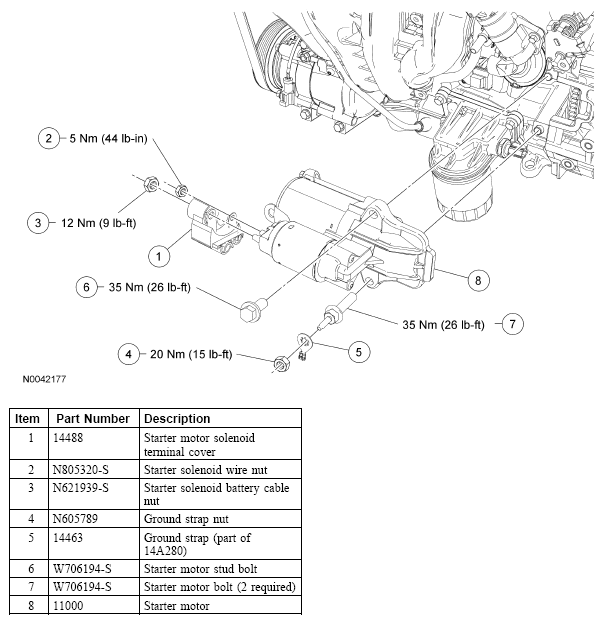

Fig 1: Starter Motor Assembly - Exploded View With Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
