Exhaust System - Exploded View

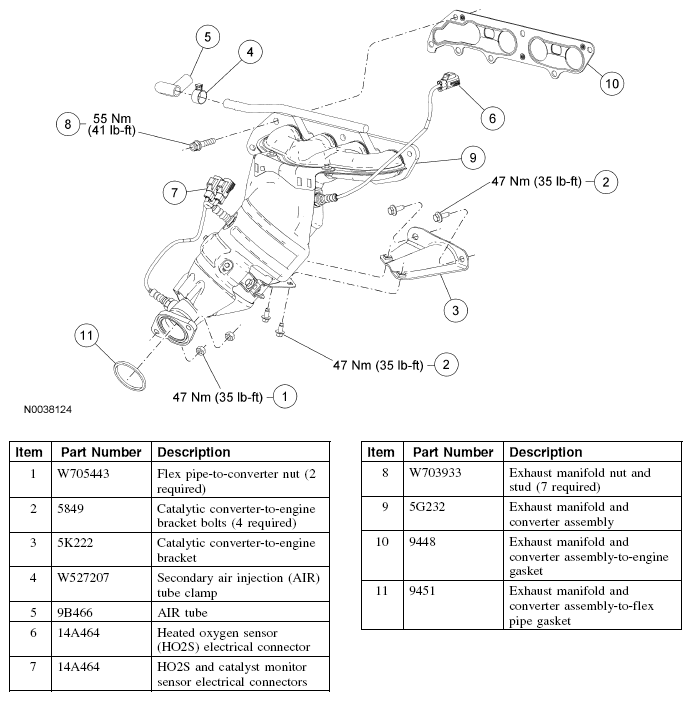

Fig 1: Exploded View Of Exhaust System With Torque Specifications - (Vehicles With 2.0L PZEV Engines)

Courtesy of FORD MOTOR CO.

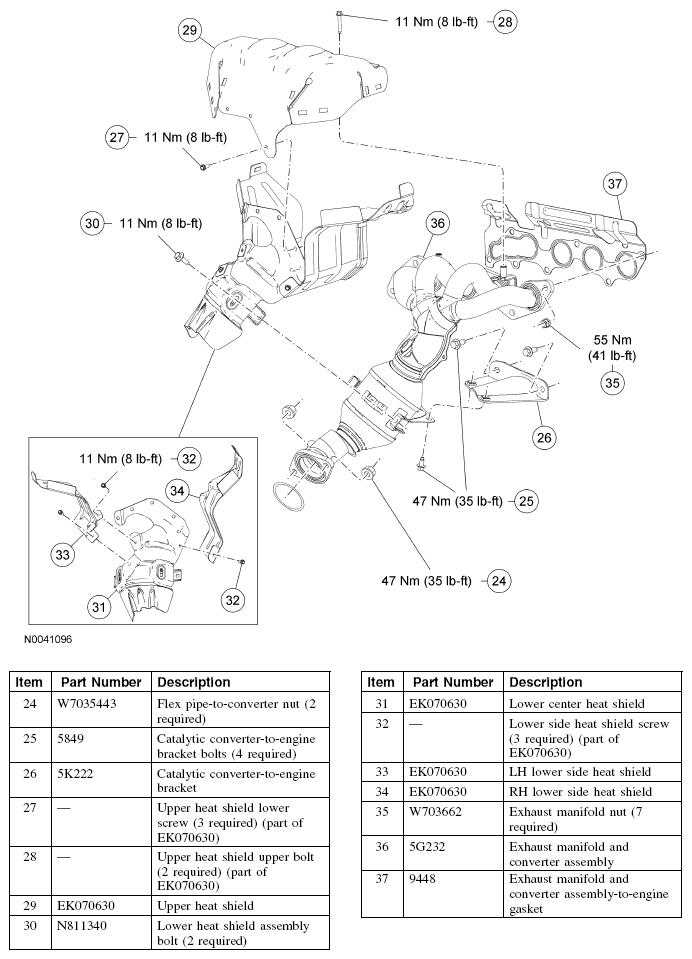

Fig 2: Exploded View Of Exhaust System With Torque Specifications - (Vehicles With 2.0L Non-PZEV Engines)

Courtesy of FORD MOTOR CO.

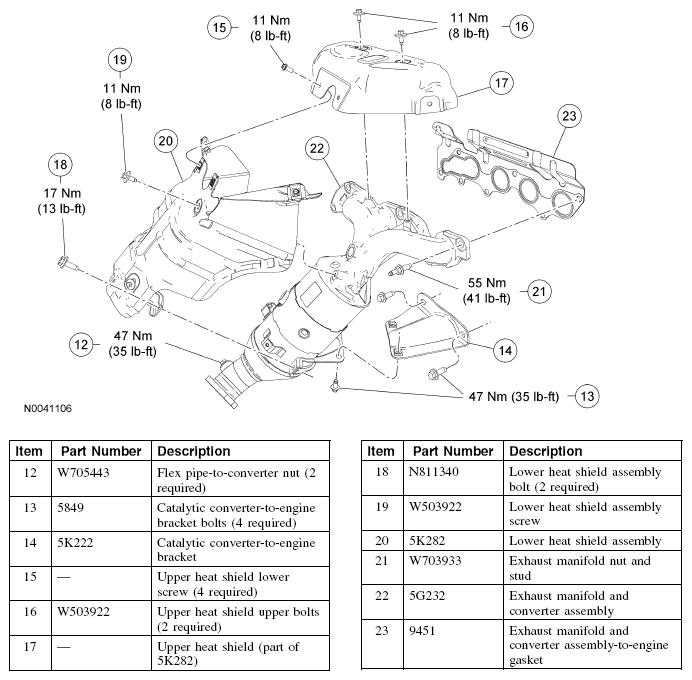

Fig 3: Exploded View Of Exhaust System With Torque Specifications - (Vehicles With 2.3L Engines)

Courtesy of FORD MOTOR CO.

All Vehicles

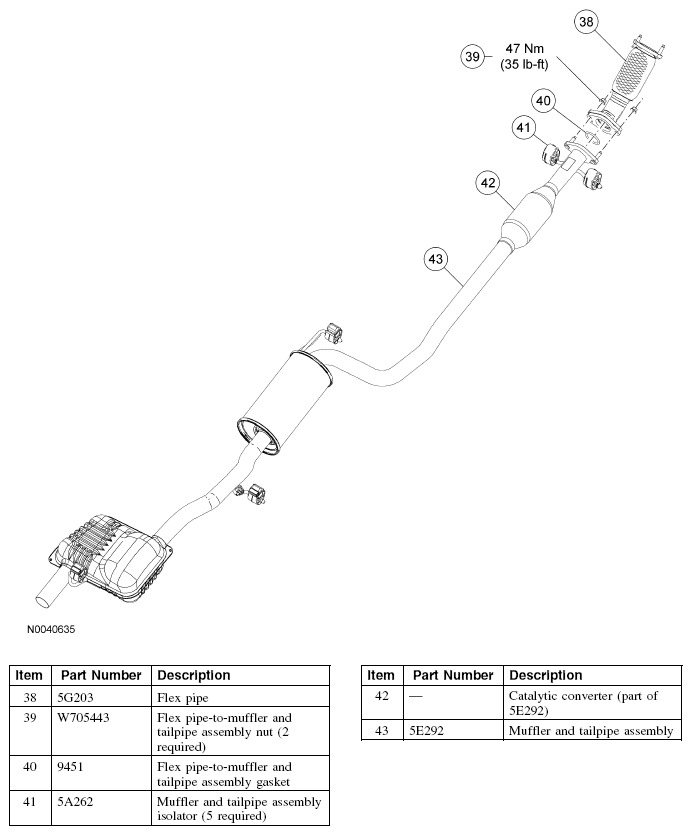

Fig 4: Exhaust Manifold And Catalytic Converter Assembly Replacement Components With Torque Specifications - (All Vehicles)

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures in this article.
