Cylinder Head: Assembly

NOTE: If installing the original valves, make sure the valves are installed in the same position from which they were removed. Coat the valve stems with motor oil.

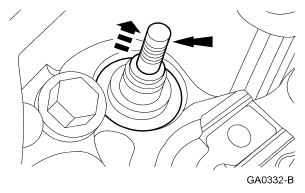

Fig 1: Installing Valve

Courtesy of FORD MOTOR CO.

Install the valves.

NOTE: Use the protector provided with the replacement kit to prevent damage to the valve seals.

Fig 2: Identifying Special Tool (303-470)

Courtesy of FORD MOTOR CO.

Lubricate the valve stems and guides with clean engine oil and, using the special tool, install the valve seals onto the cylinder head valve guides.
Place the valve spring in position over the valve and install the valve spring retainer.
Using the special tools, compress the valve spring and install the valve spring retainer keys.

Fig 3: Compressing Valve Spring Using Special Tools (303-300, 303-350, 303-472)
Courtesy of FORD MOTOR CO.

NOTE: Be sure to install the tappets in the same location from which they were removed.

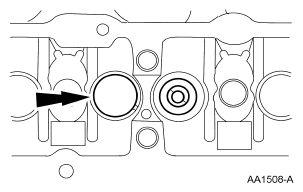

Fig 4: Locating Tappets

Courtesy of FORD MOTOR CO.

Install the 16 tappets.
Install a new CHT sensor.
- Tighten to 12 Nm (9 lb-ft).

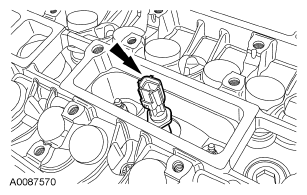

  Fig 5: Locating CHT Sensor
  Courtesy of FORD MOTOR CO.
Install the spark plugs.
- Tighten to 12 Nm (9 lb-ft).

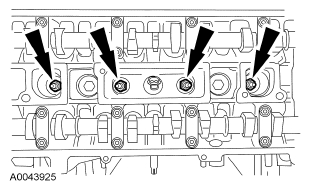

  Fig 6: Locating Spark Plugs
  Courtesy of FORD MOTOR CO.
Install the EGR tube.
- Tighten to 55 Nm (41 lb-ft).

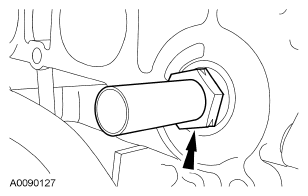

  Fig 7: Locating EGR Tube
  Courtesy of FORD MOTOR CO.
Install the EGR valve, gasket and 2 bolts.
- Tighten to 20 Nm (15 lb-ft).

  Fig 8: Locating EGR Valve And Bolts
  Courtesy of FORD MOTOR CO.

NOTE: One lifting eye shown, other lifting eye similar.

Install the 2 lifting eyes and the bolts.
- Tighten to 45 Nm (33 lb-ft).

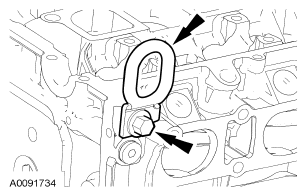

  Fig 9: Locating Lifting Eyes And Bolts
  Courtesy of FORD MOTOR CO.
