Cylinder Head: Notes

SPECIAL TOOL(S)

G04652049Courtesy of FORD MOTOR CO.
 Alignment Plate, Camshaft
303-465 (T94P-6256-CH)
MATERIALS

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil
CXO-5W20-LSP12 (Canada); or equivalent		 WSS-M2C930-A
Silicone Gasket Remover ZC-30 -
Motorcraft Metal Surface Prep
ZC-31		 -
Silicone Gasket and Sealant
TA-30		 WSE-M4G323-A4

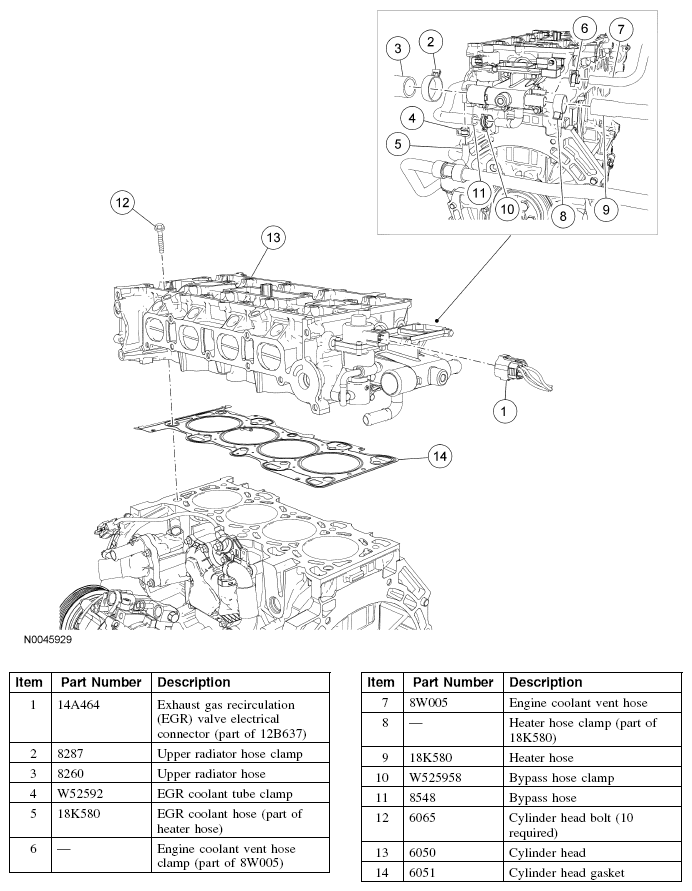

Fig 1: Identifying Cylinder Head Components
G04652050Courtesy of FORD MOTOR CO.
