Removal and Installation

Remove the expansion tank bolt.
- To install, tighten to 10 Nm (89 lb-in).

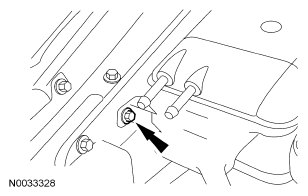

  Fig 1: Locating Expansion Tank Bolt
  Courtesy of FORD MOTOR CO.
Lift the coolant expansion tank out of the retainer and position it aside.

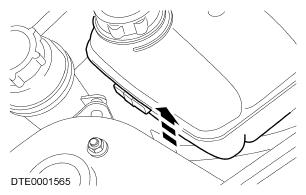

Fig 2: Removing Coolant Expansion Tank
Courtesy of FORD MOTOR CO.
Install the special tool.

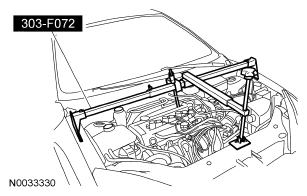

Fig 3: Identifying Special Tool (303-F072)
Courtesy of FORD MOTOR CO.
Remove the 2 engine mount nuts.
- To install, tighten to 90 Nm (66 lb-ft).
Remove the 3 bolts and the engine mount.
- To install, tighten to 48 Nm (35 lb-ft).
To install, reverse the removal procedure.
