Timing Drive Components: Removal

CAUTION: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction, using diamond washers between the flange faces on each part. For that reason, the crankshaft sprocket and the pulley are fitted together by friction, using diamond washers between the flange faces on each part. For that reason, the crankshaft sprocket is also unfastened if you loosen the pulley bolt. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.
CAUTION: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.
  1. Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER  in this article.
  2. Remove the timing chain tensioner.
    1. Compress the timing chain tensioner and insert a paper clip into the hole.
    2. Remove the bolts and timing chain tensioner.

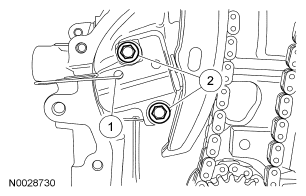

      Fig 1: Identifying Paper Clip Into Hole And Bolts
      G04651988Courtesy of FORD MOTOR CO.
  3. Remove the RH timing chain guide.
    Fig 2: Locating RH Timing Chain Guide
    G03897778Courtesy of FORD MOTOR CO.
  4. Remove the timing chain.
    Fig 3: View Of Timing Chain
    G03897779Courtesy of FORD MOTOR CO.
  5. Remove the bolts and the LH timing chain guide.
    Fig 4: Identifying Bolts And LH Timing Chain Guide
    G03897780Courtesy of FORD MOTOR CO.
    6. CAUTION: Do not rely on the Camshaft Alignment Plate to prevent camshaft rotation. Damage to the tool or the camshaft can occur.
  6. If necessary, remove the bolts and the camshaft sprockets.
    • Use the flats on the camshaft to prevent camshaft rotation.
      Fig 5: Locating Cam Holding Area And Sprocket Bolt
      G03897781Courtesy of FORD MOTOR CO.
