Safety Belt Buckle - Front: Notes

NOTE: RH shown, LH similar.

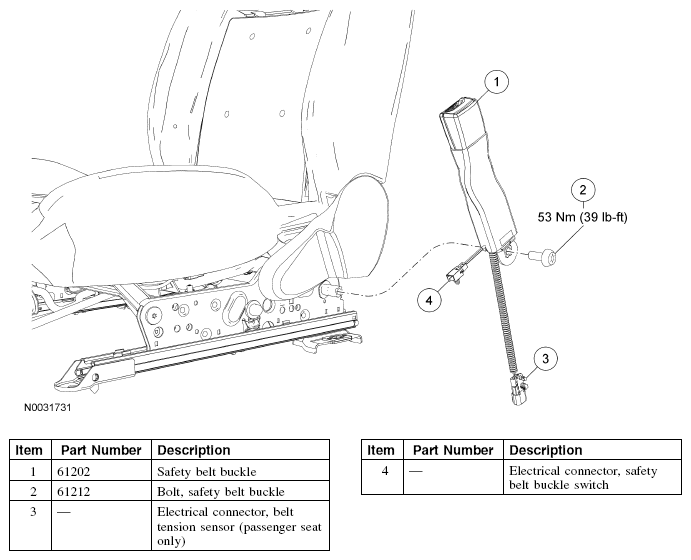

Fig 1: Front Safety Belt Buckle Replacement Components With Torque Specifications
G04654783Courtesy of FORD MOTOR CO.
