Power Steering Pump - Late Build: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.

Installer Set, Telfon® Seal
211-D207 (D90P-3517-A)

MATERIAL

Item	Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada)	MERCON®

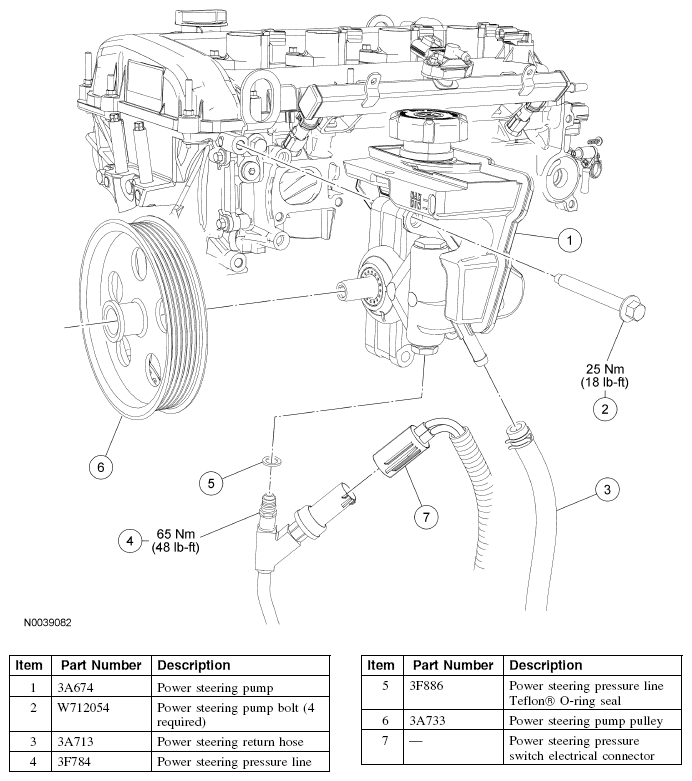

Fig 1: Power Steering Pump -- Late Build Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
