Steering Gear: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Remover, Tie-Rod End 211-001 (Tool-3290-D)
Courtesy of FORD MOTOR CO.	Alignment Pins, Subframe 502-002 (T944P-2100-AH)

MATERIAL

Item	Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada)	MERCON®

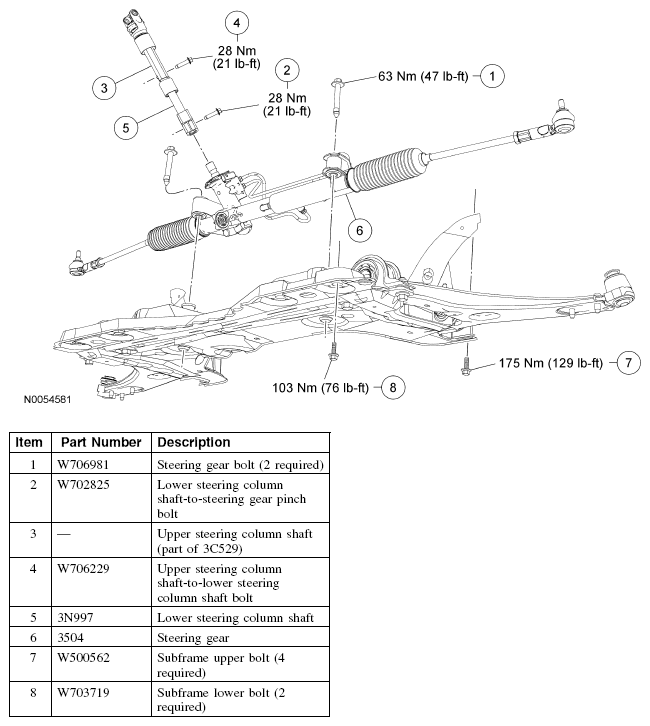

Fig 1: Steering Gear Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
