Steering Gear Boot: Notes

SPECIAL TOOL(S)

	Installer, Constant Velocity Joint Boot Clamp 205-343 (T95P-3514-A)
	Remover, Tie-Rod End 211-001 (Tool-3290-D)

MATERIAL

Item	Specification
Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada)	ESA-M1C75-B

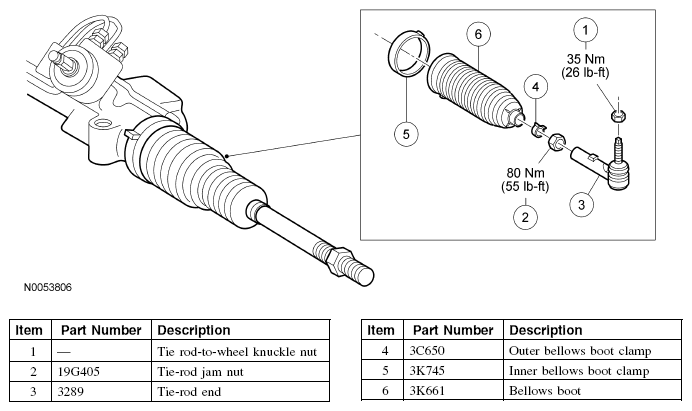

Fig 1: Identifying Steering Gear Boot Components

Courtesy of FORD MOTOR CO.
