Clutch Controls: Notes

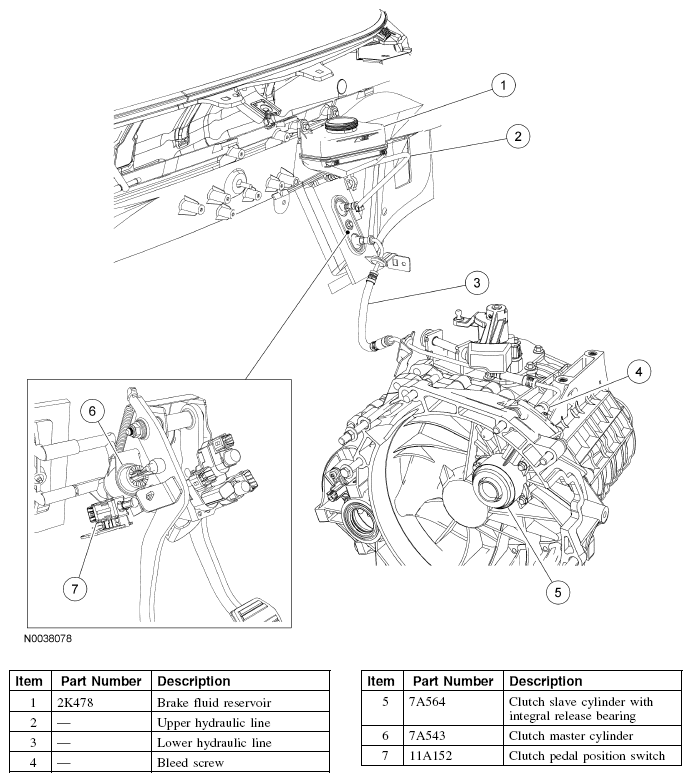

Fig 1: Identifying Clutch Mechanism Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
