External Controls

The MTX-75 manual transaxle is equipped with a cable gearshift mechanism. The gearshift system includes:

• Gearshift cables
  • shift cable
  • selector cable
• Gearshift lever

The shift cable has white ends and the selector cable has black ends. The selector cable (black) does not have an adjustment. The reverse release "trigger" is not used.

Shift Controls - Early Production Vehicles

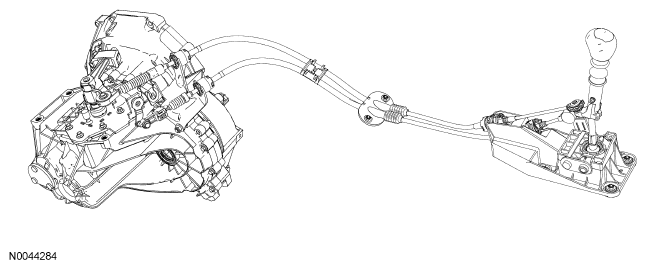

Fig 1: Identifying Shift Controls - Early Production Vehicles

Shift Controls - Late Production Vehicles

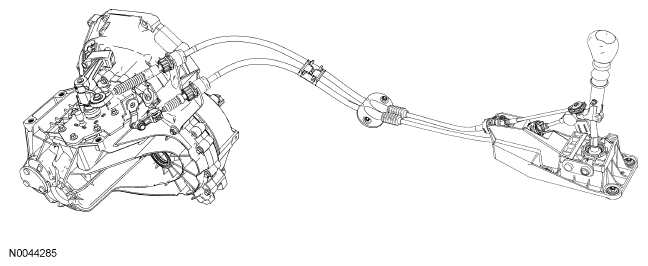

Fig 2: Identifying Shift Controls - Late Production Vehicles
