Vehicle Certification (VC) Label: Notes

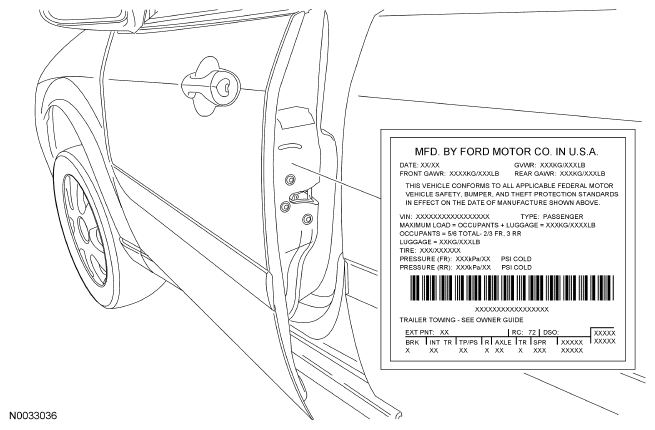

Fig 1: Identifying Vehicle Certification (VC) Label Locator

Courtesy of FORD MOTOR CO.

The vehicle certification (VC) label contains the manufacturer name, the month and year of manufacture, the certification statement, and the VIN. It also includes gross vehicle weight ratings (GVWR) and tire information.

Fig 2: Vehicle Weight Ratings (GVWR) And Tire Information Label

Courtesy of FORD MOTOR CO.

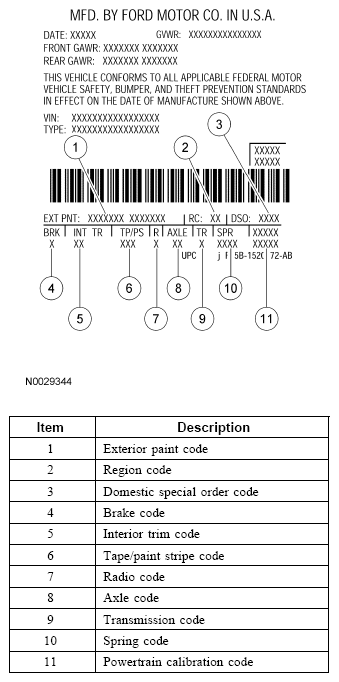

Fig 3: Identifying Paint Code

Courtesy of FORD MOTOR CO.

The first set of paint code numbers/letters indicate the vehicle primary body color. The second set of letters/numbers (if applicable) indicate a two-tone or accent body color. All paint codes are a base coat/clear coat finish.

CX - Dark Shadow Gray
D6 - Screaming Yellow
DV - Light Tundra
E4 - Vermilion
G3 - Pueblo Gold
JL - Dark Toreador Red
S1 - Sonic Blue
TS - Silver Frost
UA - Ebony
YZ - Oxford White

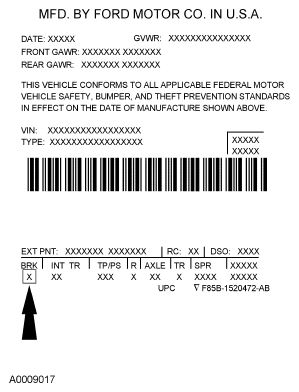

Fig 4: Identifying Brake Codes Label

Courtesy of FORD MOTOR CO.

2 - 4-wheel anti-lock brakes
3 - Traction control brake system
5 - 4-wheel anti-lock with Traction control brake system

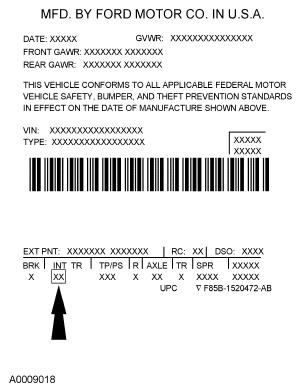

Fig 5: Identifying Interior Trim Codes Label

Courtesy of FORD MOTOR CO.

The interior trim codes are listed below. The first digit listed indicates the seat and fabric style. The second digit listed indicates the interior trim color.
