Cylinder Head: Disassembly

NOTE: One lifting eye shown, other lifting eye similar.

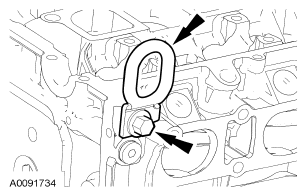

Fig 1: Locating Lifting Eyes And Bolts

Courtesy of FORD MOTOR CO.

Remove the bolts and the 2 lifting eyes.
Remove and discard the cylinder head temperature (CHT) sensor.

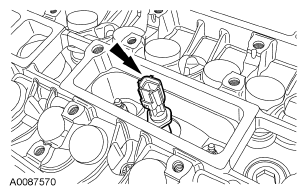

Fig 2: Locating Cylinder Head Temperature Sensor
Courtesy of FORD MOTOR CO.
Remove the bolts and the exhaust gas recirculation (EGR) valve.

Fig 3: Locating Exhaust Gas Recirculation Valve And Bolts
Courtesy of FORD MOTOR CO.
Remove the EGR tube.

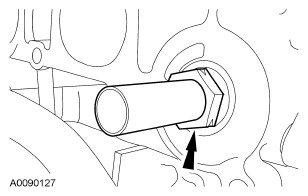

Fig 4: Locating EGR Tube
Courtesy of FORD MOTOR CO.
Remove the spark plugs.

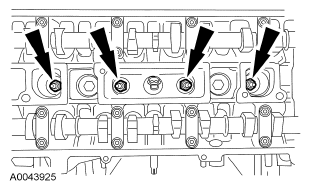

Fig 5: Locating Spark Plugs
Courtesy of FORD MOTOR CO.

CAUTION: Note the location of the tappets prior to removal.

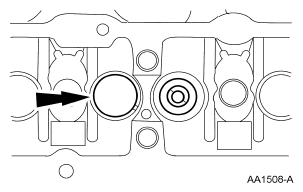

Fig 6: Locating Tappets

Courtesy of FORD MOTOR CO.

Remove the 16 tappets.
Using the special tools, compress the valve spring and remove the valve spring retainer keys, the valve spring retainers and the valve springs.

Fig 7: Compressing Valve Spring Using Special Tools (303-300, 303-350, 303-472)
Courtesy of FORD MOTOR CO.
Inspect the valve spring, valve spring retainer and valve spring retainer key. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .

CAUTION: Note the location of the valves if they are to be reused.

NOTE: Mark each valve if the original valves are to be used.

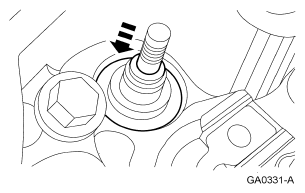

Fig 8: Removing Valve

Courtesy of FORD MOTOR CO.

Remove the valves.
Using the special tools, remove and discard the valve seals.

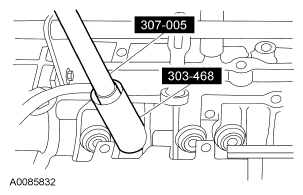

Fig 9: Identifying Special Tools (303-468, 307-005)
Courtesy of FORD MOTOR CO.
Inspect the valves. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION . Install new parts, as necessary.
