Selector Lever Knob: Installation

    CAUTION: When installing the selector lever knob, make sure the wiring harness is positioned forward and is centered on the shift lever shaft, or damage to the shift lever or wiring harness will occur.
    Fig 1: Locating Wiring Harness On Selector Lever
    G04653257Courtesy of FORD MOTOR CO.
  1. Position the selector lever knob onto the lever and route the wiring harness through the transmission range indicator.
  2. Slide the selector lever knob down the shaft and install a new screw.

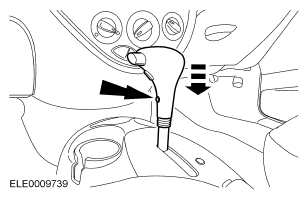

    Fig 2: Sliding Selector Lever Knob Down
    G04653258Courtesy of FORD MOTOR CO.
    3. NOTE: Selector lever assembly shown removed.

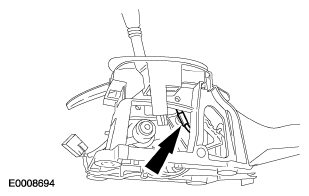

    Fig 3: Locating O/D Switch Electrical Connector
    G04653259Courtesy of FORD MOTOR CO.
  3. Connect the O/D switch electrical connector.
  4. Install the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
