Automatic Transmission: Assembly: Transaxle: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Alignment Tool, Transmission Range Sensor 307-415
Courtesy of FORD MOTOR CO.	Handle, Torque Converter 307-091 (T81P-7902-C)
Courtesy of FORD MOTOR CO.	Installer, Differential Bearing Cup 205-118 (T77F-4222-A)
Courtesy of FORD MOTOR CO.	Installer, Differential Fluid Seal 307-256 (T92P-77000-FH)
Courtesy of FORD MOTOR CO.	Select Gauge, Transmission Band 307-416
Courtesy of FORD MOTOR CO.	Shim Gauge, Differential/Transfer Gear Bearing 307-417
Courtesy of FORD MOTOR CO.	Installer, Axle Oil Seal 205-259 (T87P-3254-A)
Courtesy of FORD MOTOR CO.	Holding Tool, Final Drive Input Gear 307-413
Courtesy of FORD MOTOR CO.	Mounting Bracket, Transmission 307-410
Courtesy of FORD MOTOR CO.	Installer, Drive Pinion Bearing Cup 205-024 (T67P-4616-A)
Courtesy of FORD MOTOR CO.	Installer, Transfer Gear Bearing Cup 307-418
Courtesy of FORD MOTOR CO.	Shim Selection Set 308-164 (T88C-77000-JF)
Courtesy of FORD MOTOR CO.	Plate, Bearing/Oil Seal 205-090 (T75L-1165B)
Courtesy of FORD MOTOR CO.	Installer, Drive Pinion Bearing Cone 205-005 (T53T-4621-C)
Courtesy of FORD MOTOR CO.	Adapter for 303-224 (Handle) 205-153 (T80T-4000-W)
Courtesy of FORD MOTOR CO.	Installer, Output Shaft Seal 307-572
Courtesy of FORD MOTOR CO.	Socket, Final Drive Input Nut 307-414
Courtesy of FORD MOTOR CO.	Shim Selection Set 308-161 (T88C-77000-C)
Courtesy of FORD MOTOR CO.	Wrench Guide Plate 307-420
Courtesy of FORD MOTOR CO.	Retainer, Torque Converter 307-346 (T97T-7902-A)

MATERIALS

Item	Specification
Ultra Silicone Sealant TA-29	-
Thread Sealant with PTFE TA-24	WSK-M2G350-A2

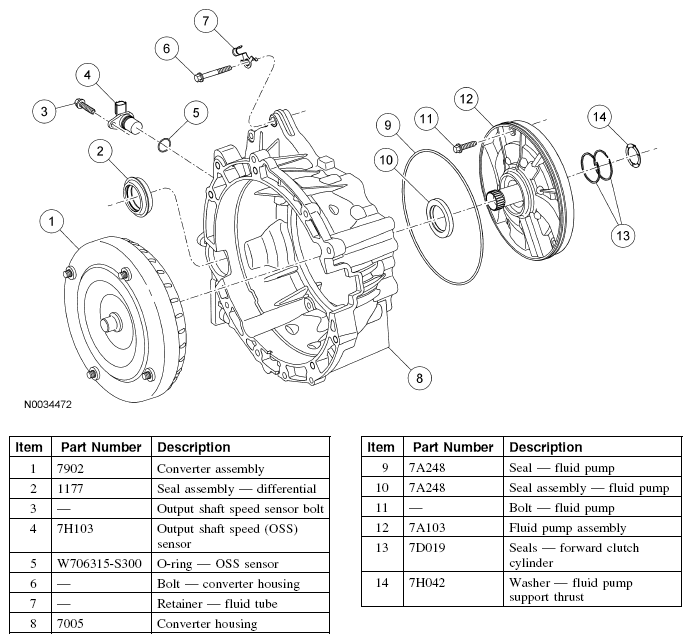

Fig 1: Identifying Converter Housing With Converter Assembly And Fluid Pump Assembly Components

Courtesy of FORD MOTOR CO.

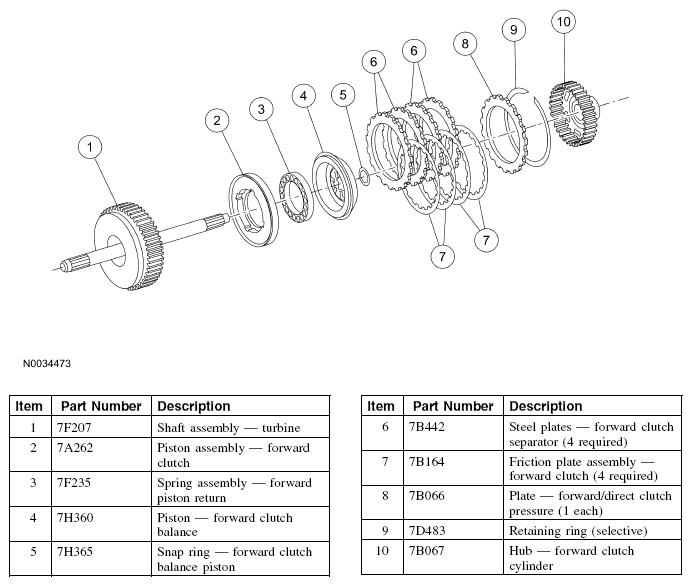

Fig 2: Exploded View Of Forward Clutch

Courtesy of FORD MOTOR CO.

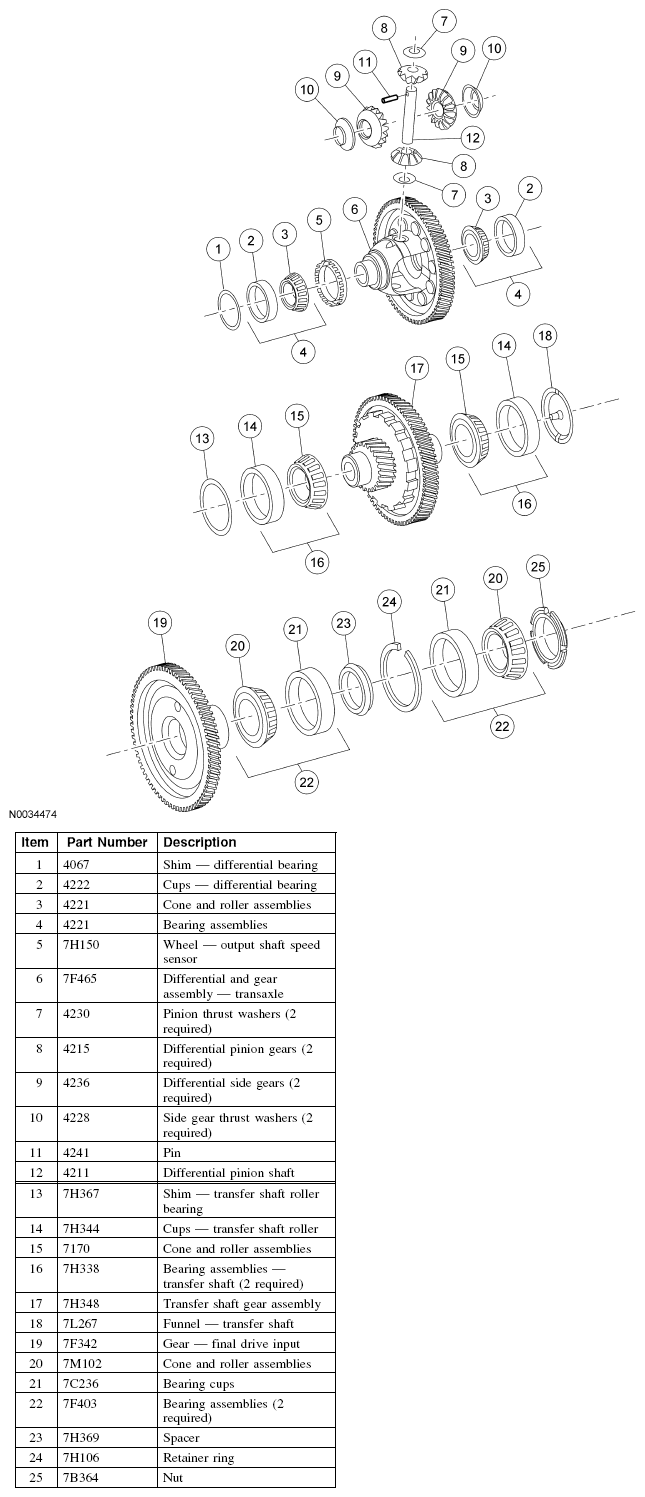

Fig 3: Exploded View Of Differential Assembly And Final Drive Input

Courtesy of FORD MOTOR CO.

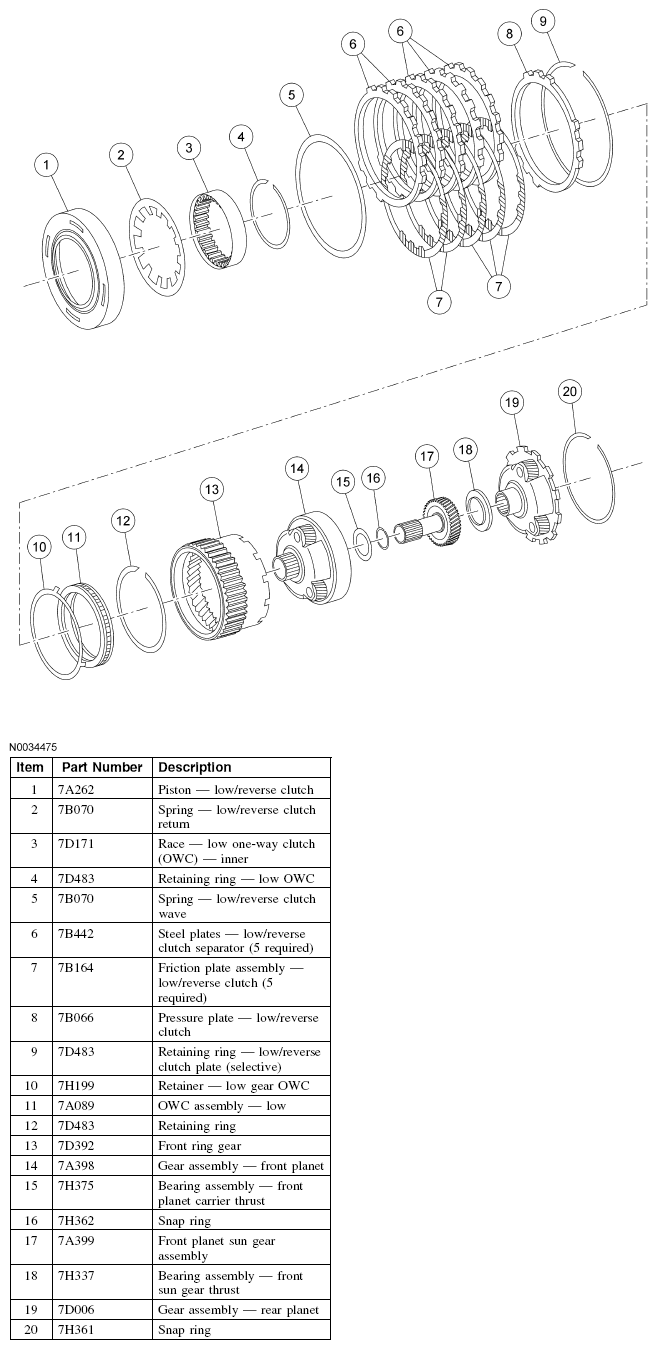

Fig 4: Exploded View Of Clutches And Planet Gears

Courtesy of FORD MOTOR CO.

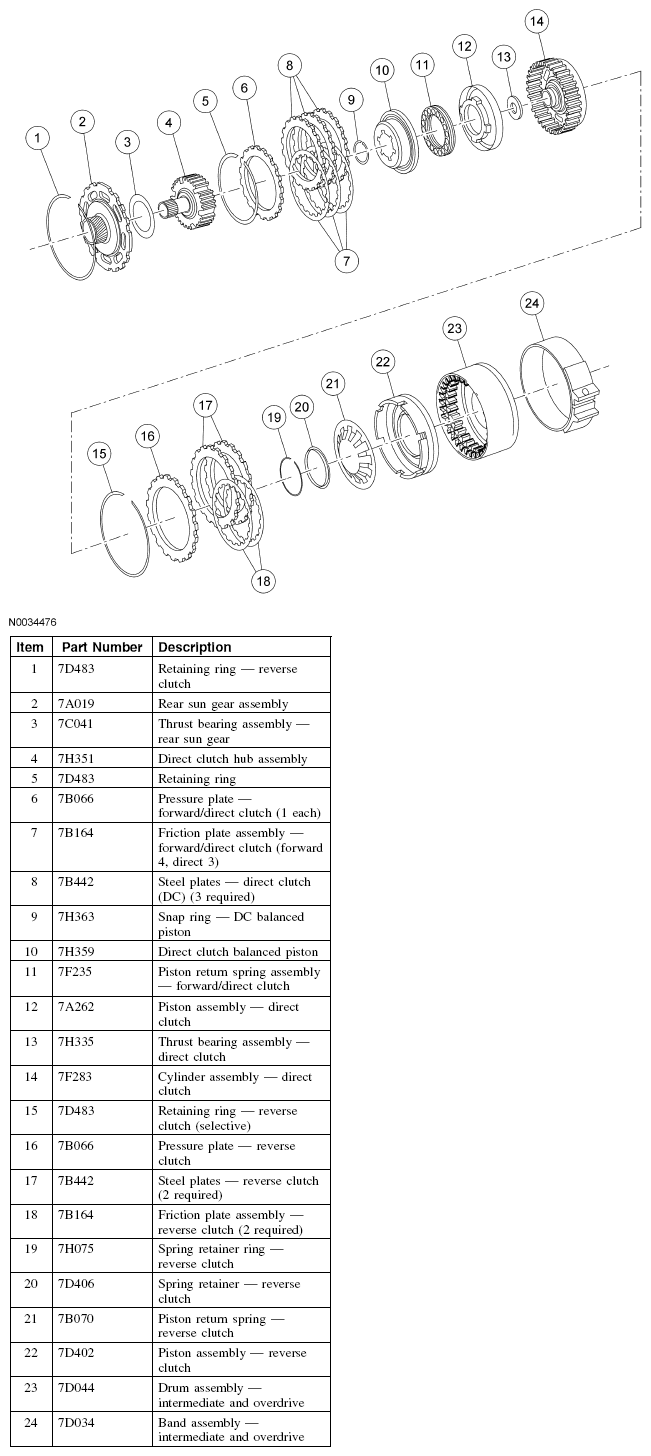

Fig 5: Exploded View Of Clutches And Band

Courtesy of FORD MOTOR CO.

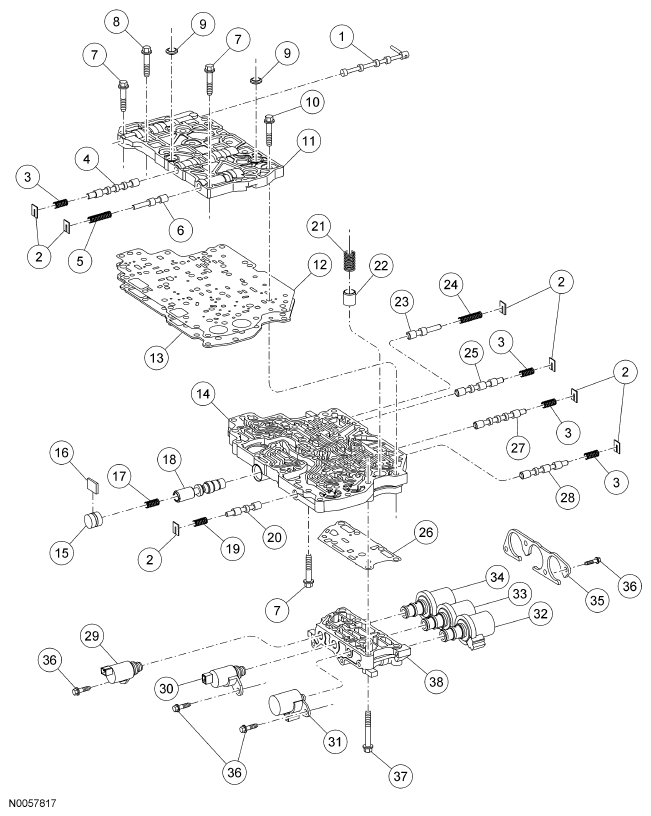

Fig 6: Exploded View Of Main Control Assembly

Courtesy of FORD MOTOR CO.

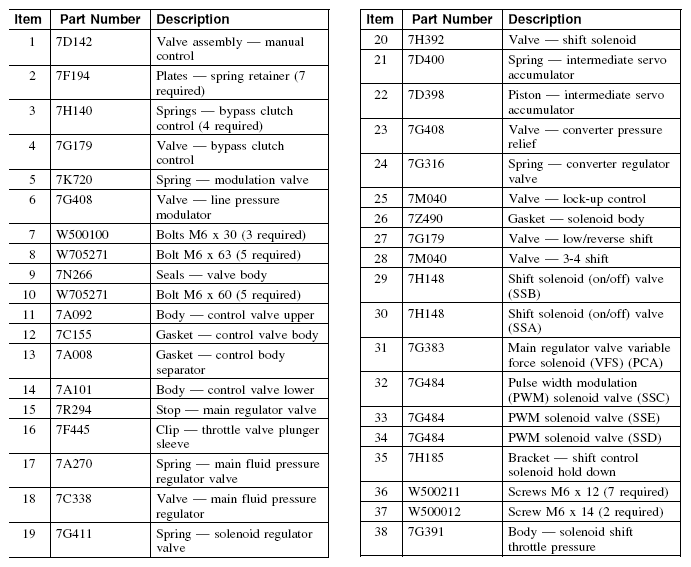

Fig 7: Main Control Assembly Components Description Chart

Courtesy of FORD MOTOR CO.

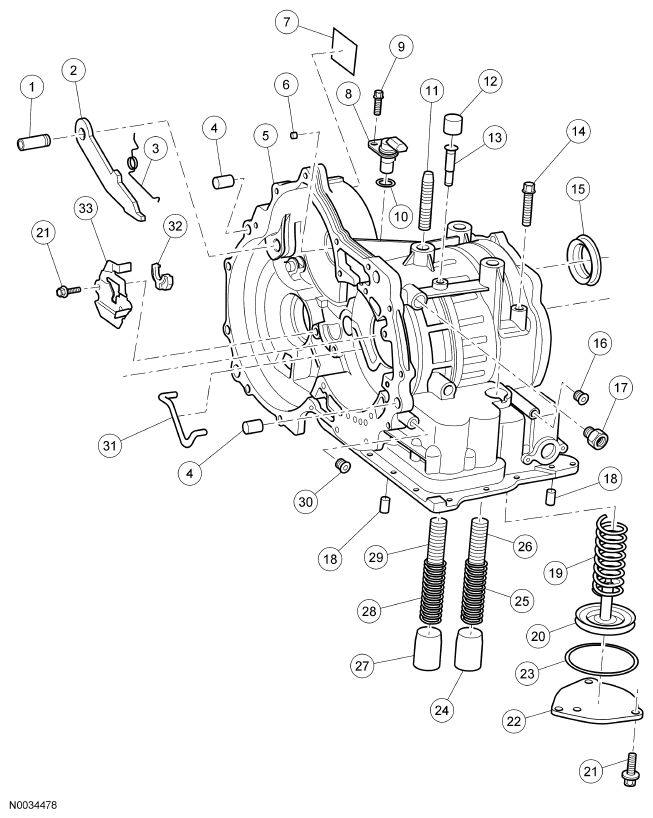

Fig 8: Exploded View Of Transaxle Case Assembly

Courtesy of FORD MOTOR CO.

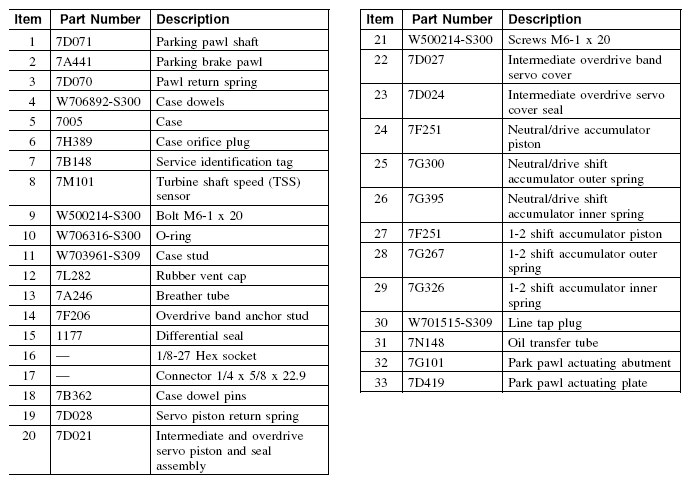

Fig 9: Transaxle Case Assembly Components Description Chart

Courtesy of FORD MOTOR CO.

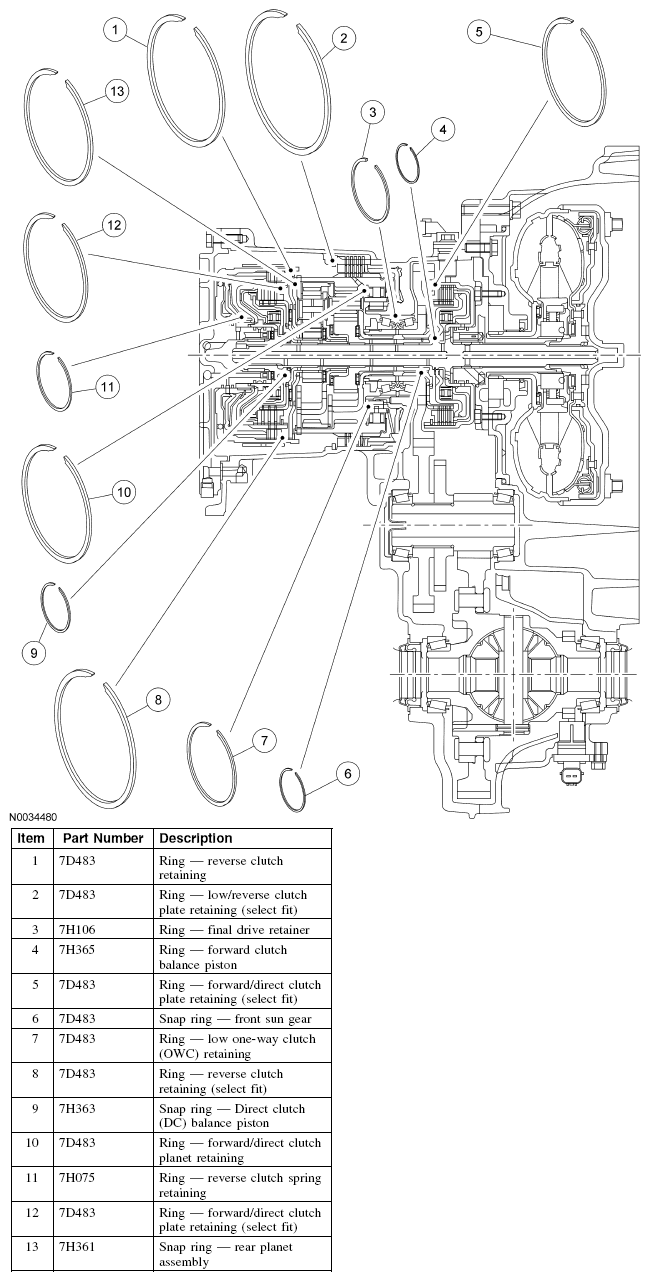

Fig 10: Identifying Snap Rings Components Location

Courtesy of FORD MOTOR CO.
