Overview Transmission Control

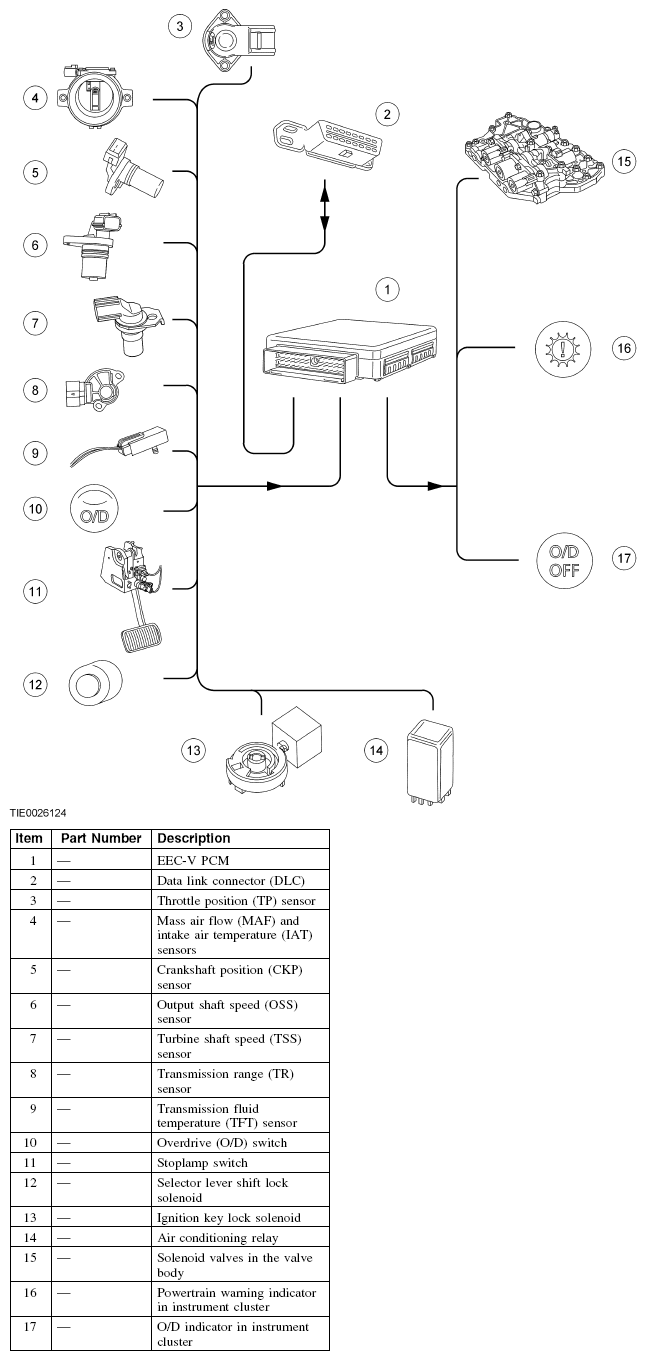

Fig 1: Identifying Overview Transmission Control Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
