Direct Clutch: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Compressor, Spring Washer 307-209
Courtesy of FORD MOTOR CO.	Dial Indicator Gauge With Holding Fixture 100-002 (TOOL-4201-C)

MATERIALS

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

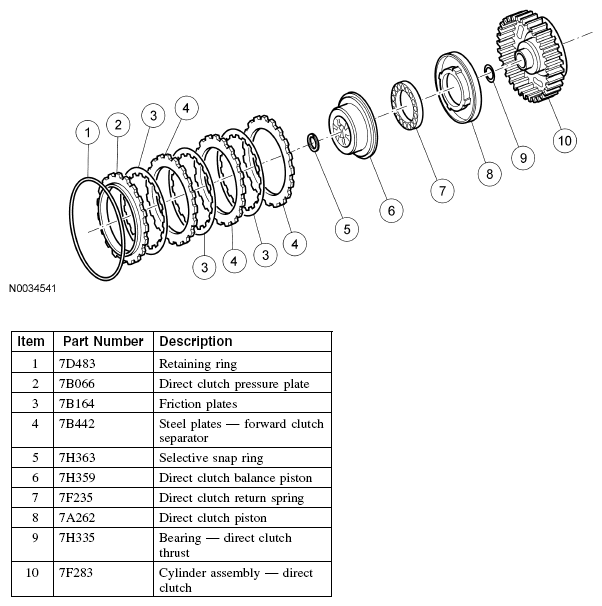

Fig 1: Identifying Direct Clutch Components

Courtesy of FORD MOTOR CO.
