Main Control Valve Body: Assembly

NOTE: The top side of the separator plate has a bonded gasket.

NOTE: The separator gasket goes on the bottom side.

NOTE: Inspect the main control valve body.

Install new control valve body plate assembly and separator gaskets.

Fig 1: Locating Control Valve Body Plate
Courtesy of FORD MOTOR CO.

NOTE: Do not fully tighten the bolts at this stage.

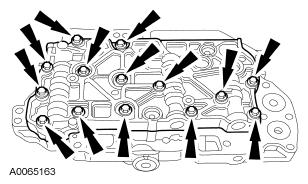

Assemble the main control valve body and loosely install the bolts.

Fig 2: Locating Main Control Valve Body Bolts
Courtesy of FORD MOTOR CO.

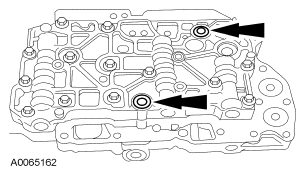

Install the seals.

Fig 3: Locating Seals
Courtesy of FORD MOTOR CO.
Install a new solenoid body gasket.

Fig 4: Locating Solenoid Body Gasket
Courtesy of FORD MOTOR CO.

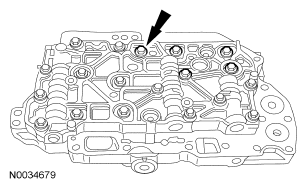

Install the solenoid body and loosely install the bolts.

Fig 5: Locating Solenoid Body Bolts
Courtesy of FORD MOTOR CO.

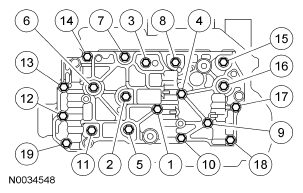

Tighten the solenoid body bolts in the sequence shown.
- Tighten to 9 Nm (80 lb-in).

  Fig 6: Identifying Tightening Sequence For Solenoid Body Bolts
  Courtesy of FORD MOTOR CO.
