Main Control Valve Body: Disassembly

  1. Remove the solenoid body bolts and the solenoid body.

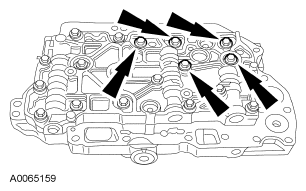

    Fig 1: Locating Solenoid Body Bolts
    G04652977Courtesy of FORD MOTOR CO.
  2. Remove and discard the solenoid body gaskets.
    Fig 2: Locating Solenoid Body Gaskets
    G04652978Courtesy of FORD MOTOR CO.
  3. Remove and discard the seals.

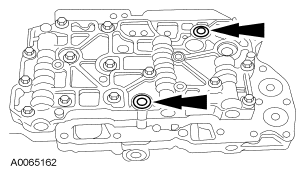

    Fig 3: Locating Seals
    G04652979Courtesy of FORD MOTOR CO.
  4. Disassemble the main control valve body.

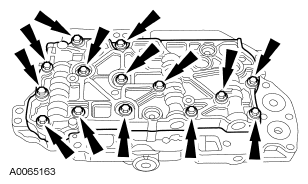

    Fig 4: Locating Main Control Valve Body Bolts
    G04652980Courtesy of FORD MOTOR CO.
