Main Control Valve Body: Notes

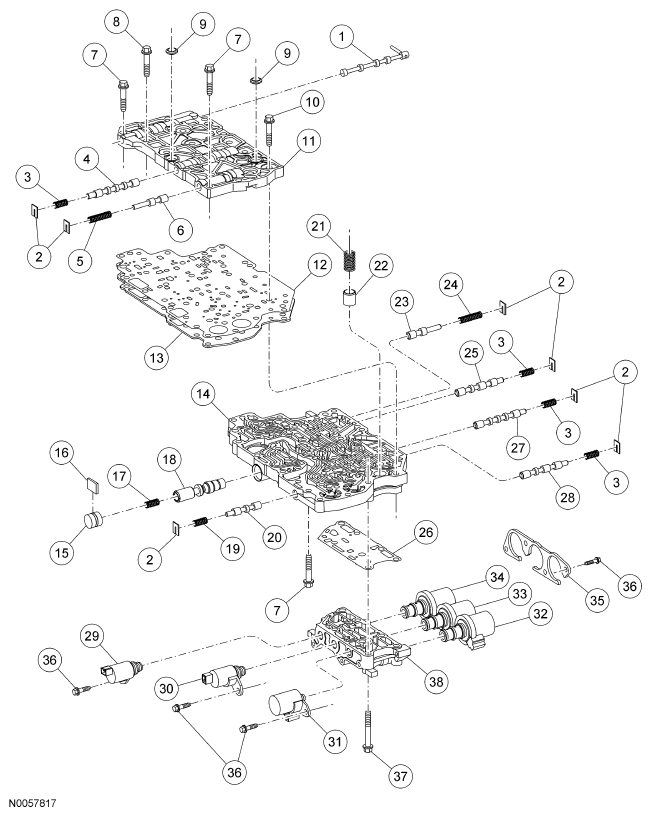

Fig 1: Exploded View Of Main Control Valve Body
G04652975Courtesy of FORD MOTOR CO.

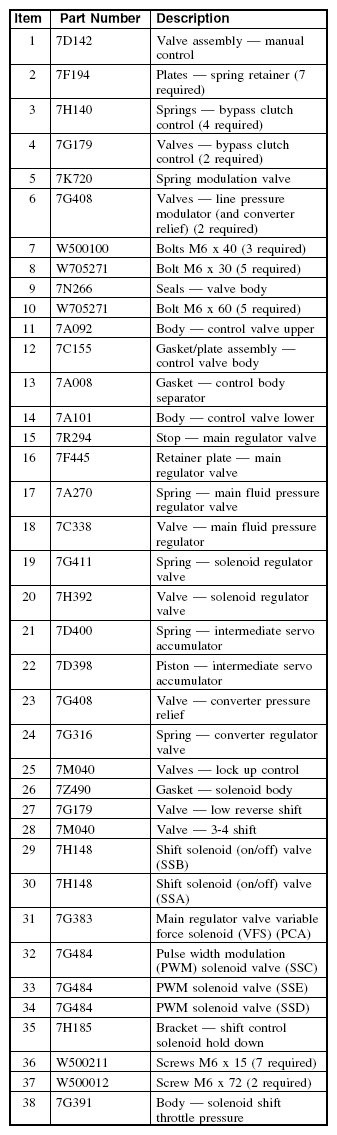

Fig 2: Main Control Valve Body Components Description Chart
G04652976Courtesy of FORD MOTOR CO.
